Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Component Tests and General Diagnostics >> Front Door Lock Assembly LH (Actuator) Check

Front Door Lock Assembly LH (Actuator) Check

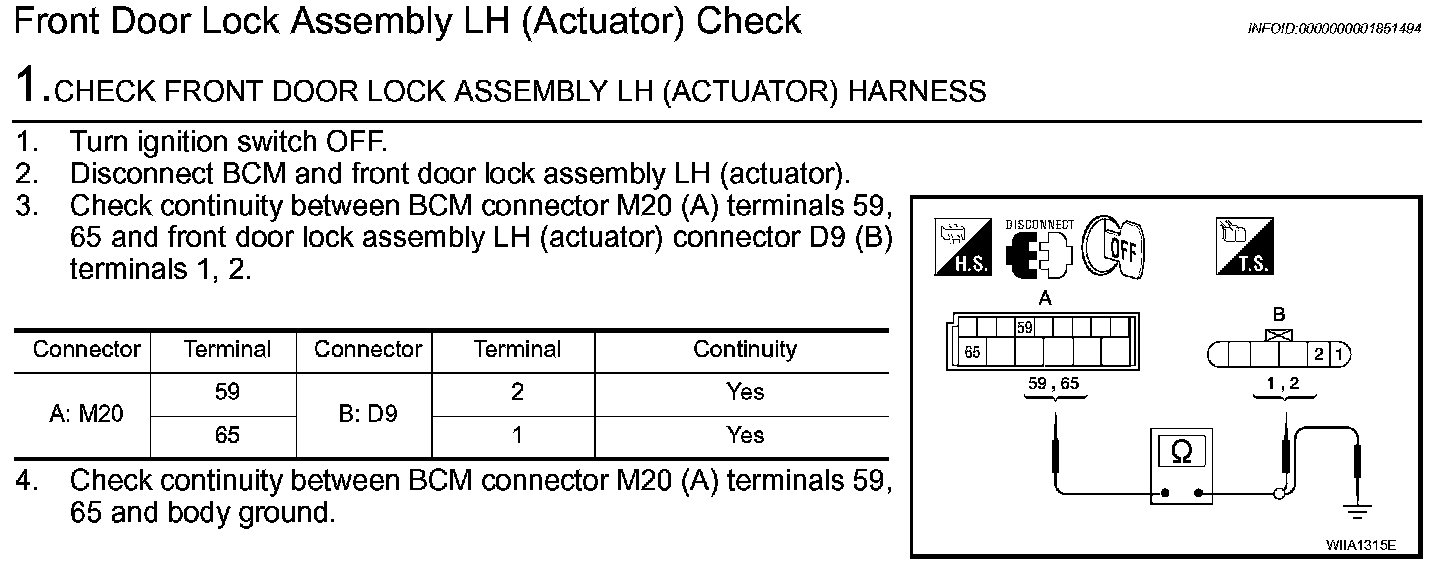

Step 1:

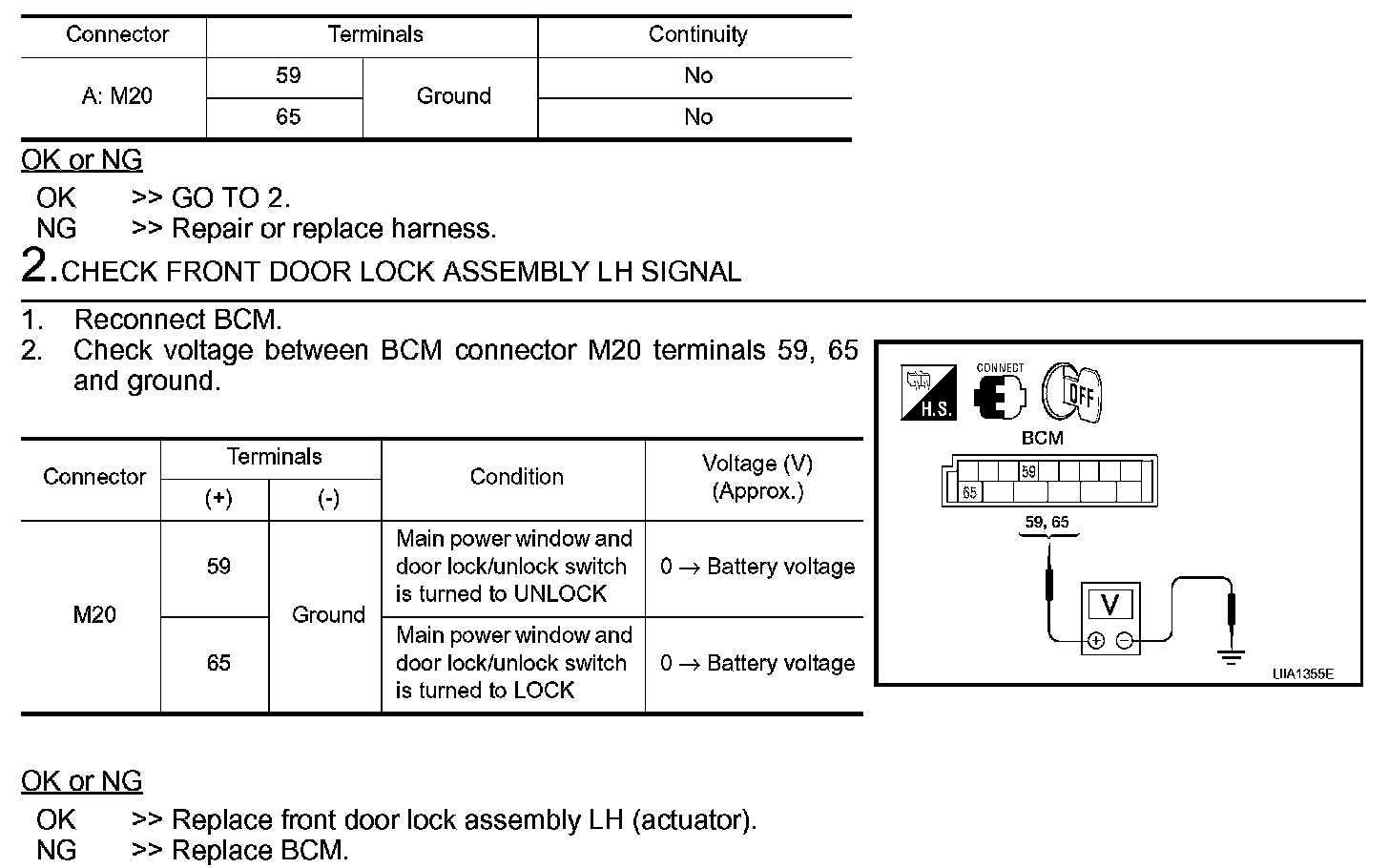

Step 1 (Continued)-2:
