Door Lock and Unlock Switch Check
Door Lock and Unlock Switch Check

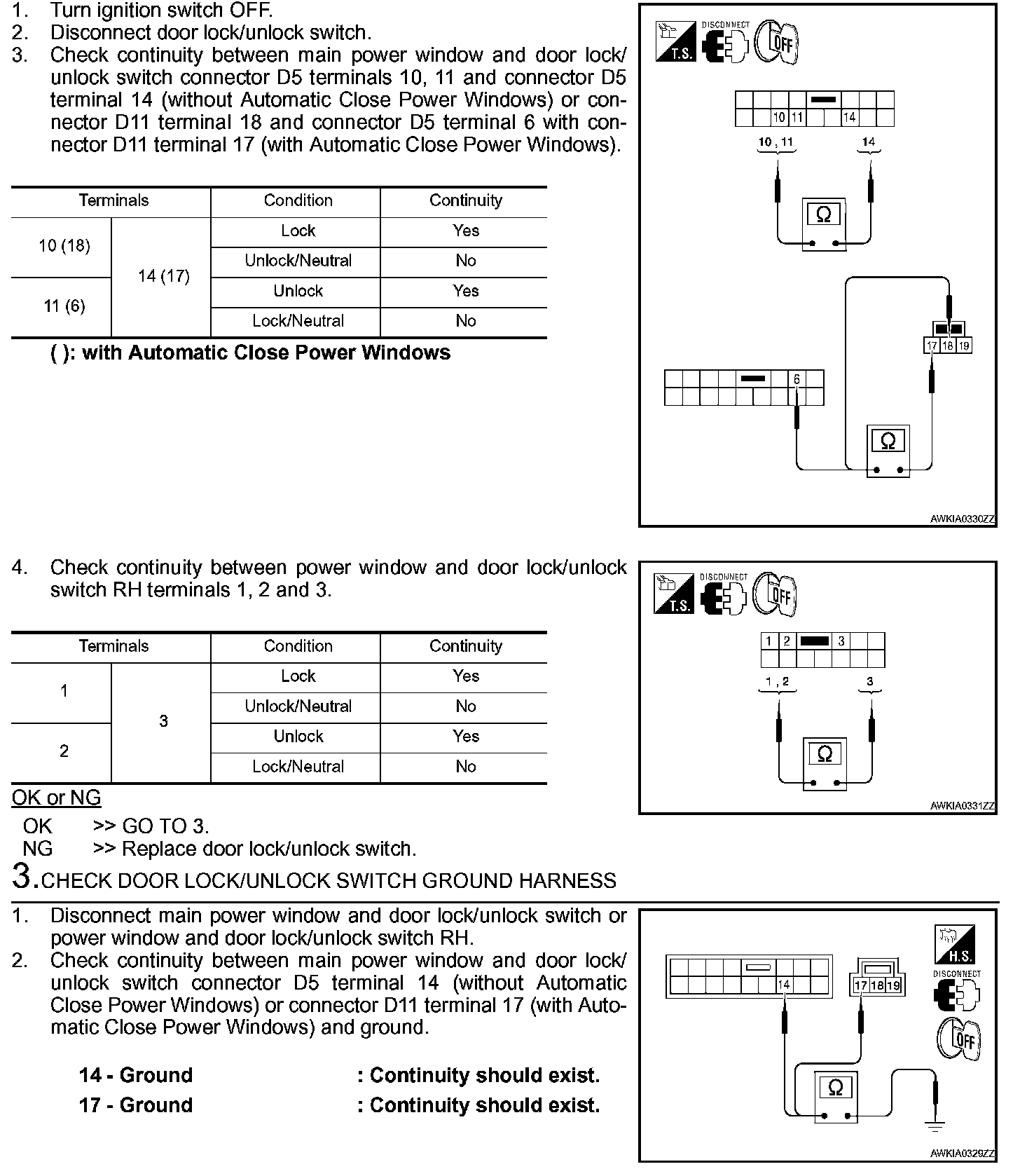

Step 1-2:

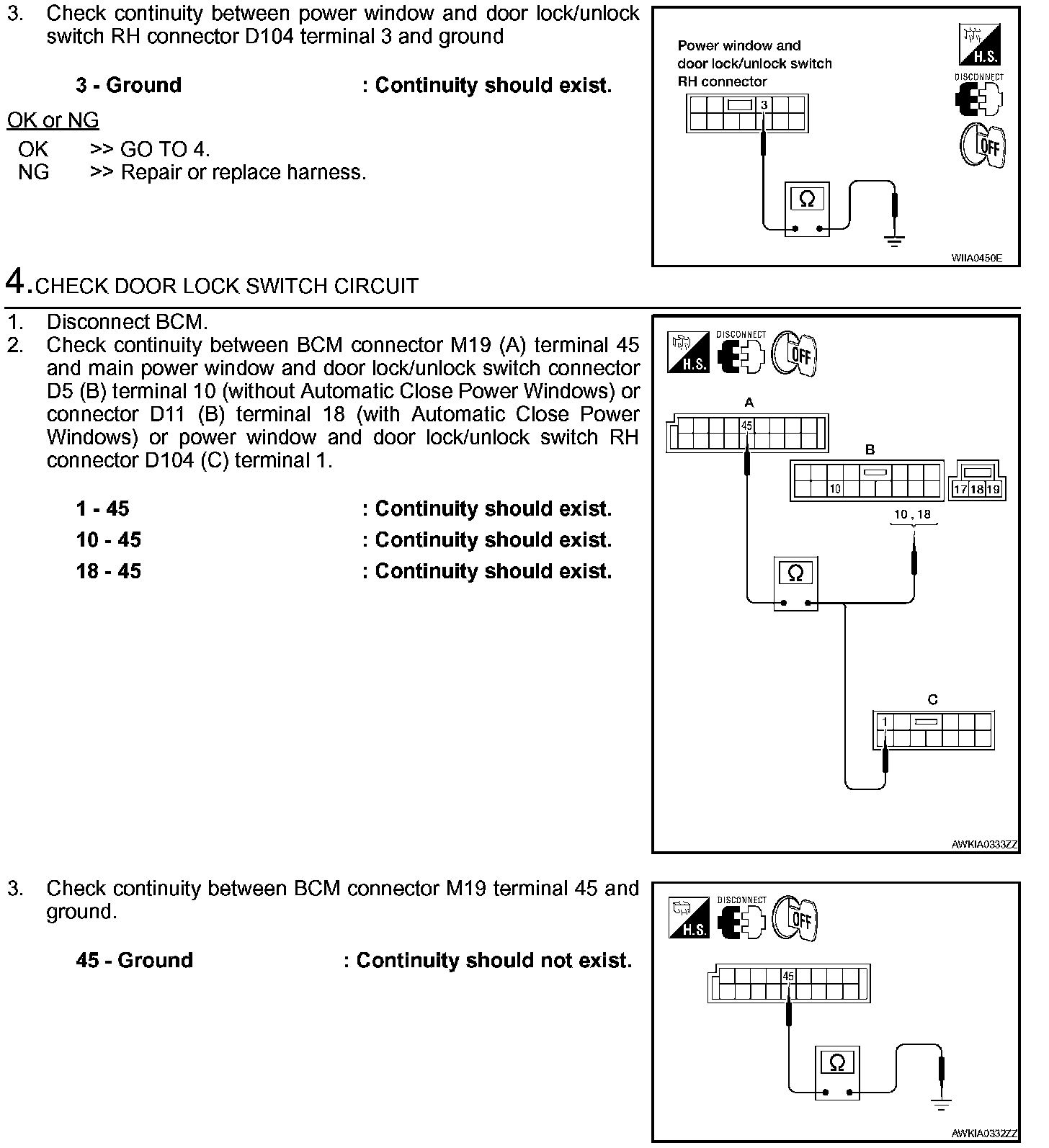

Step 2 (Continued)-3:

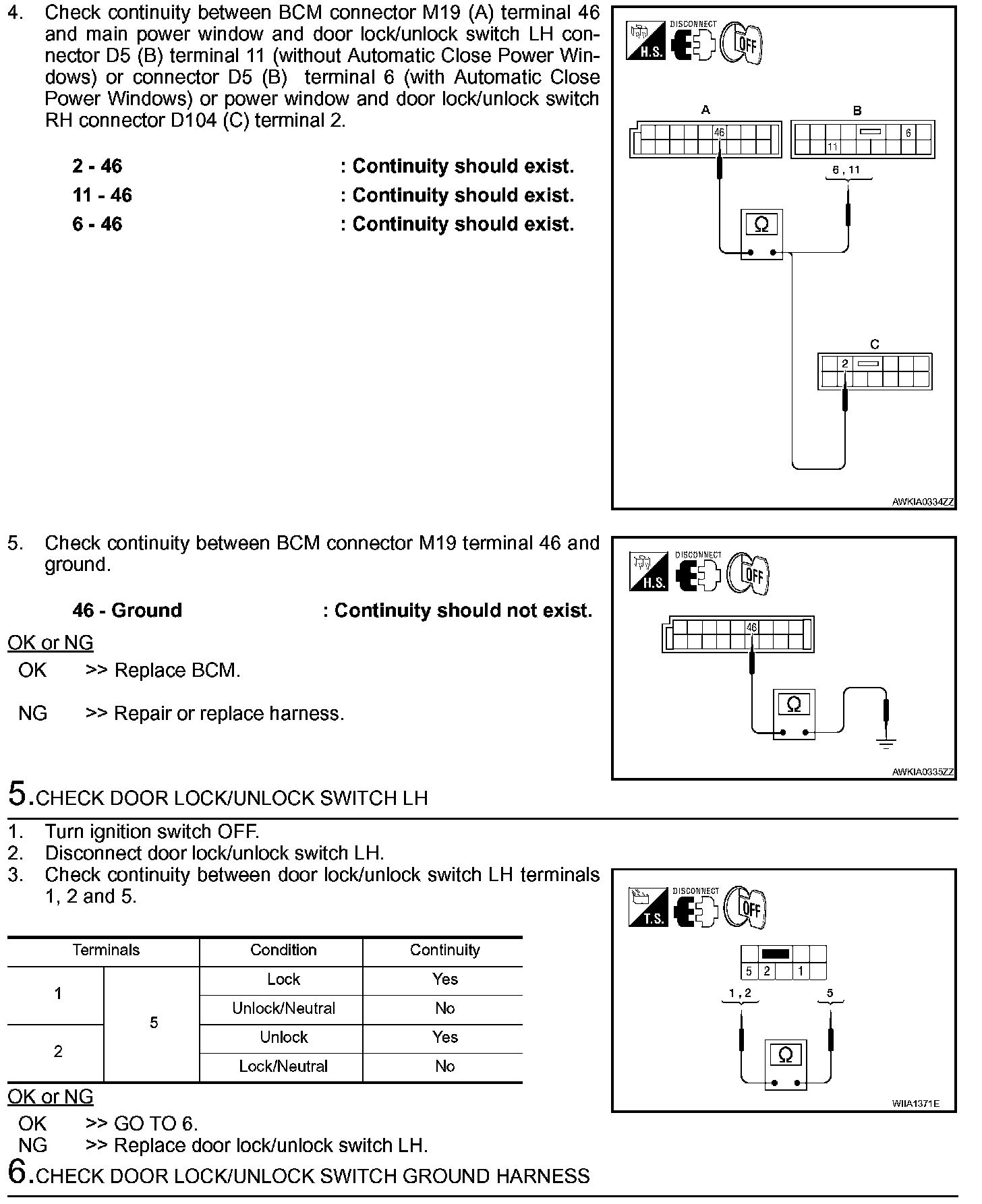

Step 3 (Continued)-4:
Step 4 (Continued)-6:

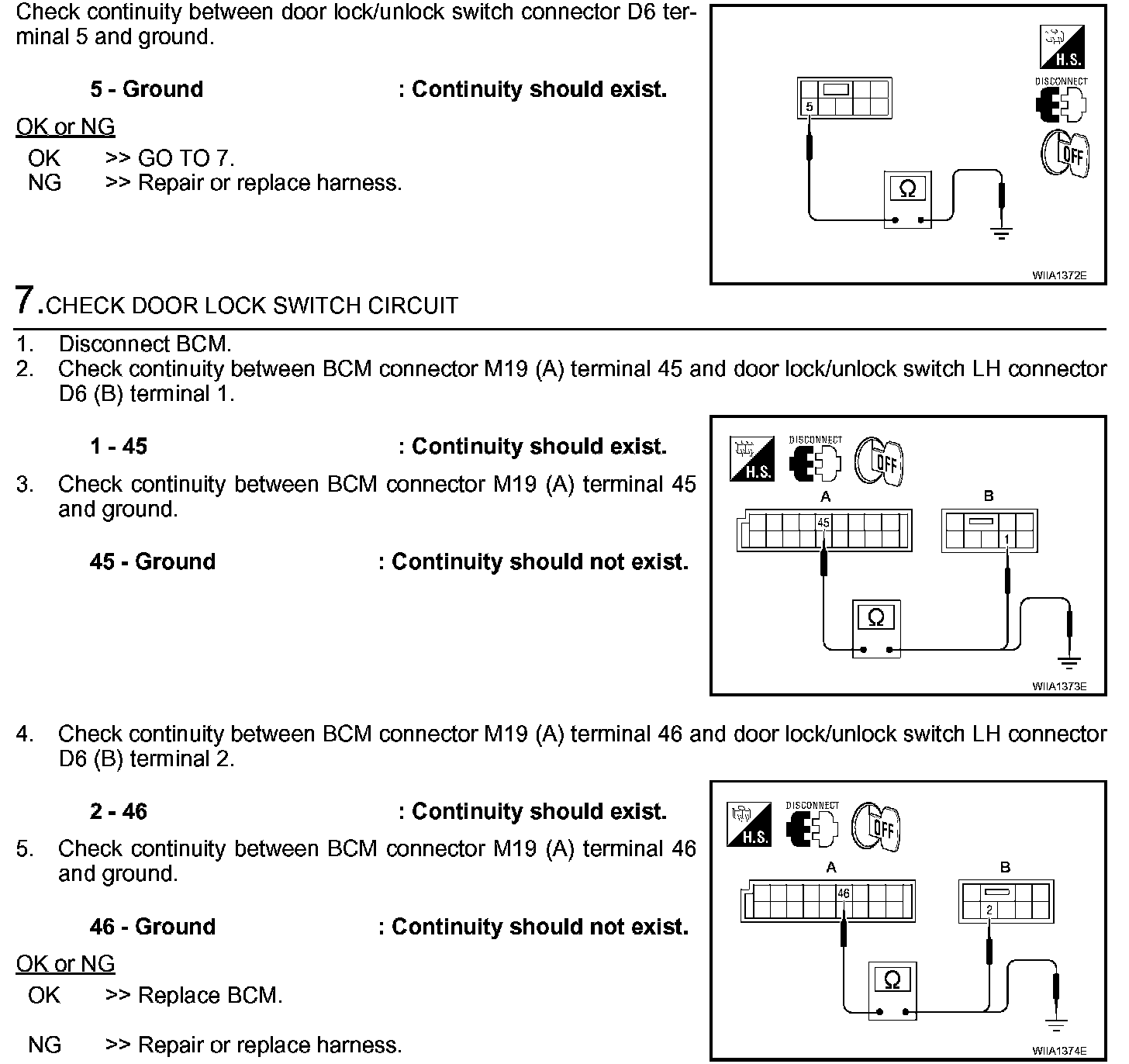

Step 6 (Continued)-7:
