Door Lock Actuator Check (Front RH and Rear LH/RH)
Door Lock Actuator Check (Front RH and Rear LH/RH)

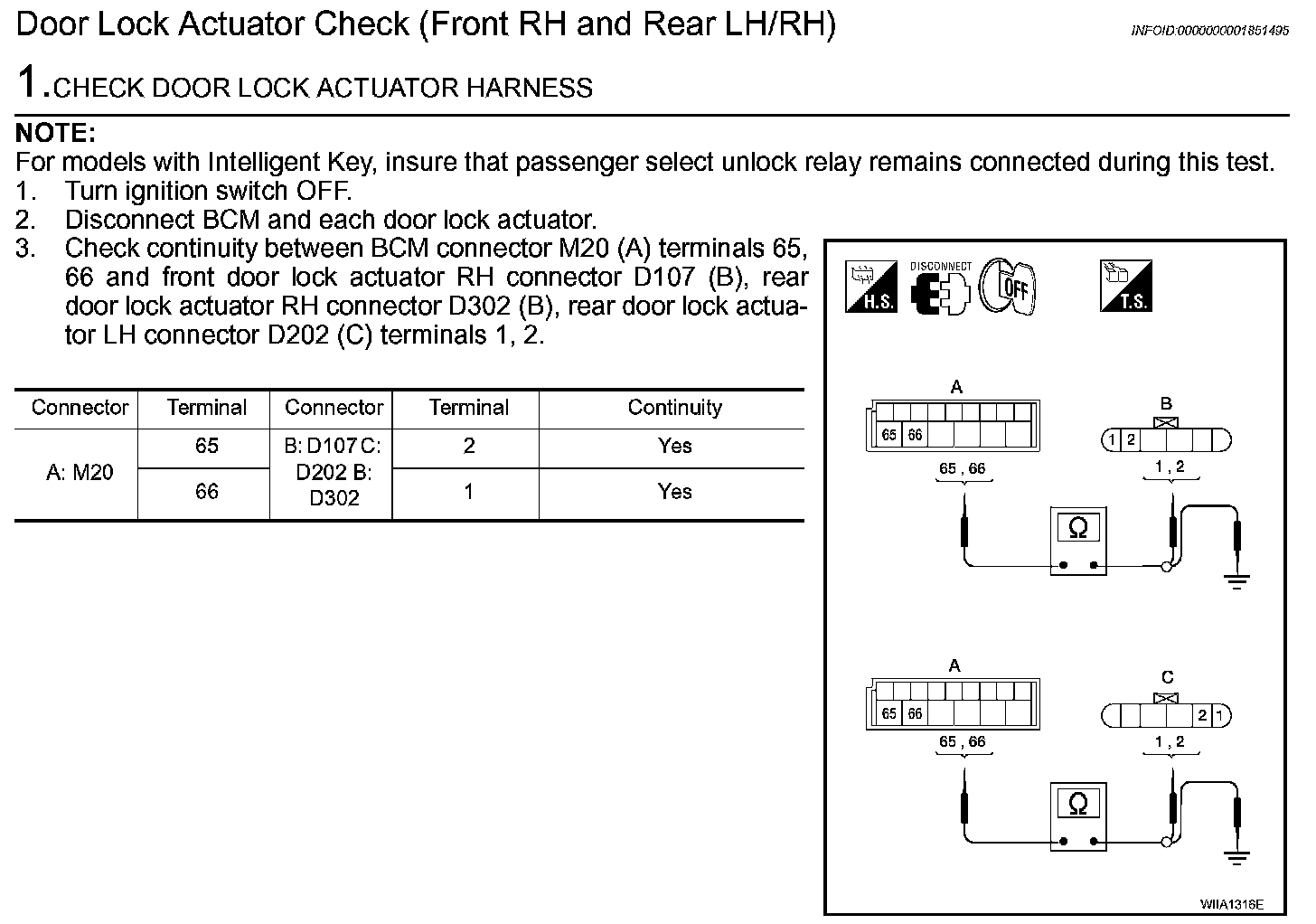

Step 1:

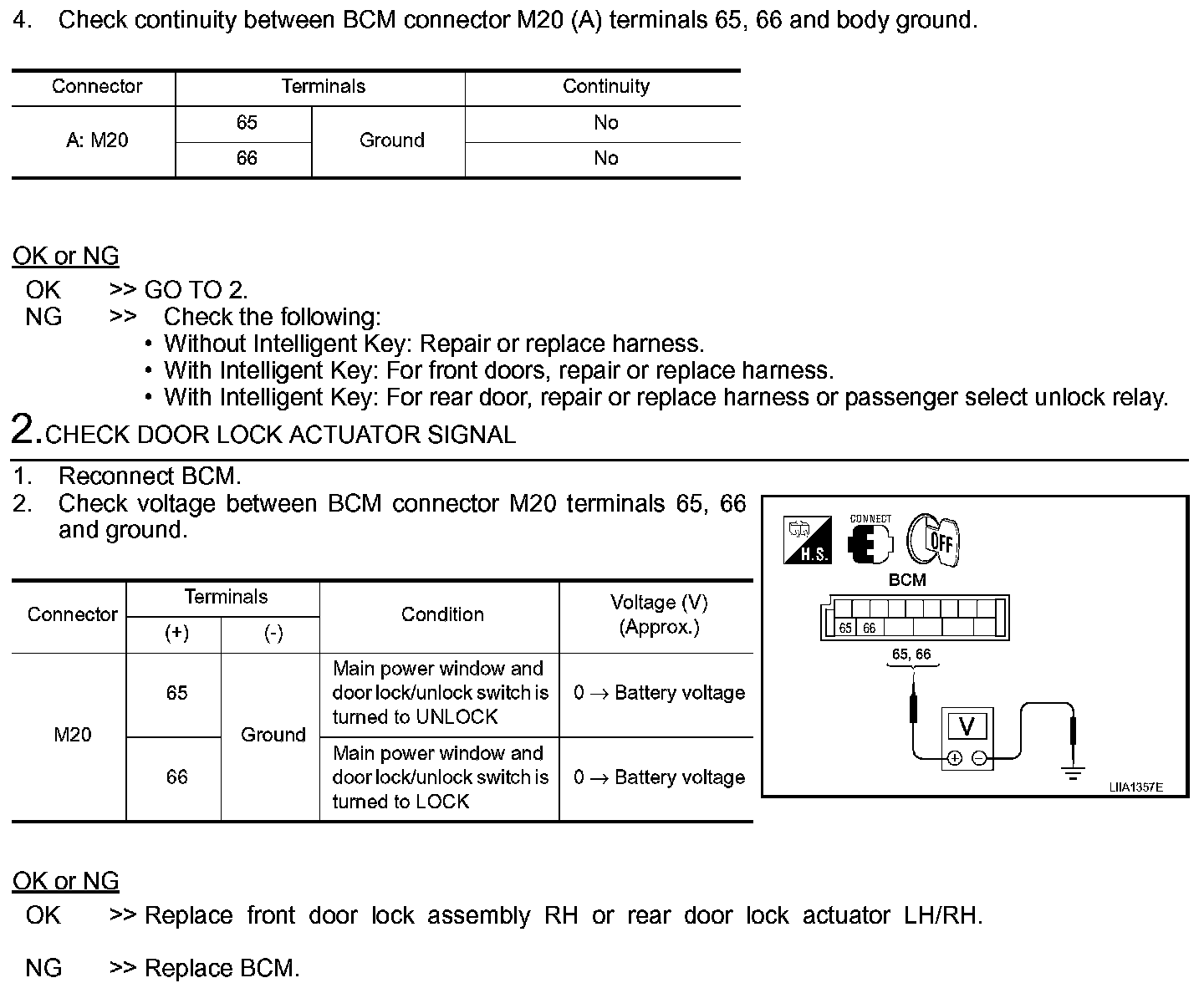

Step 1 (Continued)-2:
