Remote Keyless Entry

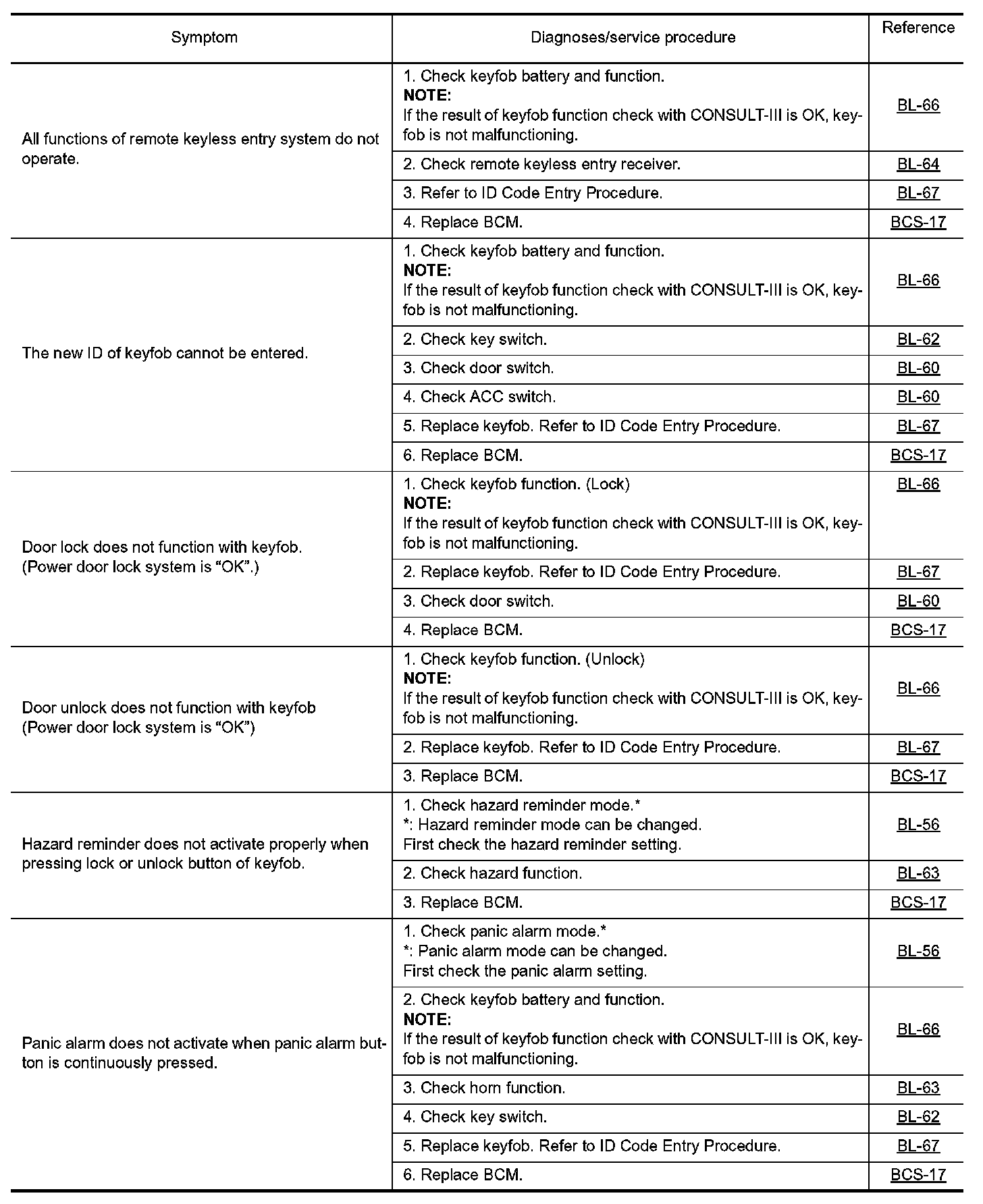

Trouble Diagnosis Symptom Chart (Part 1):

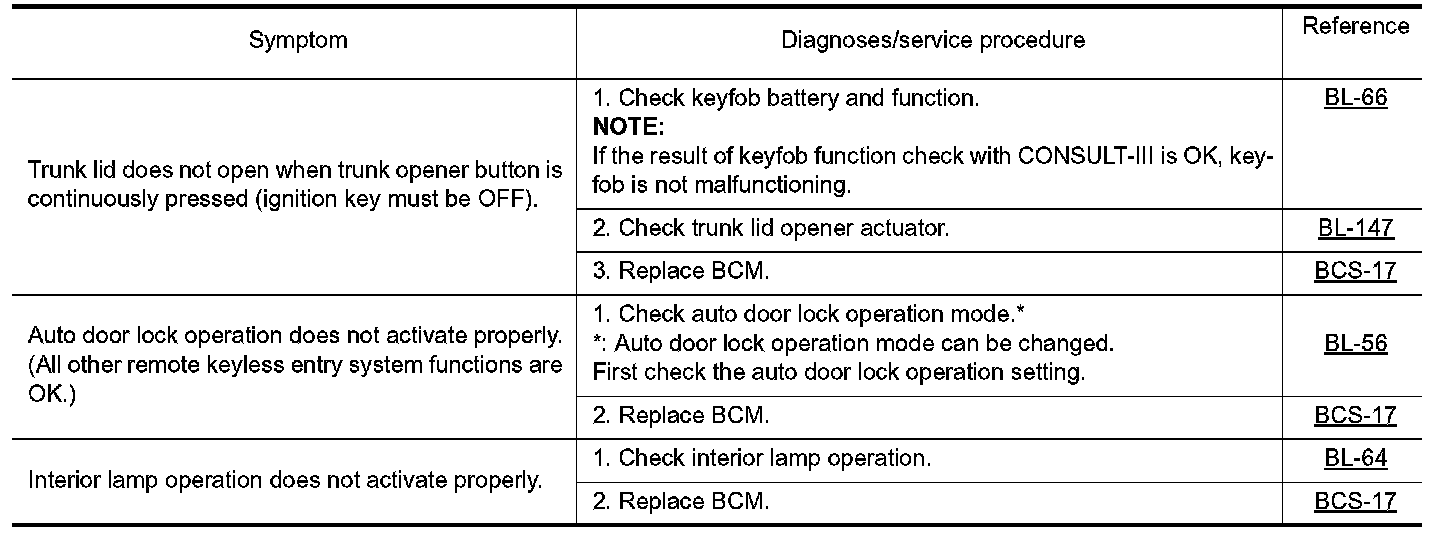

Trouble Diagnosis Symptom Chart (Part 2):

Trouble Diagnosis Symptom Chart

NOTE:
- Always check the "Work Flow" before troubleshooting. Refer to BL-57, "Work Flow". Work Flow
- Always check keyfob battery before replacing keyfob.
