Intelligent Key System

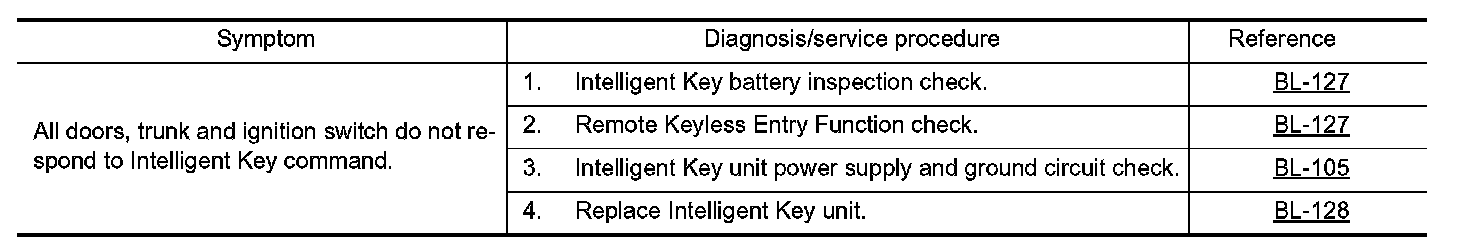

Trouble Diagnosis Symptom ChartALL INTELLIGENT KEY FUNCTIONS ARE INOPERATIVE
NOTE:
- Before performing the diagnosis in the given table, check "Trouble Diagnosis Procedure". Refer to BL-93, "Trouble Diagnosis Procedure". Trouble Diagnosis Procedure
- Make sure that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
- If the following "symptoms" are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
- Check if ignition switch turns using mechanical key. If it turns, check if "ENGINE START BY I-KEY" in "WORK SUPPORT" mode is ON.
Conditions of Vehicle (Operating Conditions)
- Intelligent Key is registered.
- Key is not inserted in ignition switch.
- One or more registered Intelligent Keys are in the vehicle.

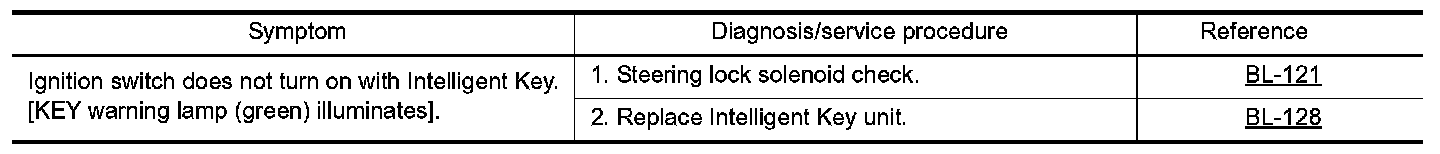

KEY WARNING LAMP (GREEN) ILLUMINATES
NOTE:
- Before performing the diagnosis in the given table, check "Trouble Diagnosis Procedure". Refer to BL-93, "Trouble Diagnosis Procedure". Trouble Diagnosis Procedure
- Make sure that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
- If the following "symptoms" are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
Conditions of Vehicle (Operating Conditions)
- Intelligent Key is registered.
- Key is not inserted in ignition switch.
- One or more registered Intelligent Keys are in the vehicle.

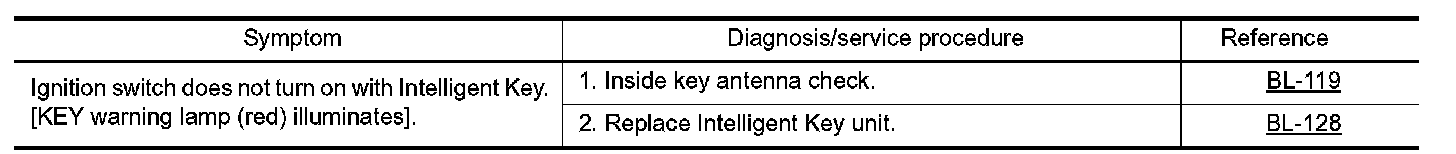

KEY WARNING LAMP (RED) ILLUMINATES
NOTE:
- Before performing the diagnosis in the given table, check "Trouble Diagnosis Procedure". Refer to BL-93, "Trouble Diagnosis Procedure". Trouble Diagnosis Procedure
- Make sure that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
- If the following "symptoms" are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
Conditions of Vehicle (Operating Conditions)
- Intelligent Key is registered.
- Key is not inserted in ignition switch.
- One or more registered Intelligent Keys are in the vehicle.
KEY WARNING LAMP DOES NOT ILLUMINATE
NOTE:
- Before performing the diagnosis in the given table, check "Trouble Diagnosis Procedure". Refer to BL-93, "Trouble Diagnosis Procedure". Trouble Diagnosis Procedure
- Make sure that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
- If the following "symptoms" are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
- Check if ignition switch turns using mechanical key. If it turns, check if "ENGINE START BY I-KEY" in "WORK SUPPORT" mode is ON.
Conditions of Vehicle (Operating Conditions)
- Intelligent Key is registered.
- Key is not inserted in ignition switch.
- One or more registered Intelligent Keys are in the vehicle.

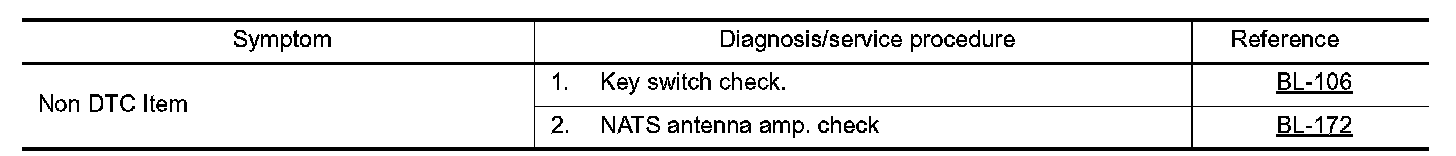

NON DTC ITEM
NOTE:
- Before performing the diagnosis in the given table, check "Trouble Diagnosis Procedure". Refer to BL-93, "Trouble Diagnosis Procedure". Trouble Diagnosis Procedure
- Make sure that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
- If the following "symptoms" are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
Conditions of Vehicle (Operating Conditions)
- Intelligent Key is registered.
- Multiple mechanical keys are not set in a keyfob.
(If mechanical keys are near the ignition switch, the operation may not work properly).

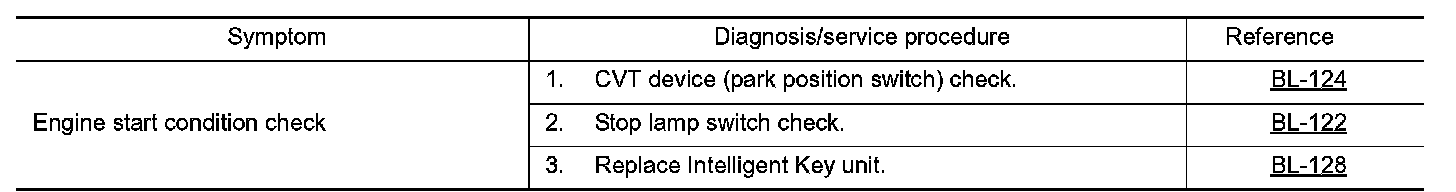

ENGINE START CONDITION CHECK
NOTE:
- Before performing the diagnosis in the given table, check "Trouble Diagnosis Procedure". Refer to BL-93, "Trouble Diagnosis Procedure". Trouble Diagnosis Procedure
- If the following "symptoms" are detected, check systems shown in the "Diagnosis/service procedure" column in this order.

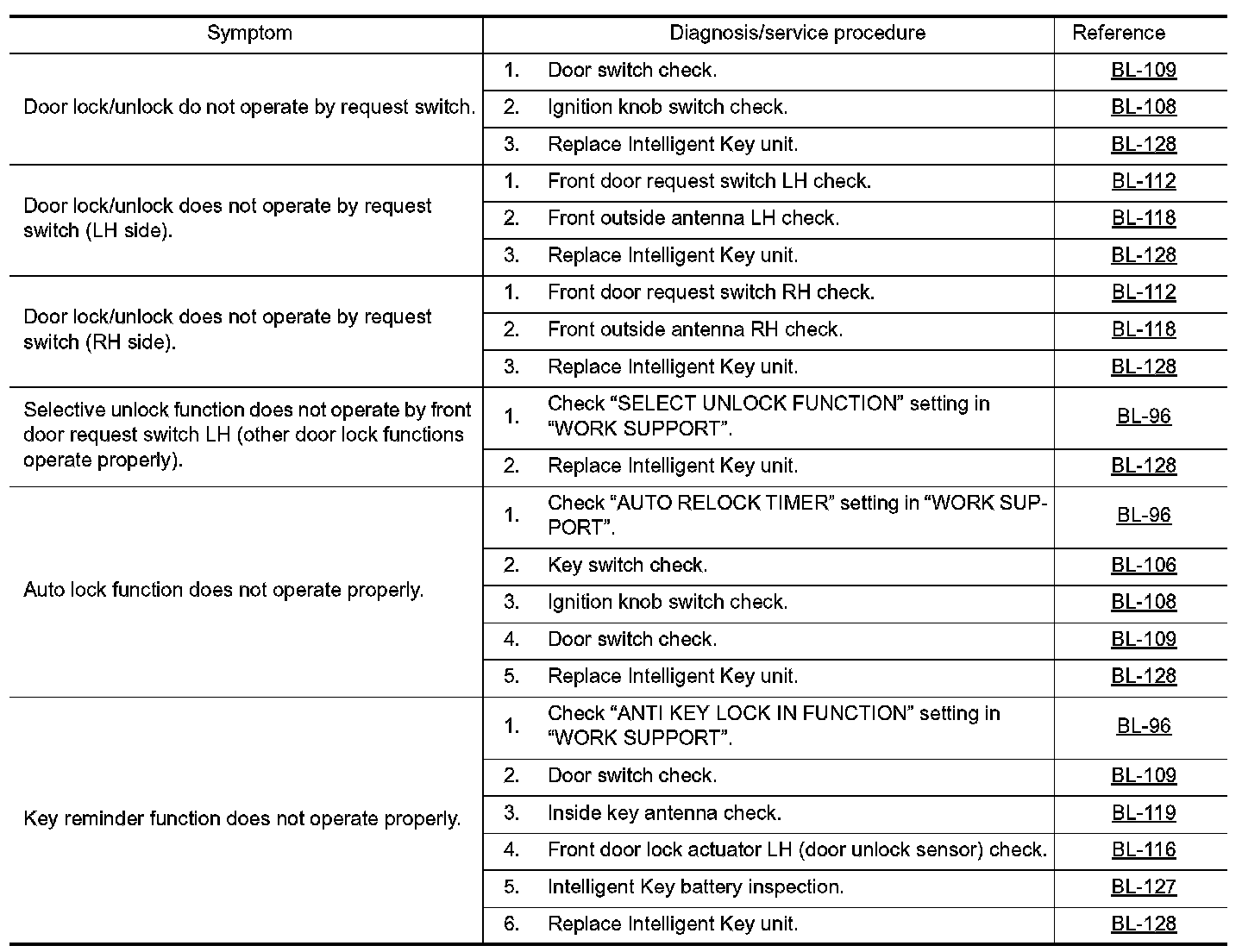

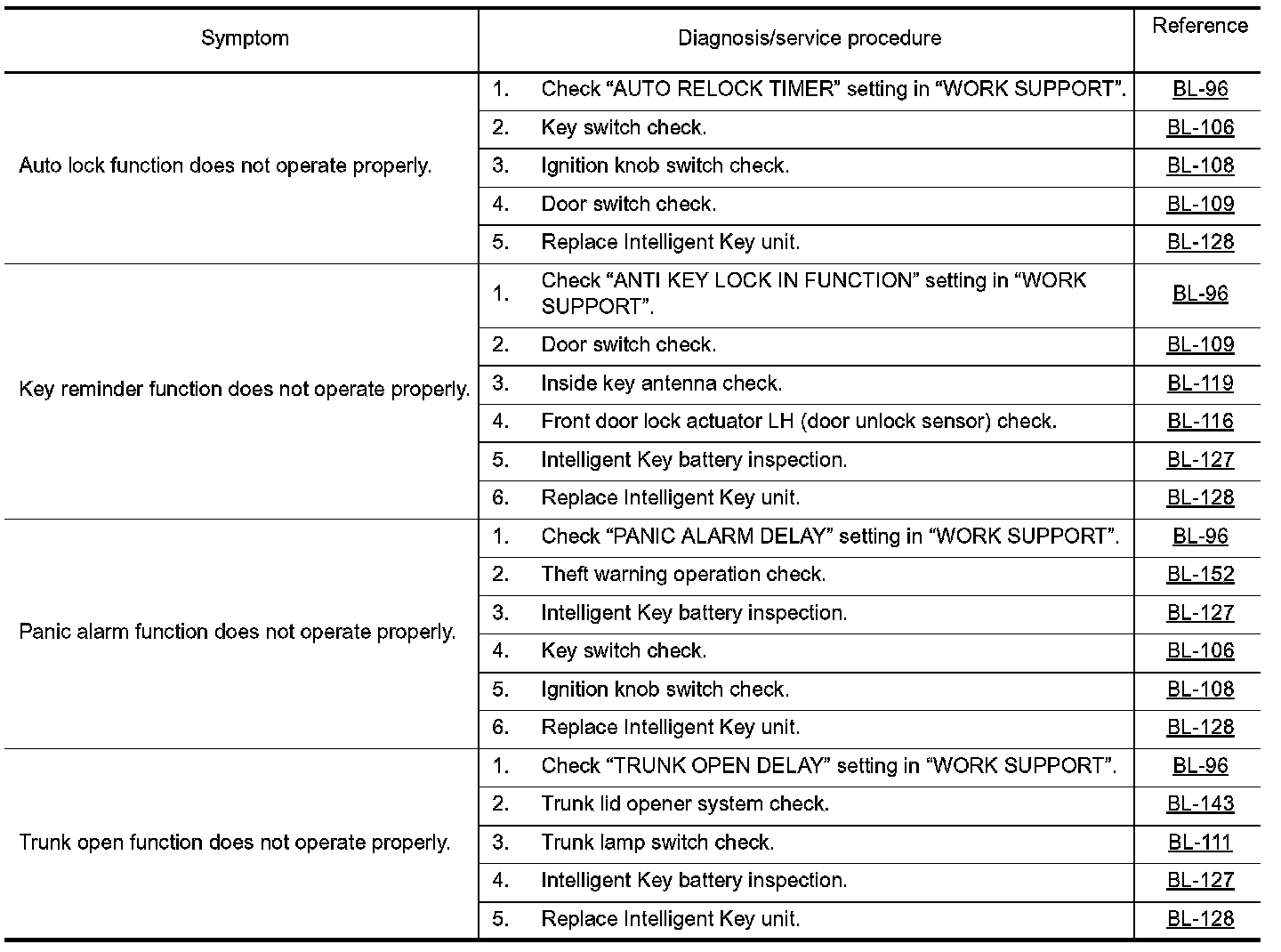

DOOR LOCK/UNLOCK FUNCTION MALFUNCTION
NOTE:
- Before performing the diagnosis in the given table, check "Trouble Diagnosis Procedure". Refer to BL-93, "Trouble Diagnosis Procedure". Trouble Diagnosis Procedure
- Make sure that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
- If the following "symptoms" are detected, check systems shown in the "Diagnosis/procedure" column in this order.
Conditions of Vehicle (Operating Conditions)
- "LOCK/UNLOCK BY I-KEY" is ON when setting on CONSULT-III.
- Ignition switch is not depressed.
- All doors are closed.

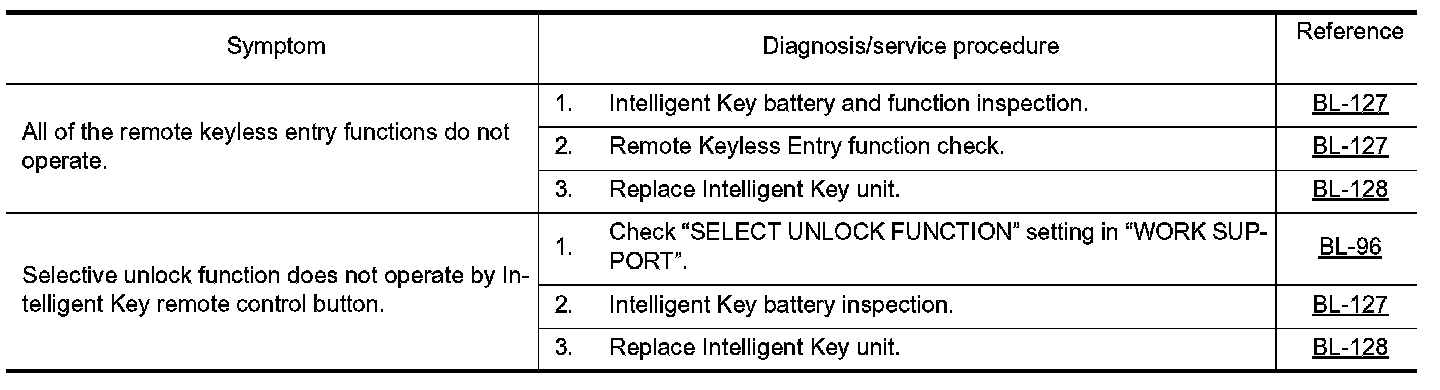

REMOTE KEYLESS ENTRY FUNCTION MALFUNCTION
NOTE:
- Before performing the diagnosis in the given table, check "Trouble Diagnosis Procedure". Refer to BL-93, "Trouble Diagnosis Procedure". Trouble Diagnosis Procedure
- Make sure that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
- If the following "symptoms" are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
Conditions of Vehicle (Operating Conditions)
- Ignition switch is not depressed.
- All doors are closed.

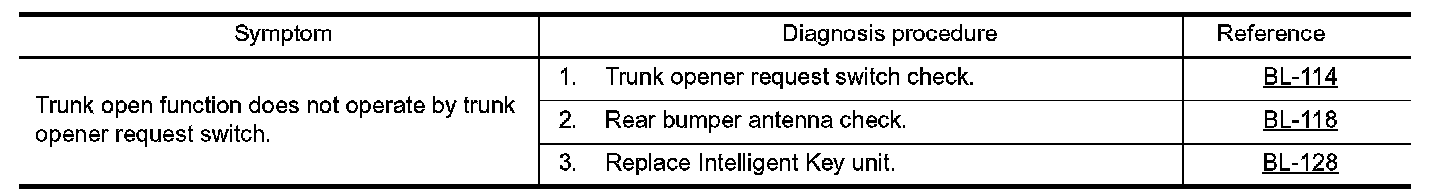

TRUNK OPEN FUNCTION MALFUNCTION
NOTE:
- Before performing the diagnosis in the given table, check "Trouble Diagnosis Procedure". Refer to BL-93, "Trouble Diagnosis Procedure". Trouble Diagnosis Procedure
- Make sure that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
- If the following "symptoms" are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
Conditions of Vehicle (Operating Conditions)
- "LOCK/UNLOCK BY I-KEY" is ON when setting on CONSULT-III.
- Trunk cancel switch is in ON position.

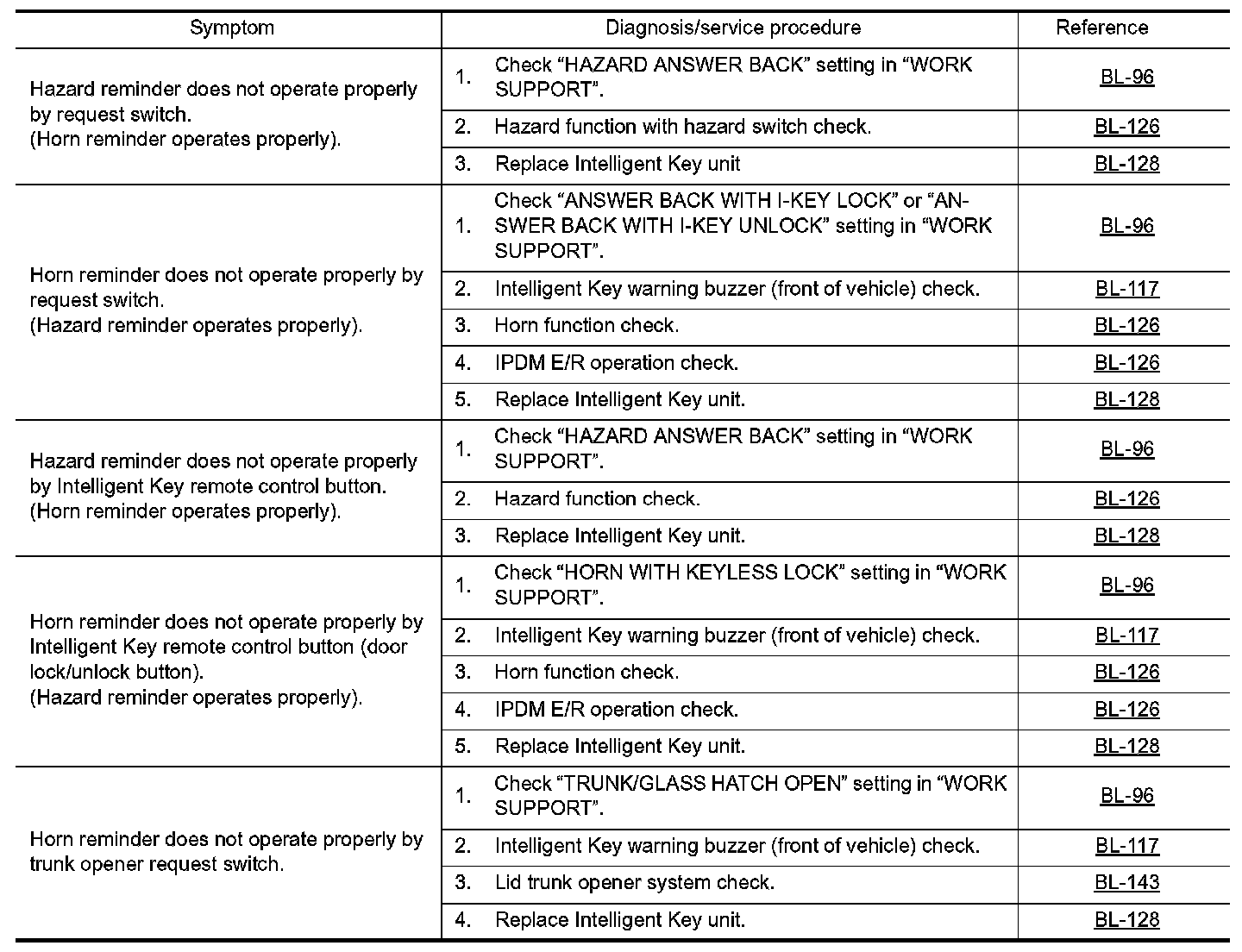

HAZARD AND HORN REMINDER FUNCTION MALFUNCTION
NOTE:
- Before performing the diagnosis in the given table, check "Trouble Diagnosis Procedure". Refer to BL-93, "Trouble Diagnosis Procedure". Trouble Diagnosis Procedure
- Make sure that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
- If the following "symptoms" are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
Conditions of Vehicle (Operating Conditions)
- Ignition switch is not depressed.
- All doors are closed.

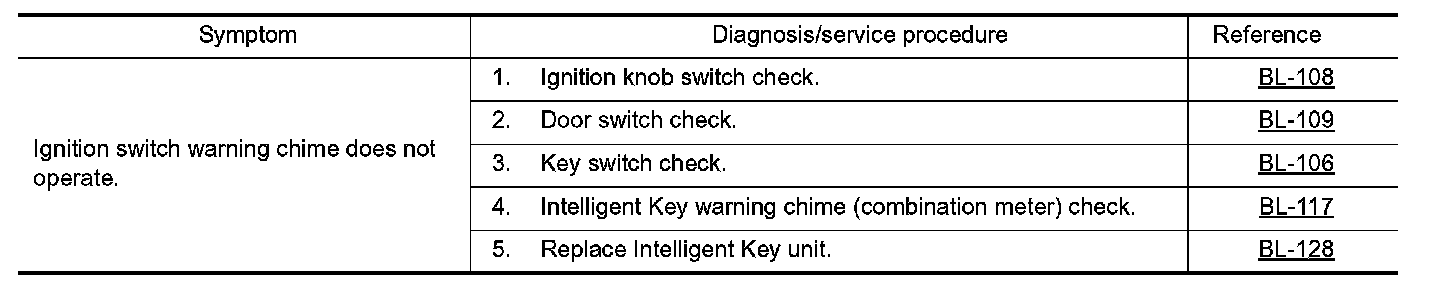

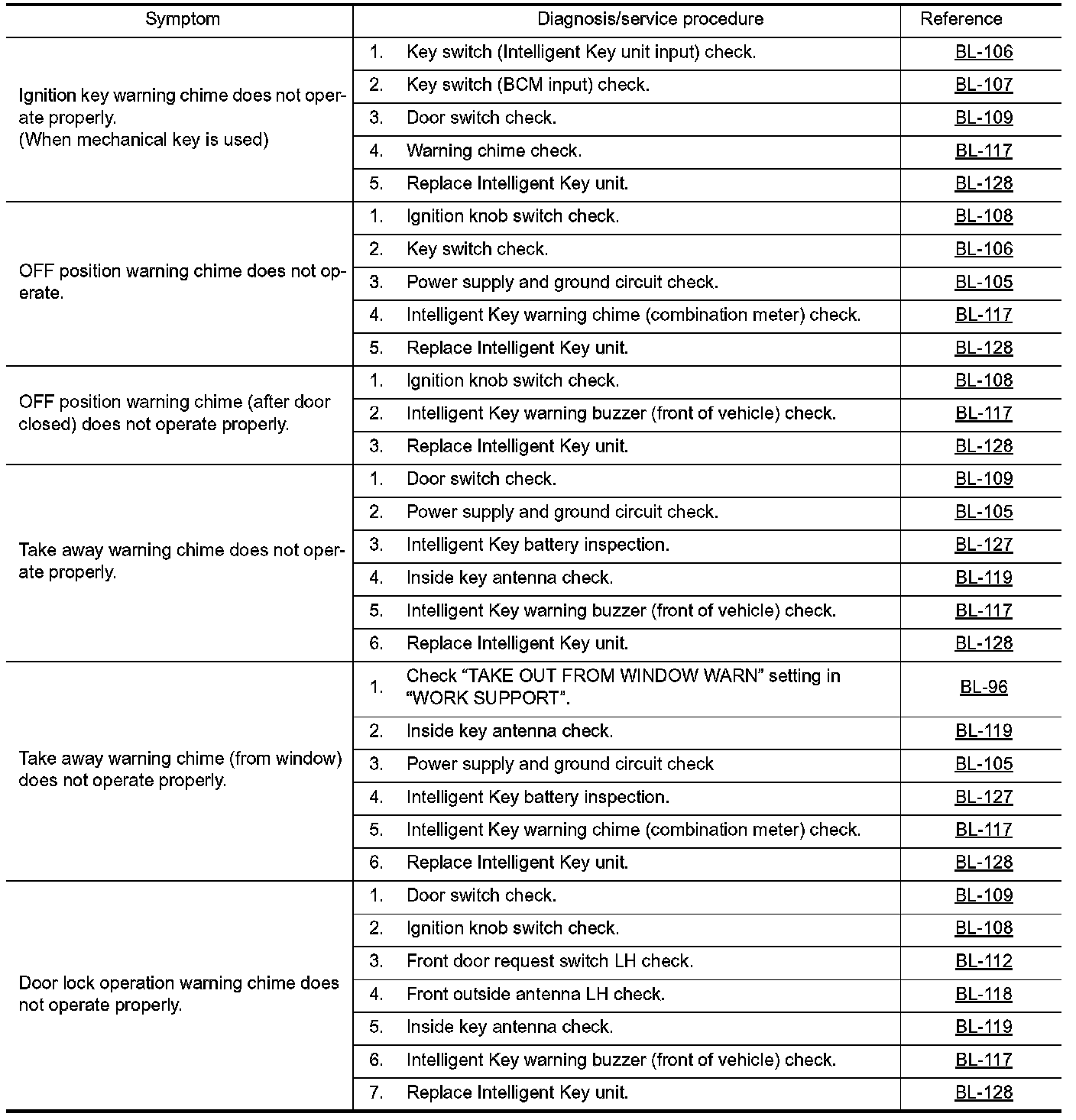

WARNING CHIME FUNCTION MALFUNCTION
NOTE:
- Before performing the diagnosis in the given table, check "Trouble Diagnosis Procedure". Refer to BL-93, "Trouble Diagnosis Procedure". Trouble Diagnosis Procedure
- Make sure that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
- If the following "symptoms" are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
Conditions of Vehicle (Operating Conditions)
Each warning chime function is ON when setting on CONSULT-III.

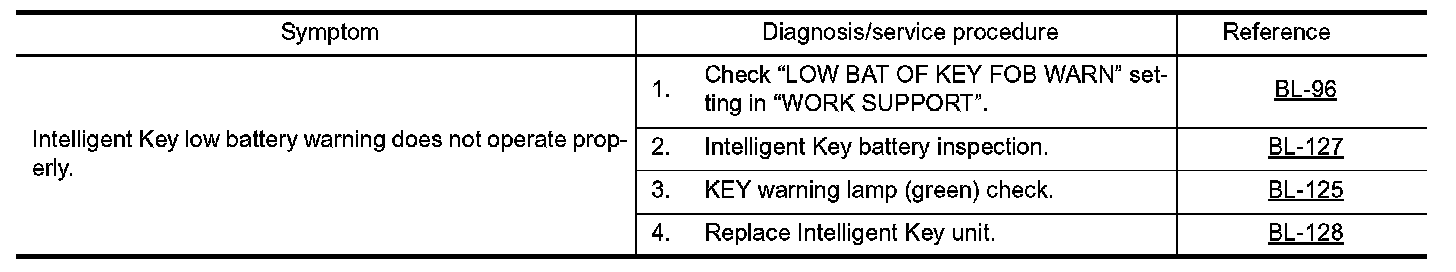

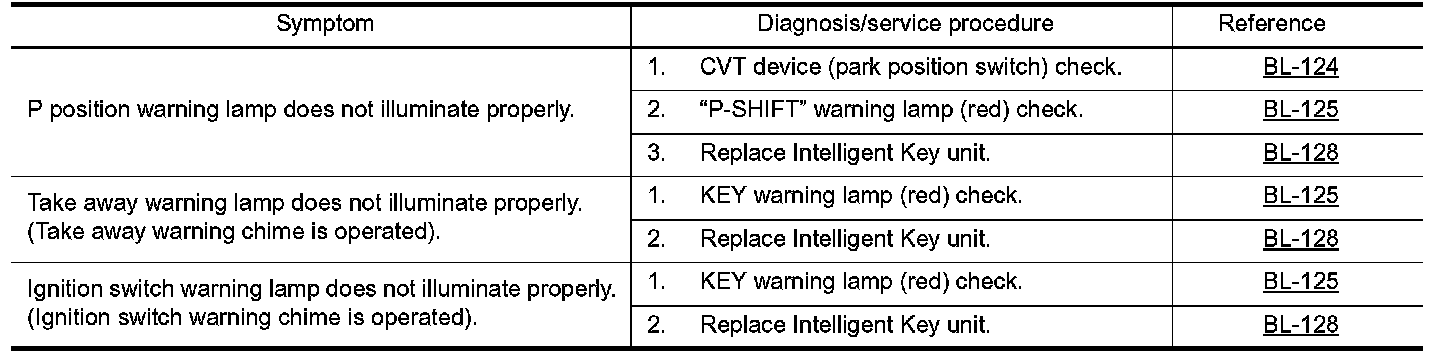

WARNING LAMP FUNCTION MALFUNCTION
NOTE:
- Before performing the diagnosis in the given table, check "Trouble Diagnosis Procedure". Refer to BL-93, "Trouble Diagnosis Procedure". Trouble Diagnosis Procedure
- If the following "symptoms" are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
