Terminal and Reference Value For Steering Lock Solenoid

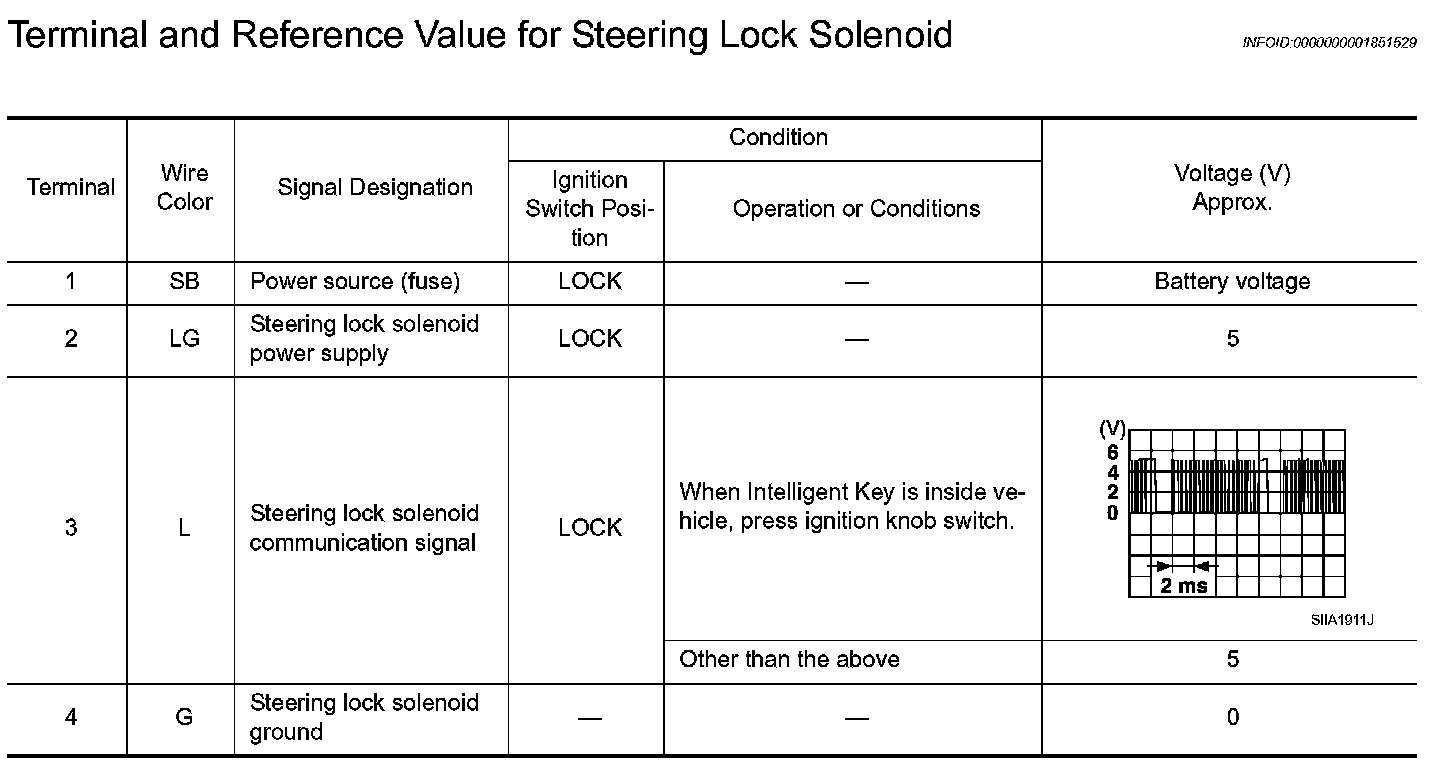

Terminal And Reference Value For Steering Lock Solenoid:
