Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Component Tests and General Diagnostics >> Remote Keyless Entry >> Remote Keyless Entry Receiver Check

Remote Keyless Entry Receiver Check

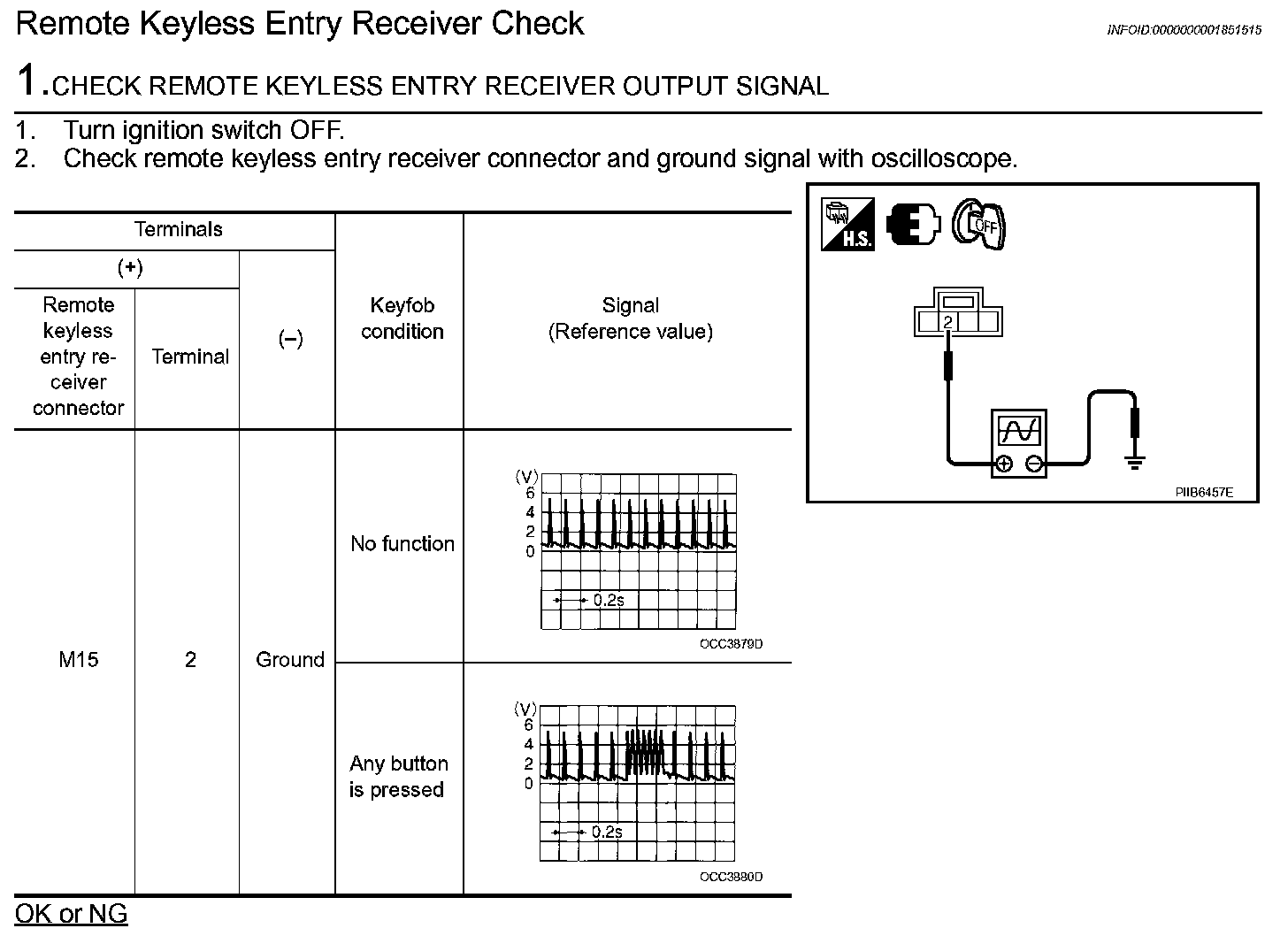

Step 1:

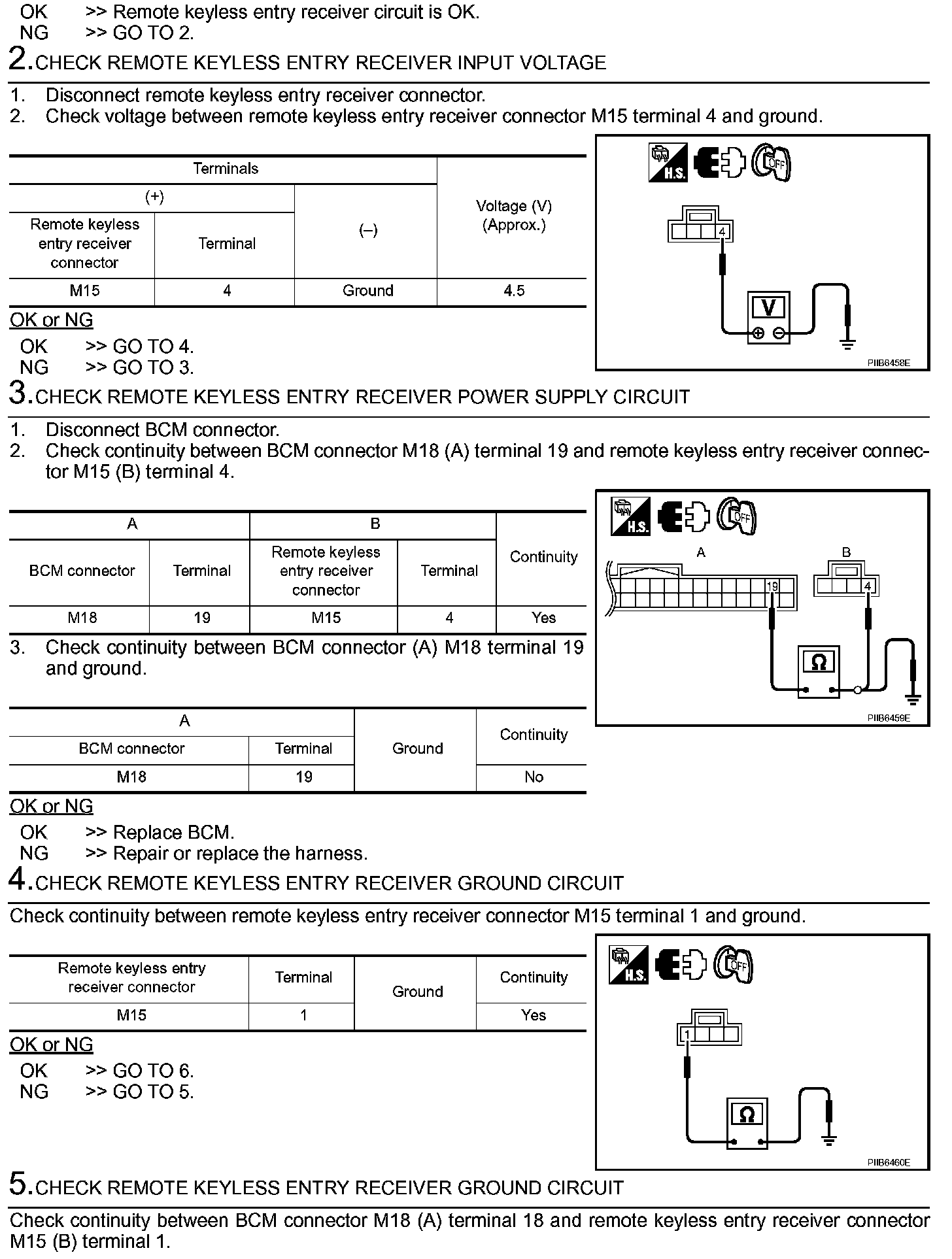

Step 1 (Continued)-5:



Step 5 (Continued)-6:
