Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Component Tests and General Diagnostics >> Intelligent Key System >> Front Door Request Switch Check

Front Door Request Switch Check

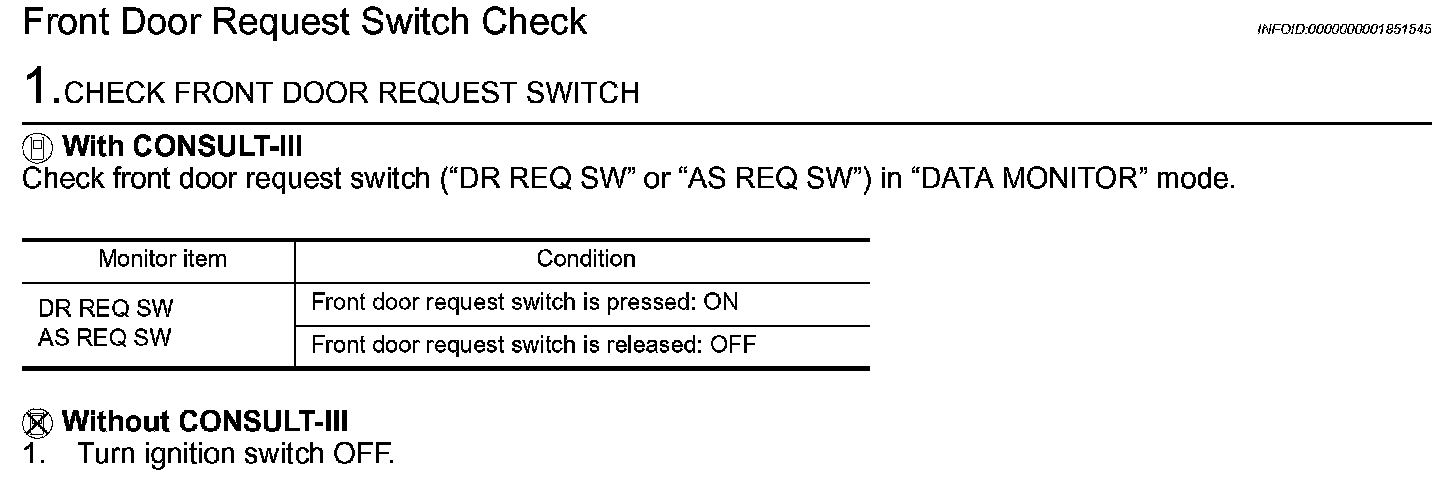

Step 1:

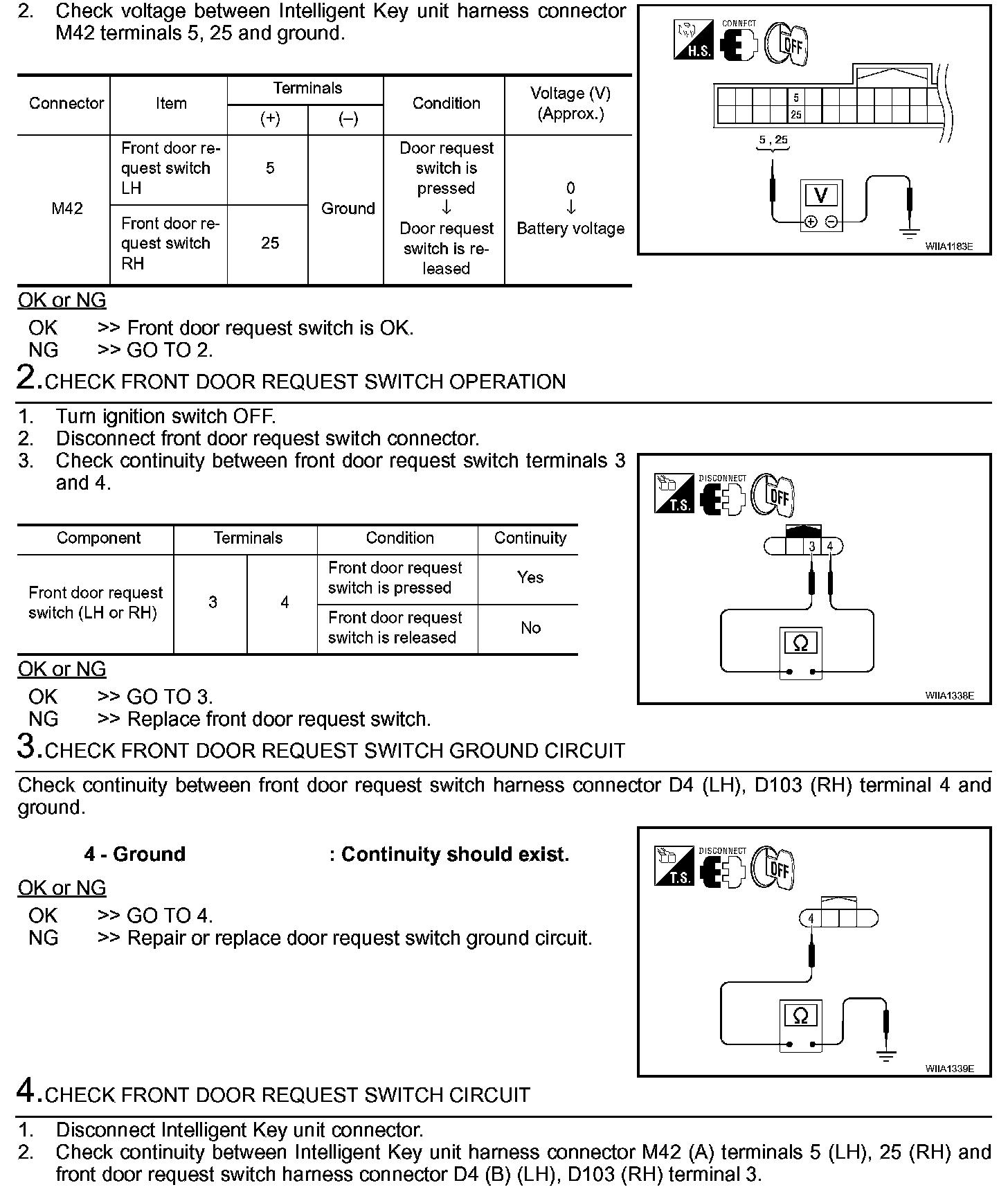

Step 1 (Continued)-4:

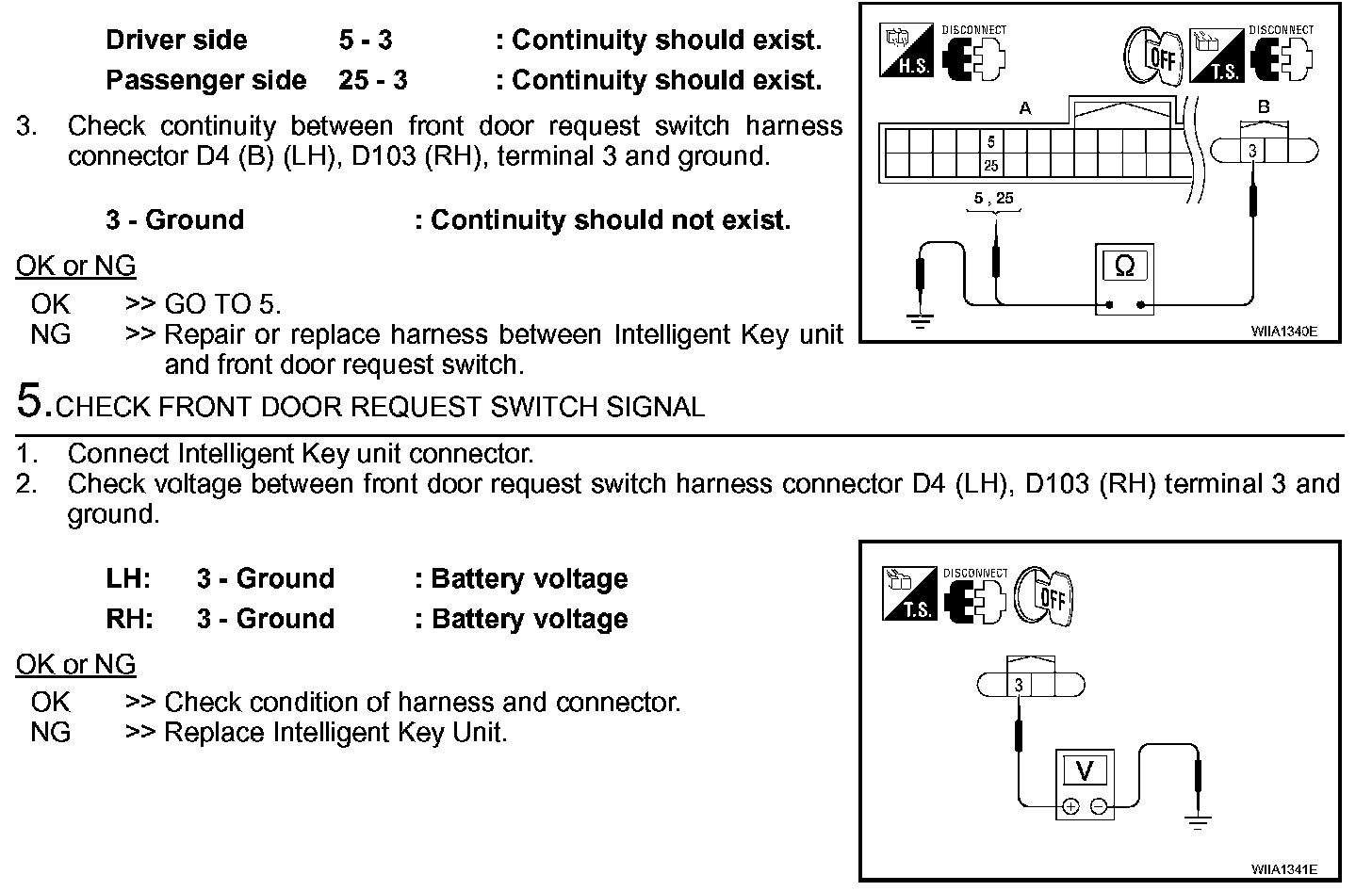

Step 4 (Continued)-5:
