Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Component Tests and General Diagnostics >> Intelligent Key System >> Front Door Lock Assembly LH (Door Unlock Sensor) Check

Front Door Lock Assembly LH (Door Unlock Sensor) Check

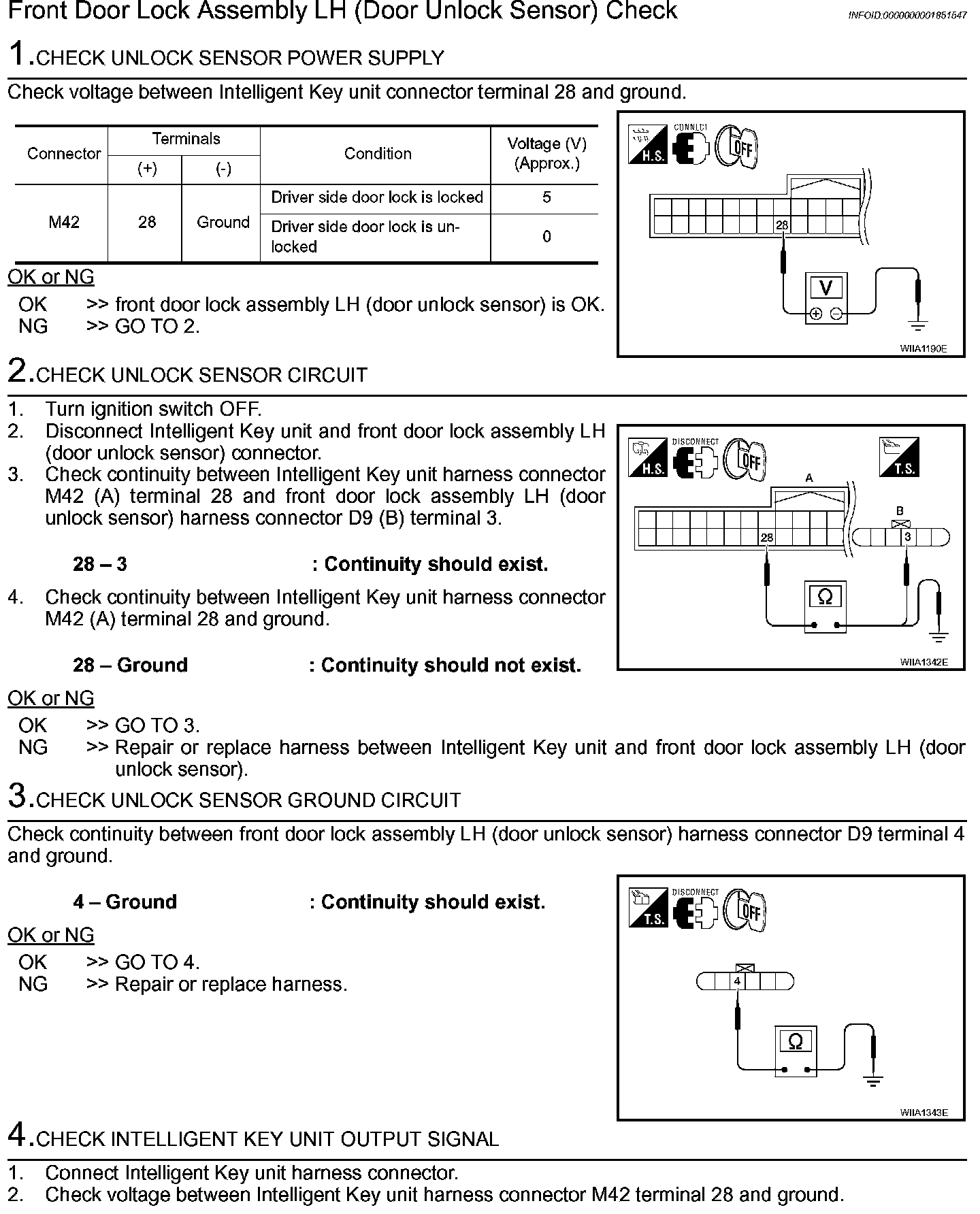

Step 1-4:

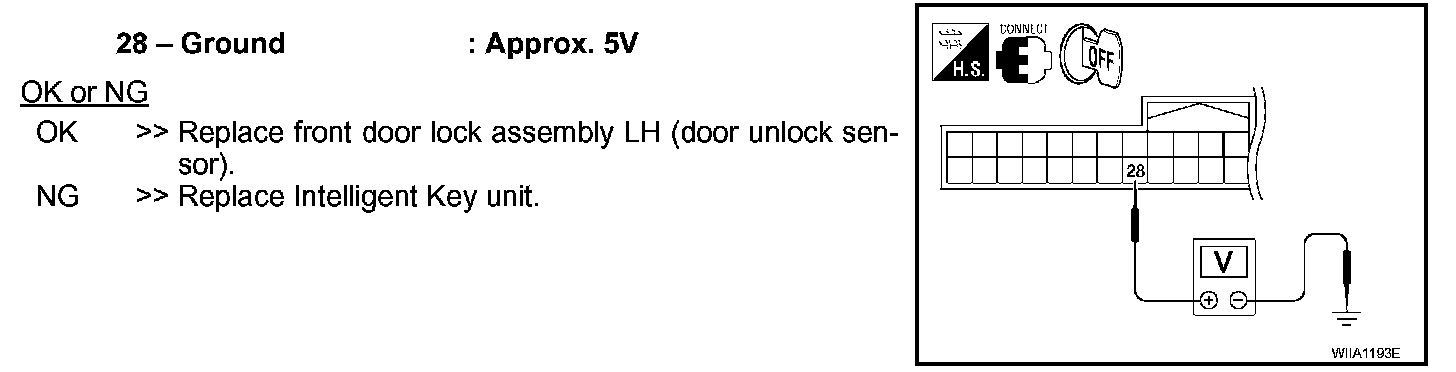

Step 4 (Continued):
