Intelligent Key System

BL-I/KEY-01:

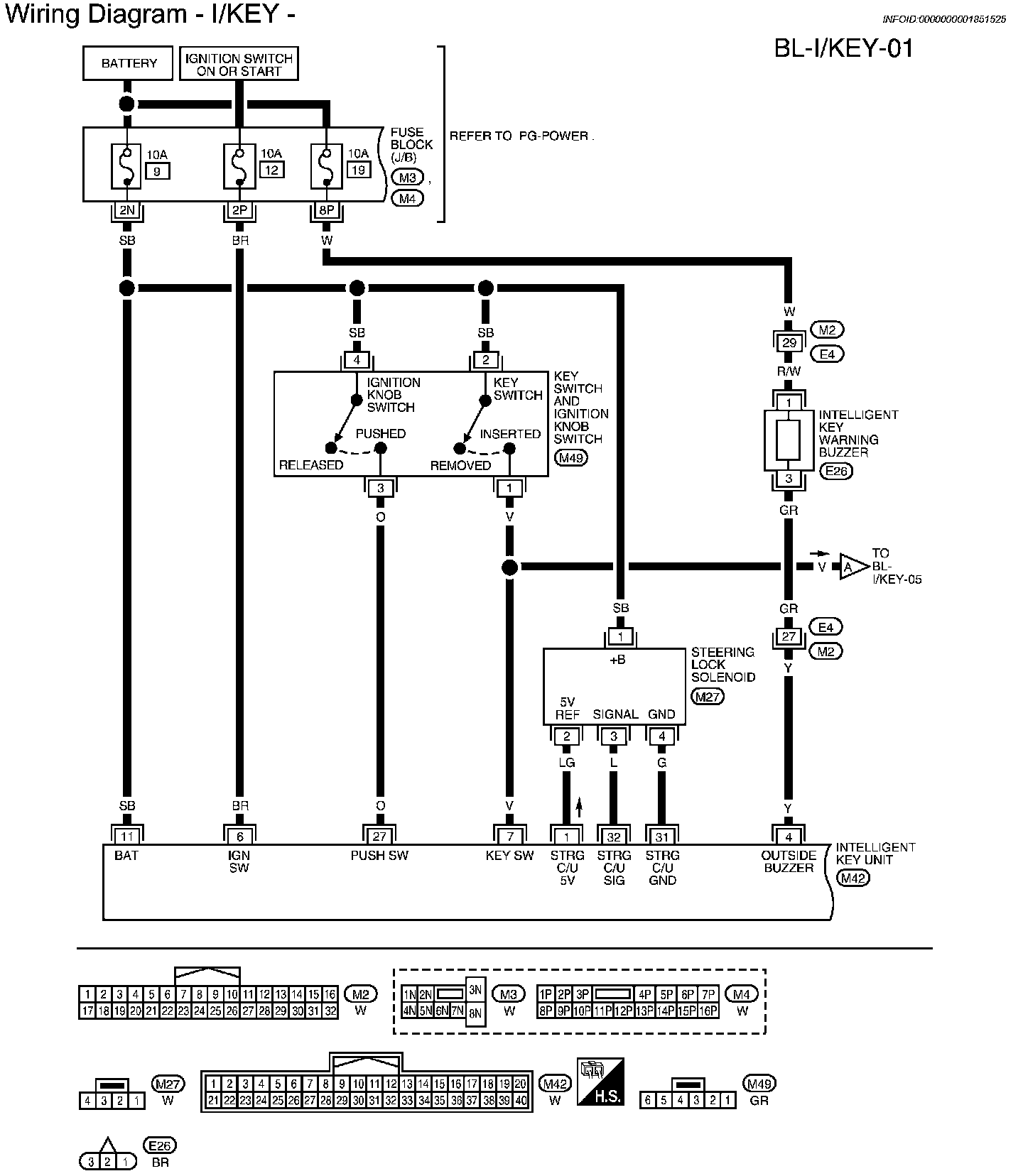

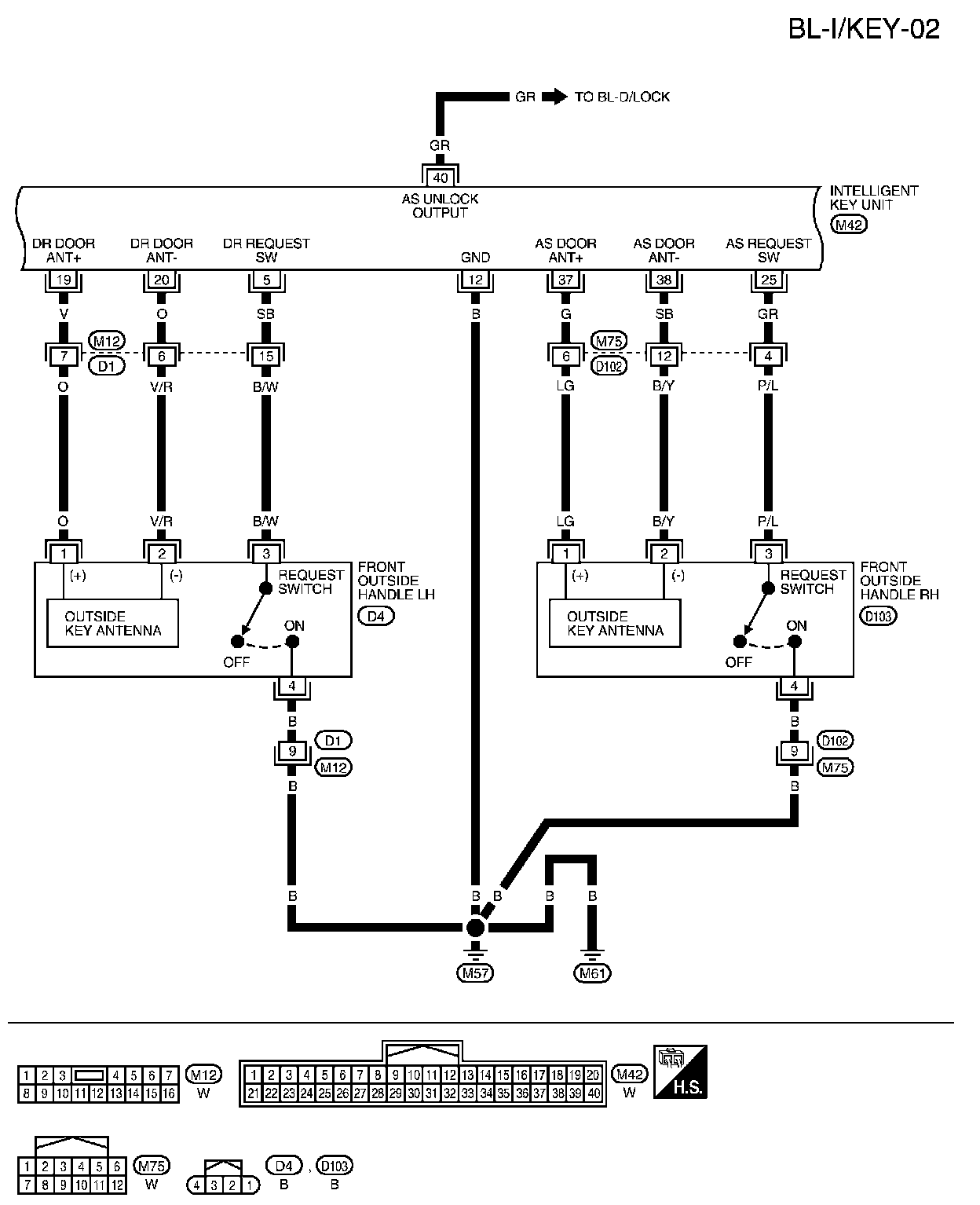

BL-I/KEY-02:

BL-I/KEY-03:

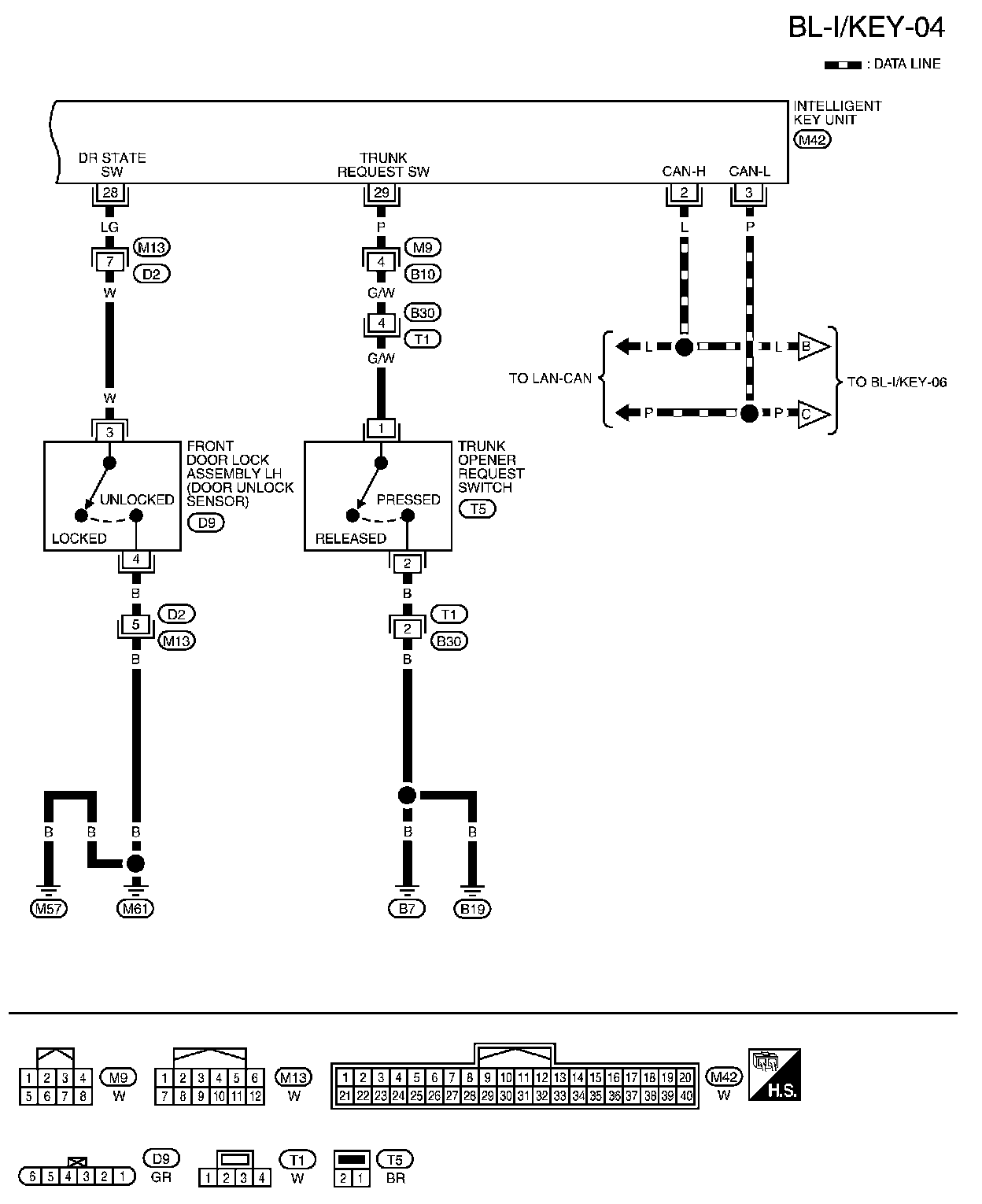

BL-I/KEY-04:

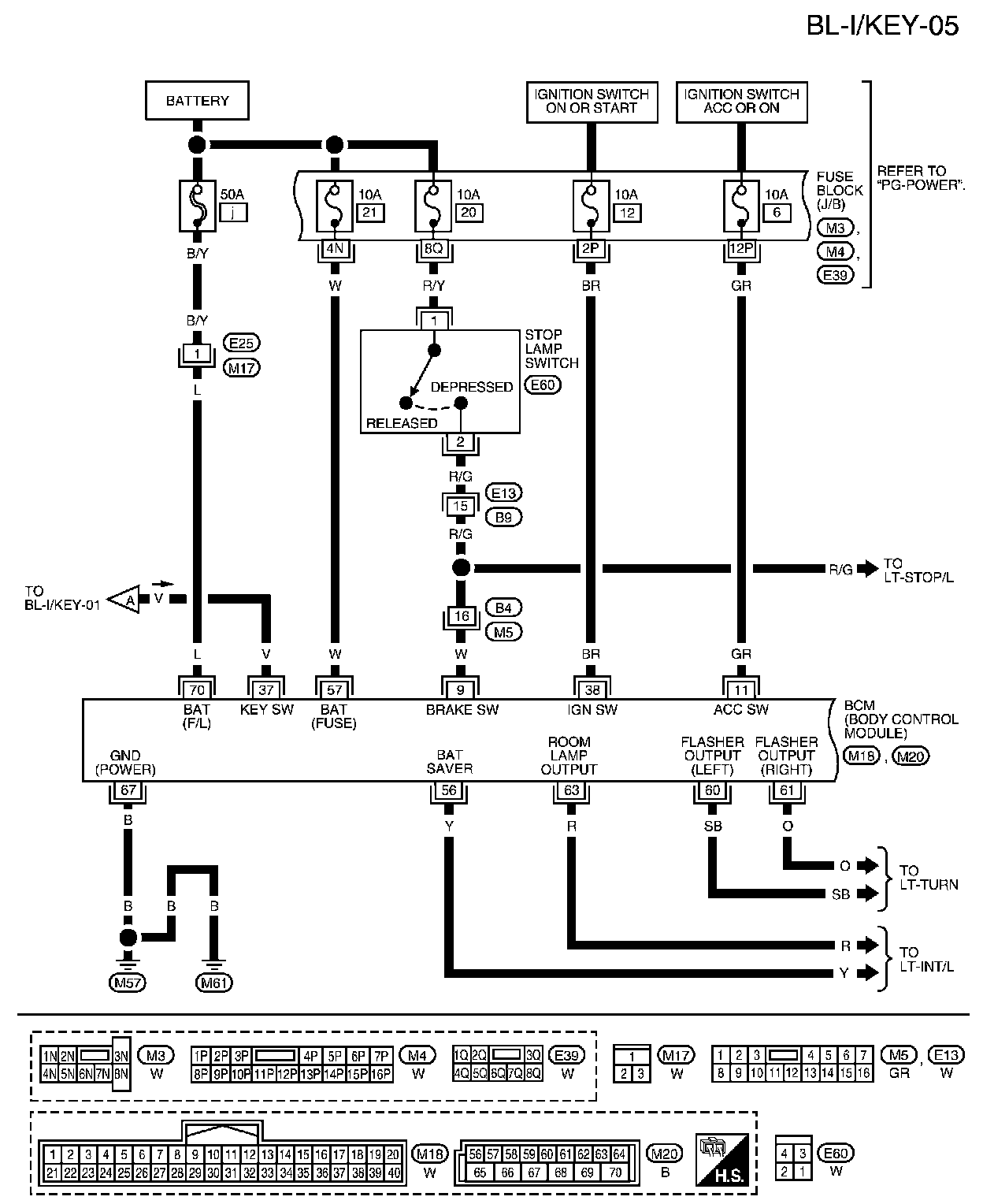

BL-I/KEY-05:

BL-I/KEY-06:

BL-I/KEY-07:

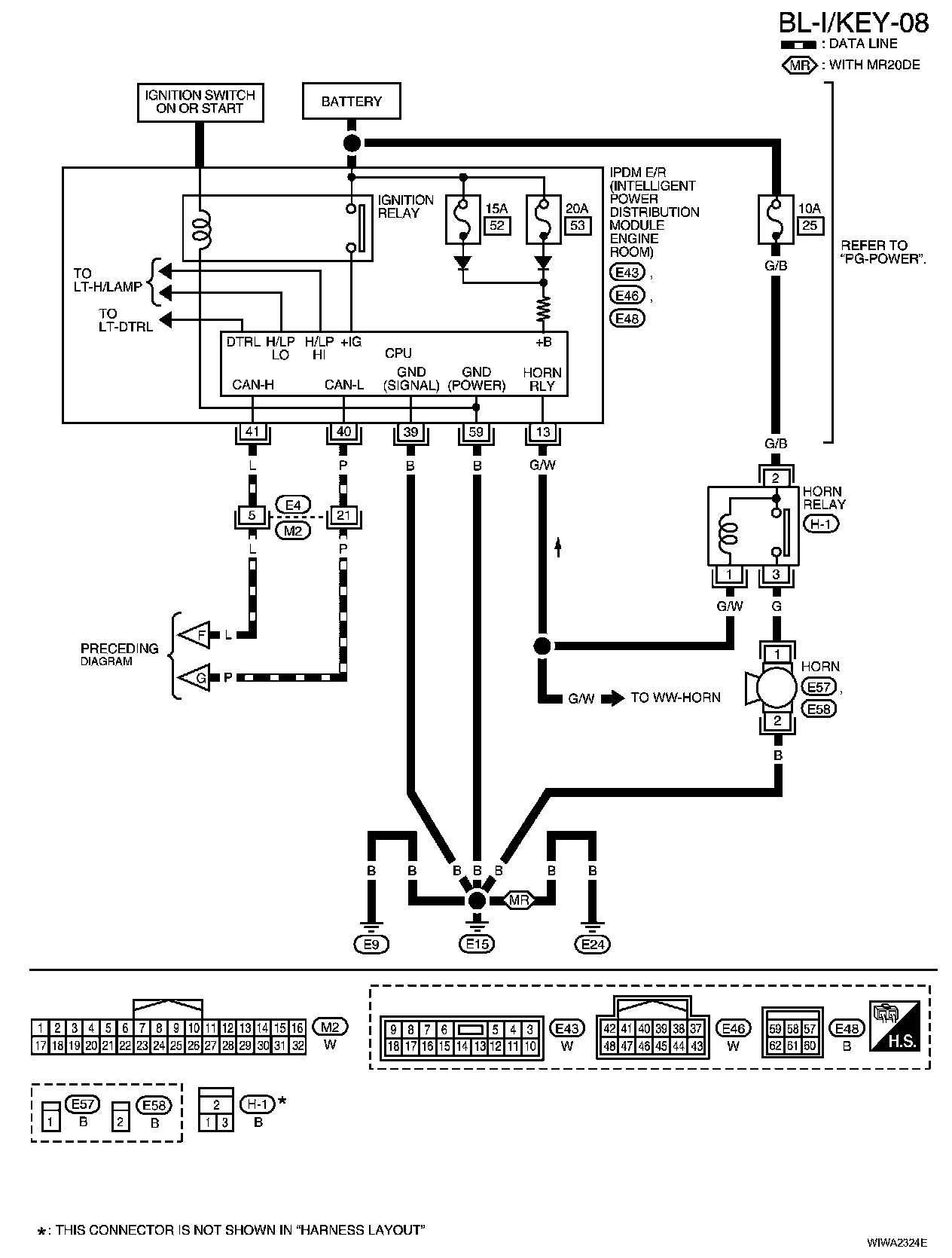

BL-I/KEY-08:

Wiring Diagram - I/KEY -

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
