Front Fender: Service and Repair

FRONT FENDER

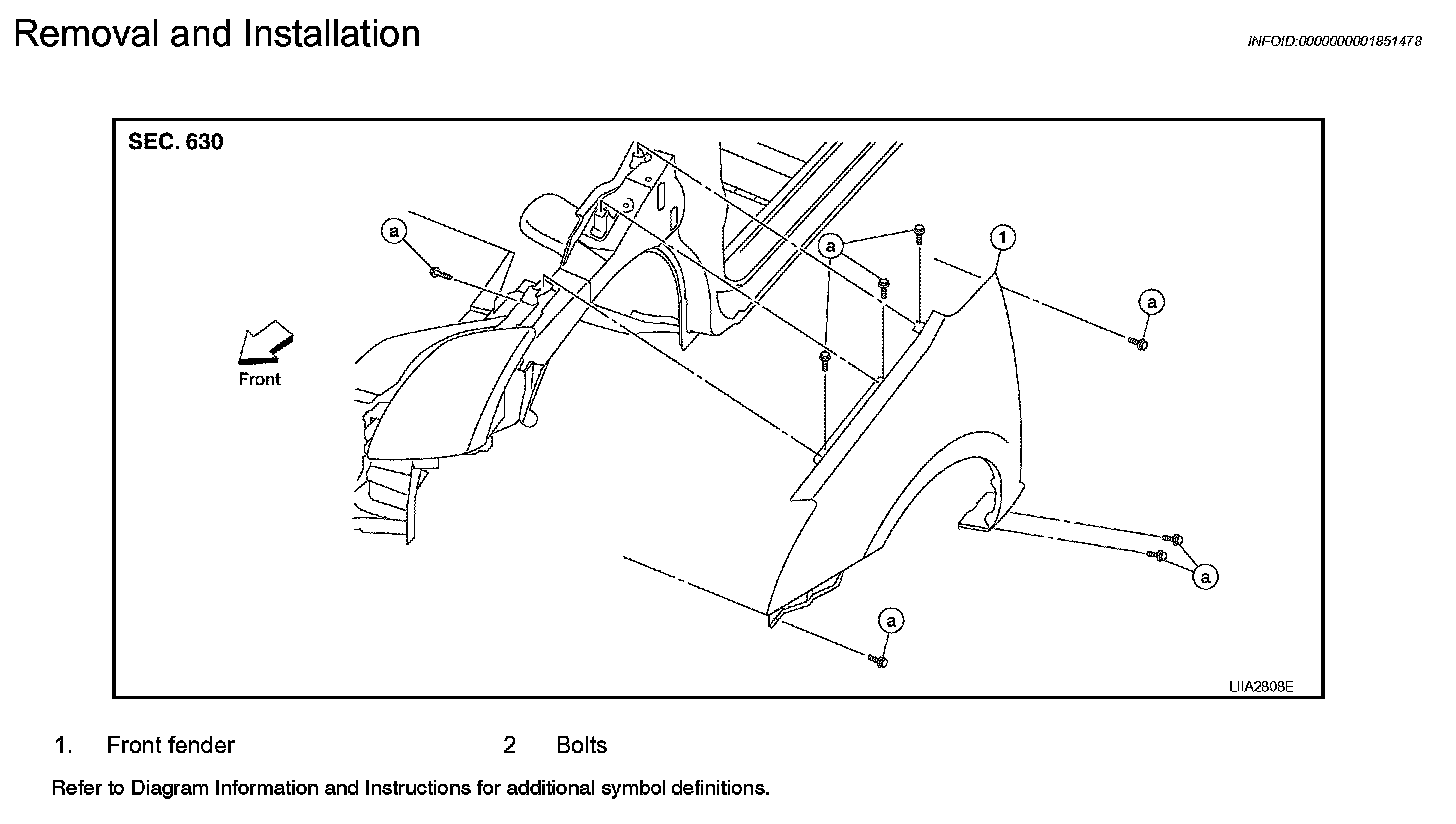

Exploded View BL-19:

Removal and Installation

REMOVAL
1. Remove the headlamp assemblies.
2. Remove the cowl top cover (LH/RH).
3. Remove the front fender protector.
4. Remove the bolts (a) and the front fender (1).

CAUTION: While removing use a shop cloth to protect the vehicle body from damage.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION: After installing, apply touch-up paint onto the head of the front fender bolts.
