Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Testing and Inspection >> Component Tests and General Diagnostics >> Check Trunk Lid Opener Actuator Circuit

Check Trunk Lid Opener Actuator Circuit

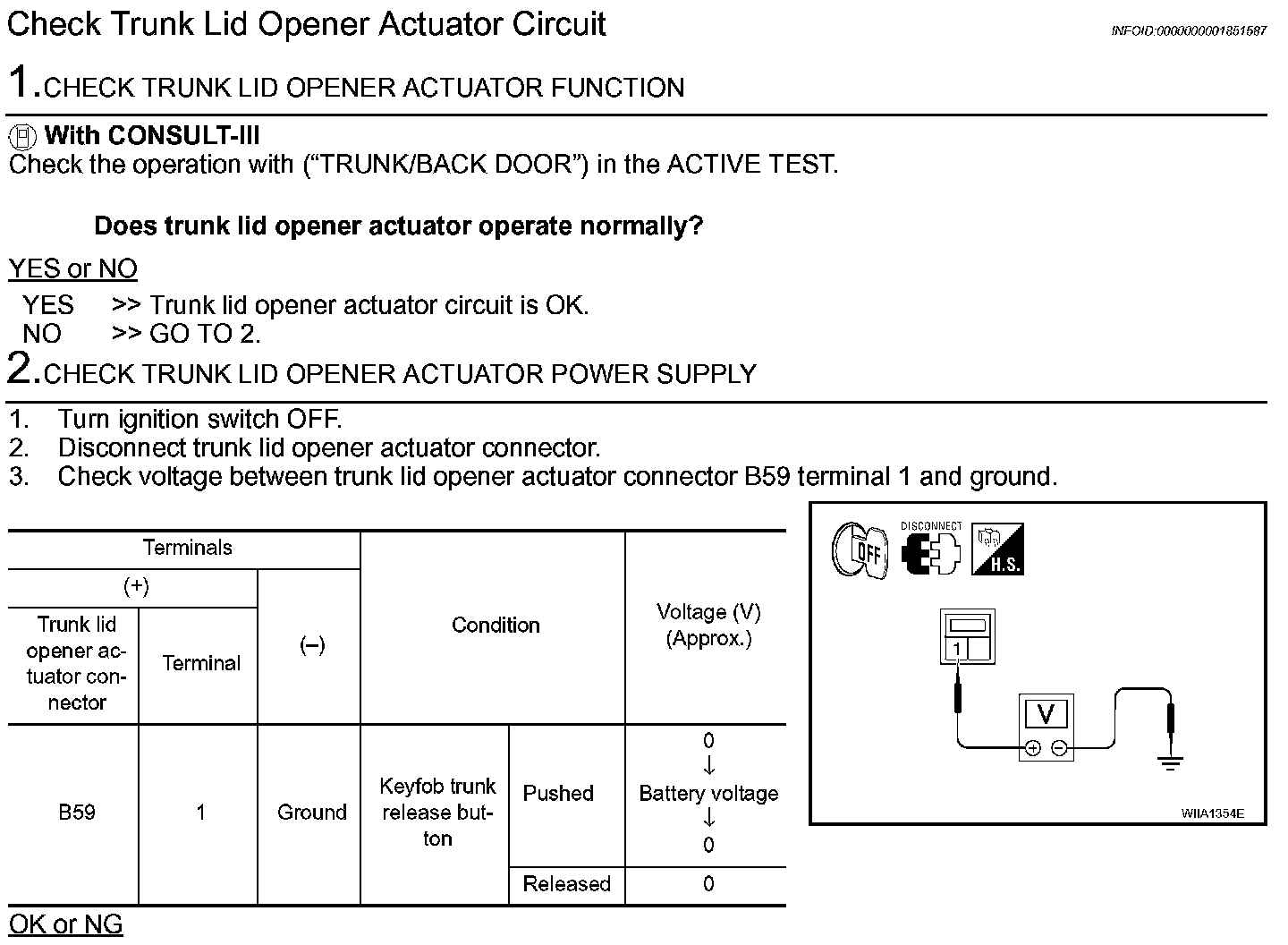

Step 1-2:

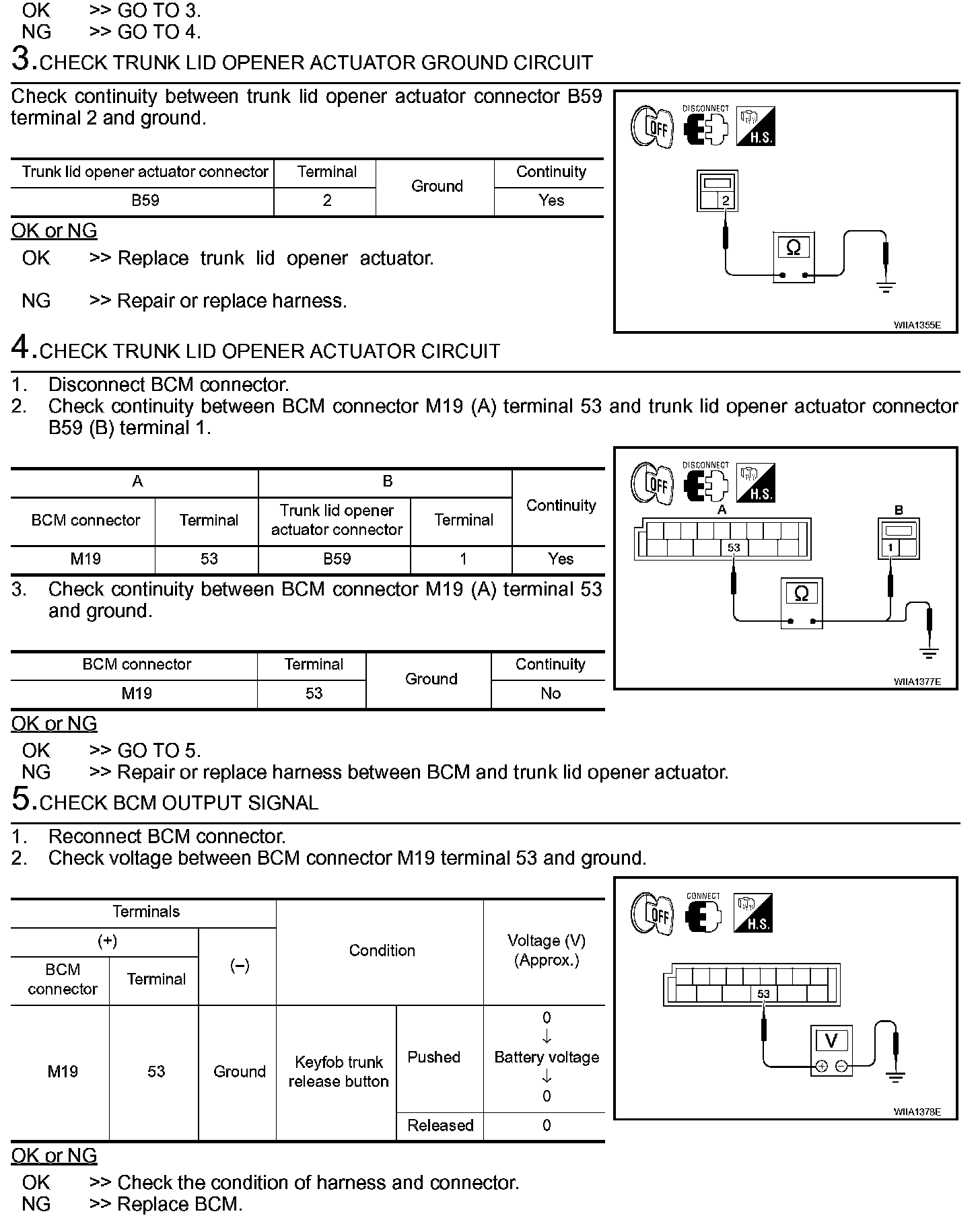

Step 2 (Continued)-5:
