Hood: Service and Repair

Removal and Installation

HOOD ASSEMBLY




Removal

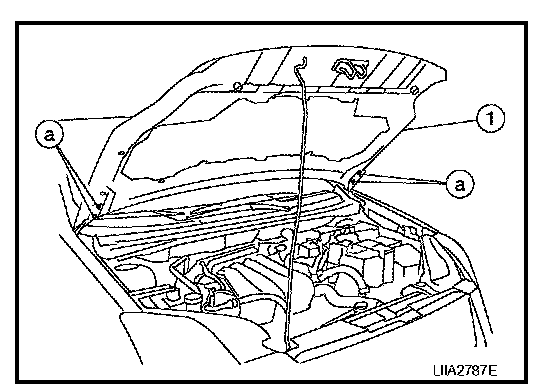

1. Remove the nuts (a) and the hood assembly (1).

CAUTION: Two technicians should be used to avoid damaging the hood or windshield during removal.

Hood hinge nuts : 14.6 N.m (1.5 kg-m, 11 ft-lb)

Installation
Installation is in the reverse order of removal.

CAUTION: After installing, perform fitting adjustment. Refer to BL-13, "Fitting Adjustment". Adjustments
