Terminal and Reference Value For Audio Unit (Mid System)

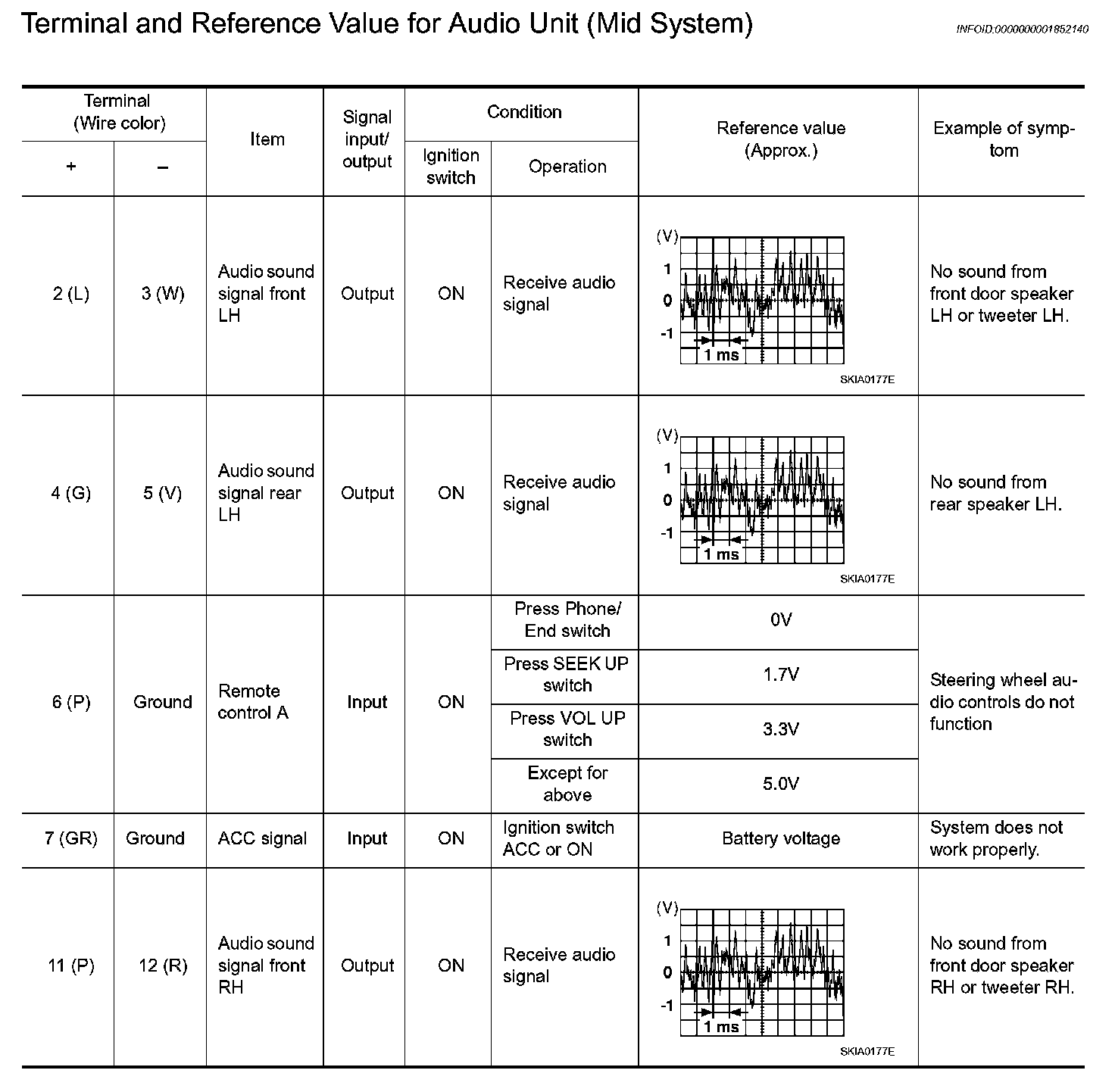

Terminal and Reference Value For Audio Unit (Mid System) (Part 1):

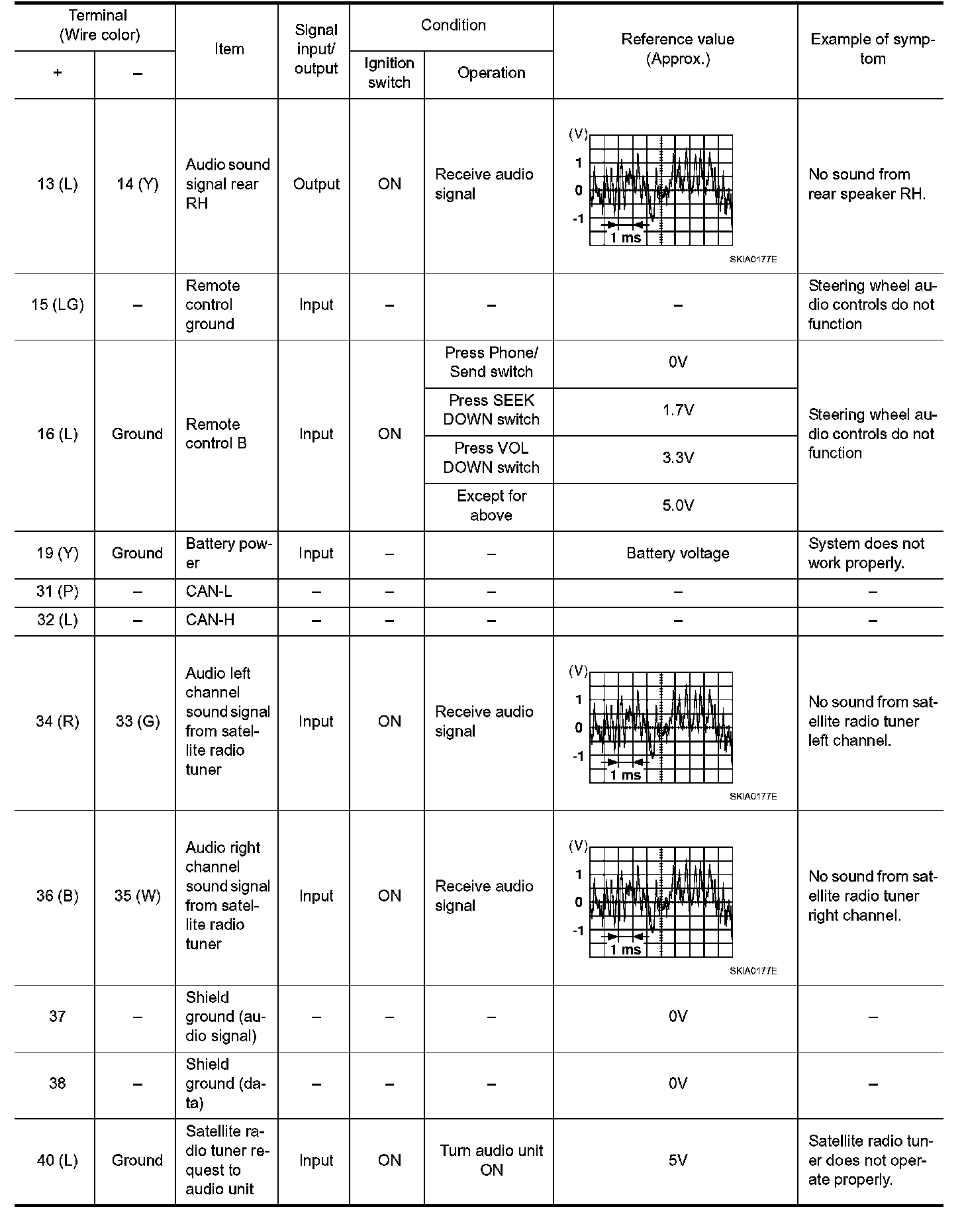

Terminal and Reference Value For Audio Unit (Mid System) (Part 2):

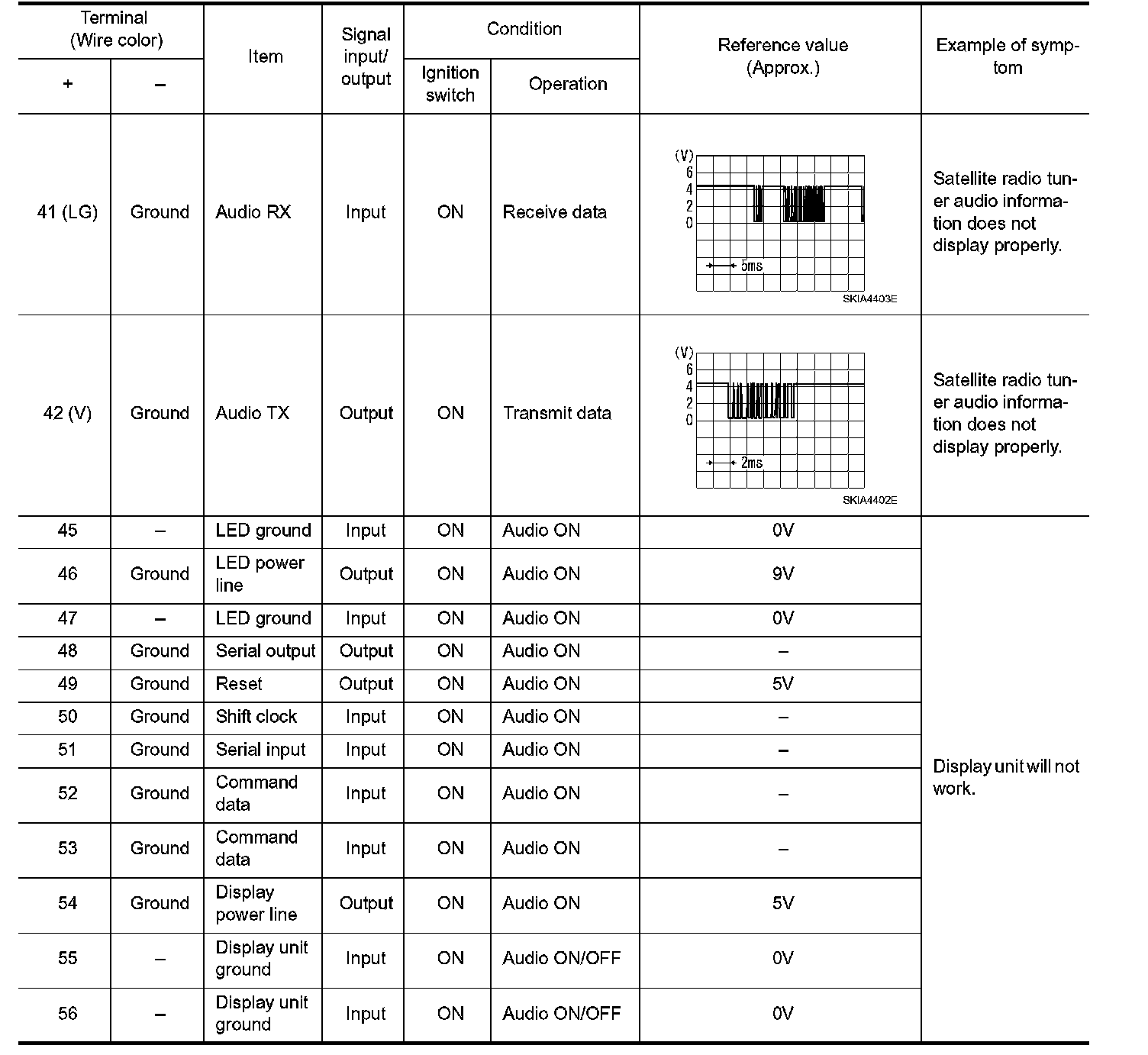

Terminal and Reference Value For Audio Unit (Mid System) (Part 3):
