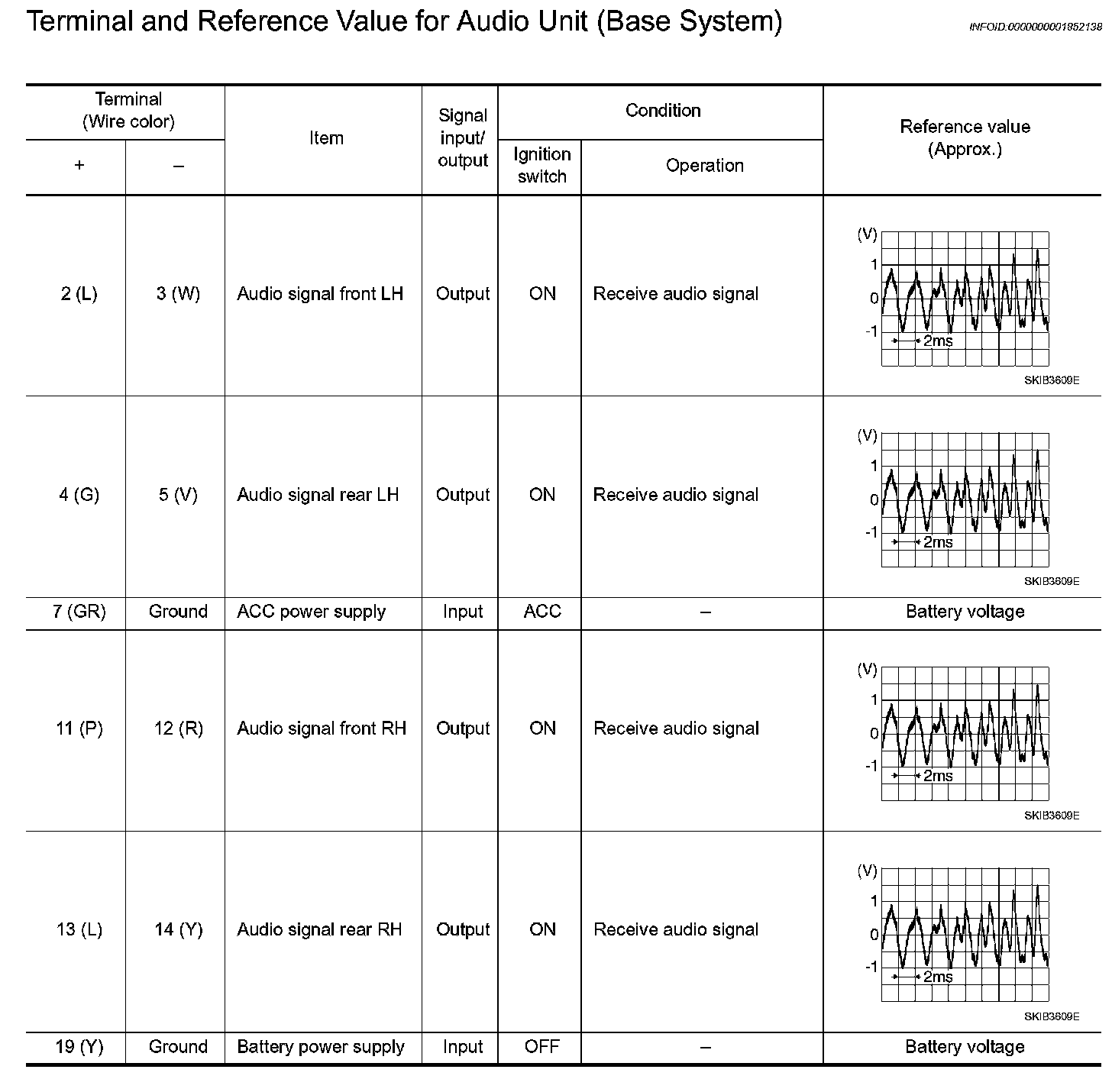

Terminal and Reference Value For Audio Unit (Base System)

Terminal and Reference Value For Audio Unit (Base System):
