Terminal and Reference Value For Audio Amplifier (Premium System)

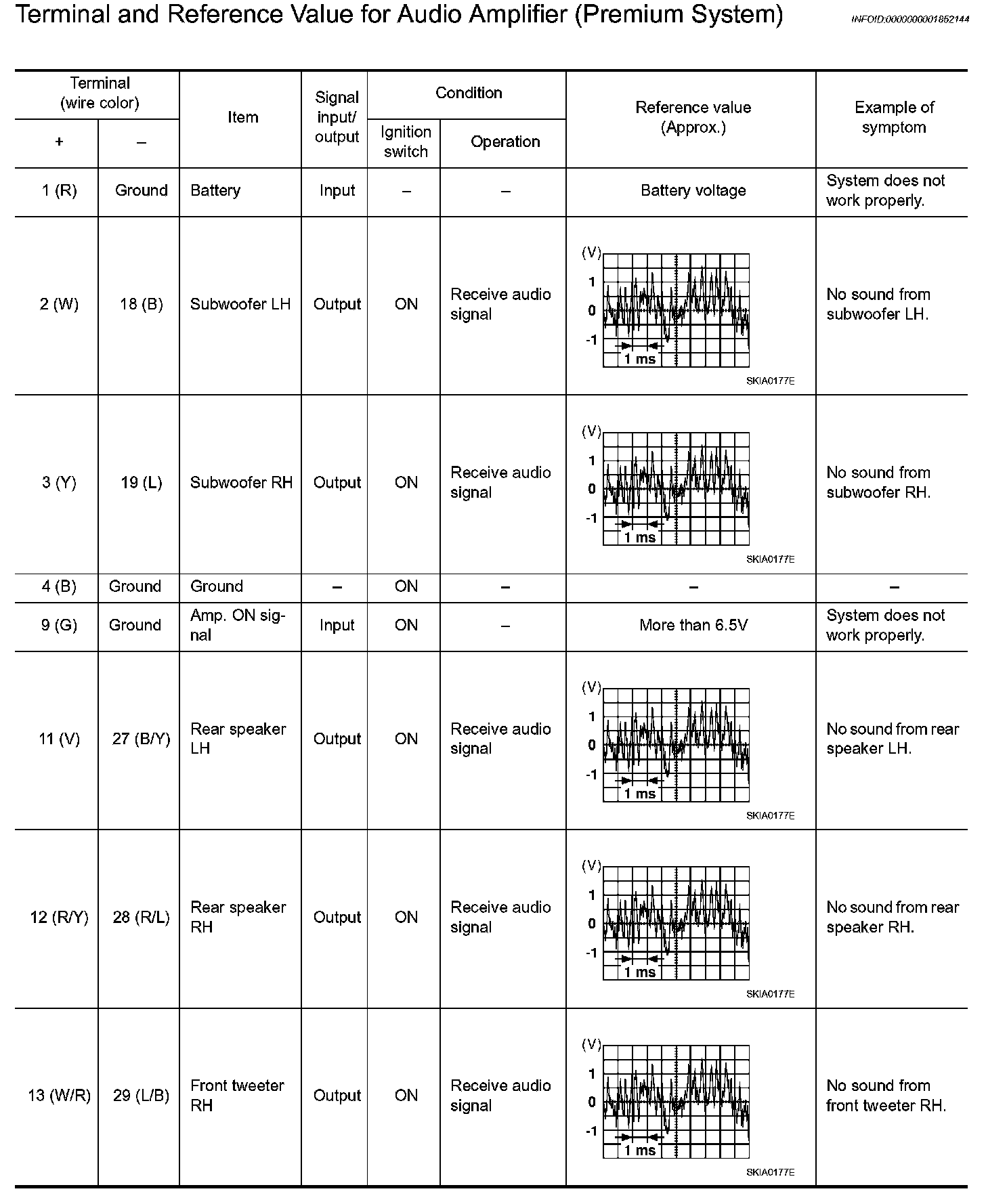

Terminal and Reference Value for Audio Amplifier (Premium System) (Part 1):

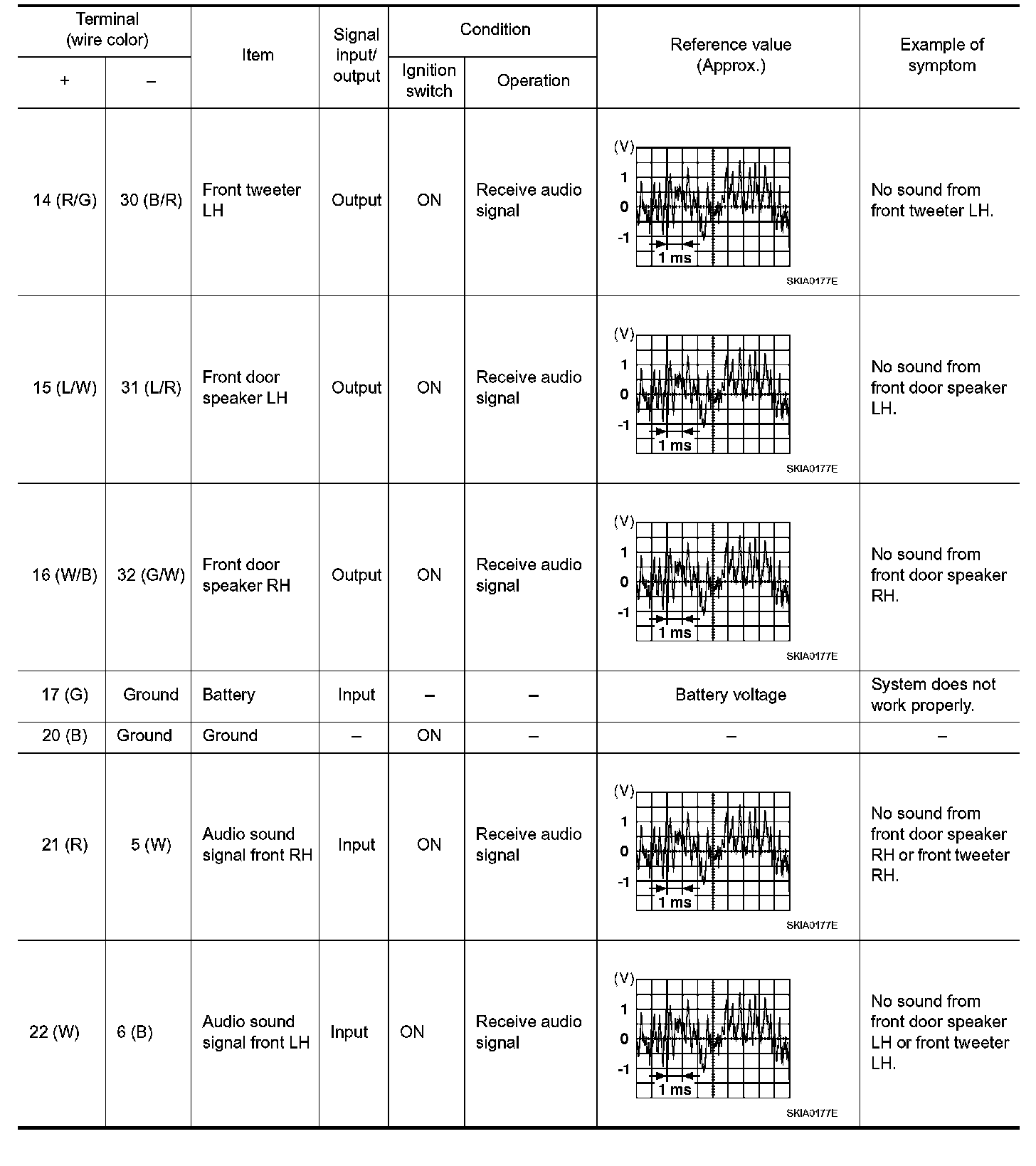

Terminal and Reference Value for Audio Amplifier (Premium System) (Part 2):



Terminal and Reference Value for Audio Amplifier (Premium System) (Part 3):
