Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Component Tests and General Diagnostics >> Sound Is Not Heard From Rear Speaker (Base and Mid System)

Sound Is Not Heard From Rear Speaker (Base and Mid System)

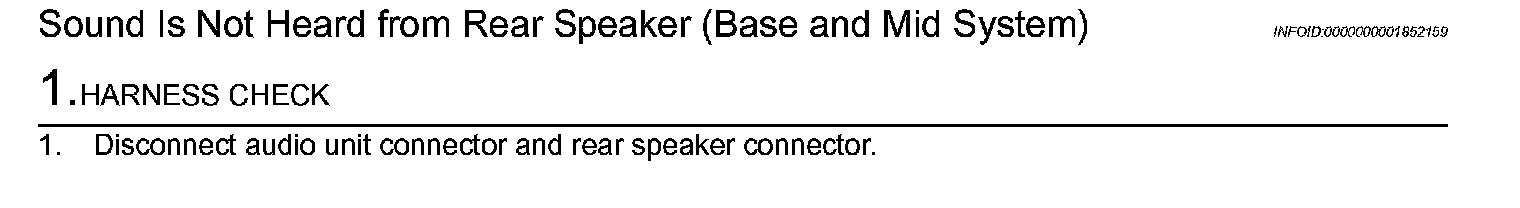

Step 1:

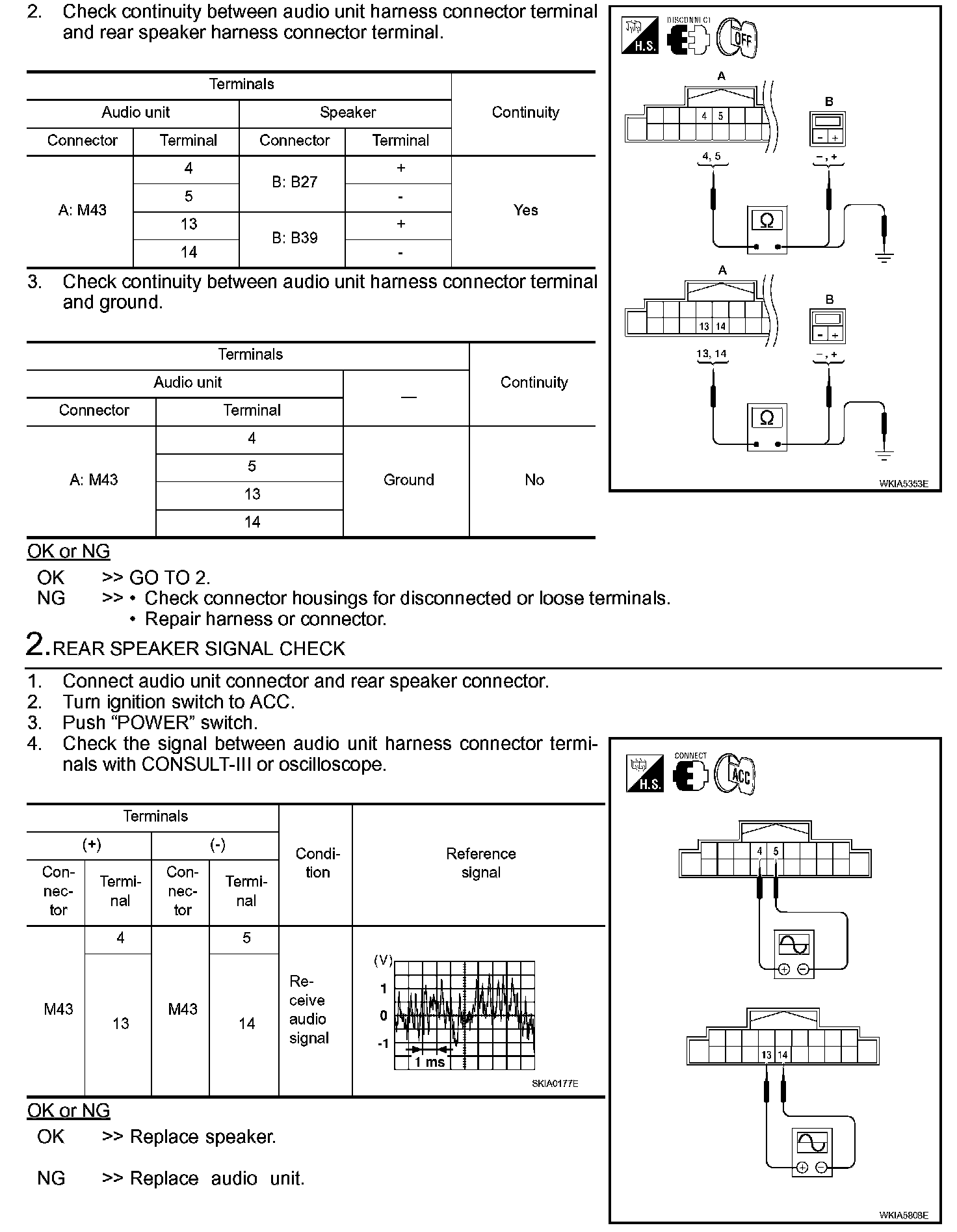

Step 1 (Continued)-2:
