Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Component Tests and General Diagnostics >> Sound Is Not Heard From Front Door Speaker or Front Tweeter (Premium System)

Sound Is Not Heard From Front Door Speaker or Front Tweeter (Premium System)

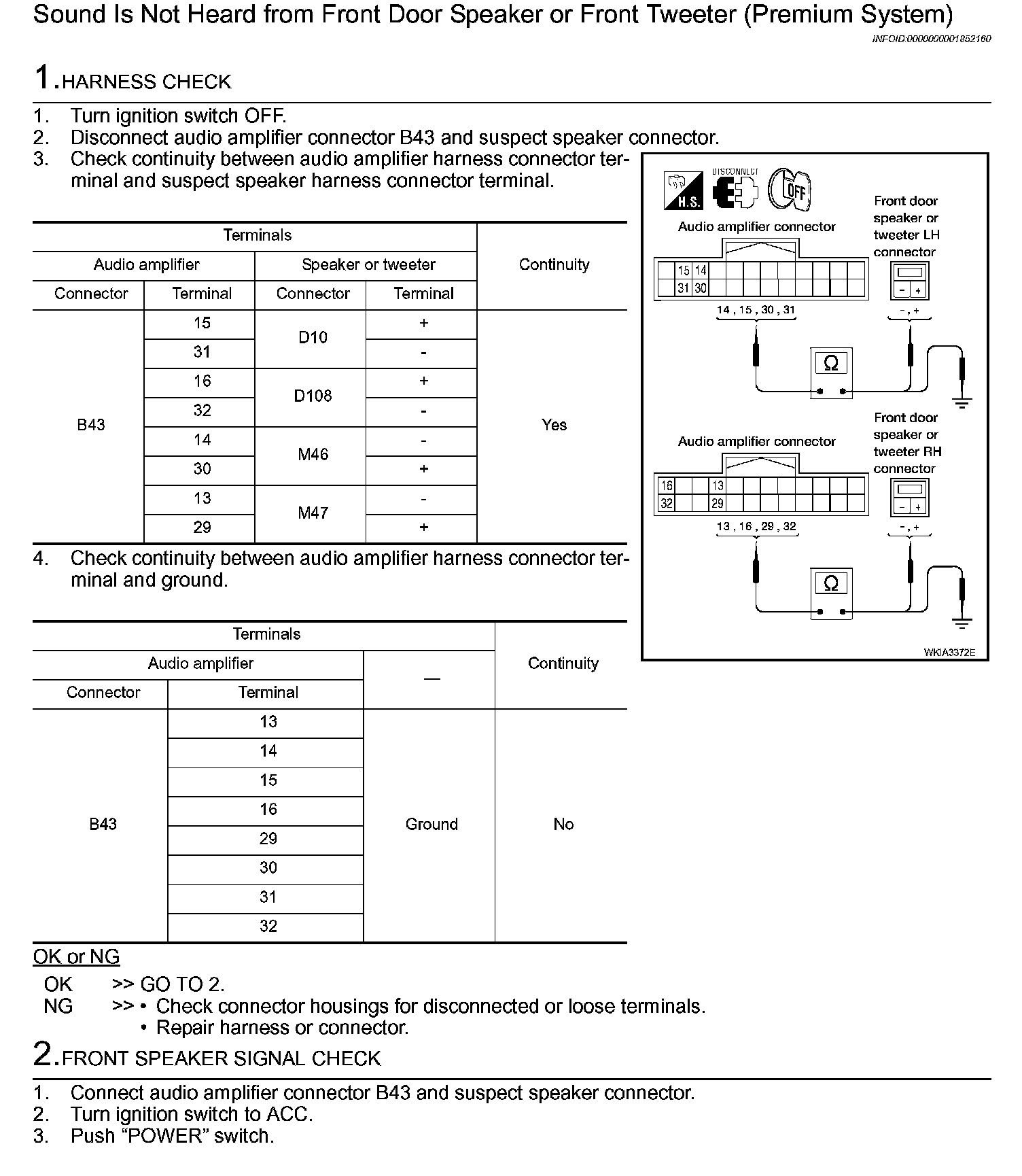

Step 1-2:

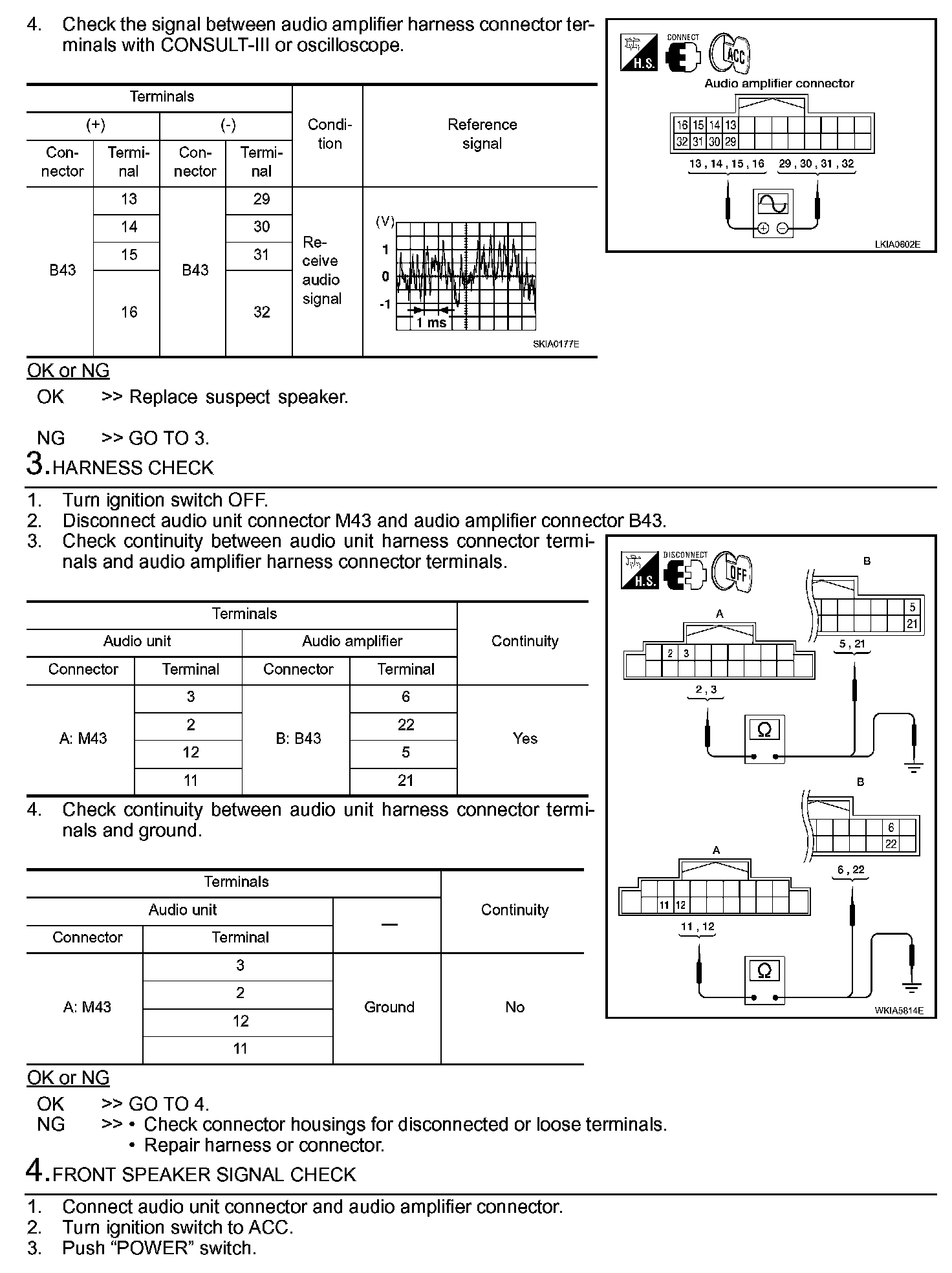

Step 2 (Continued)-4:

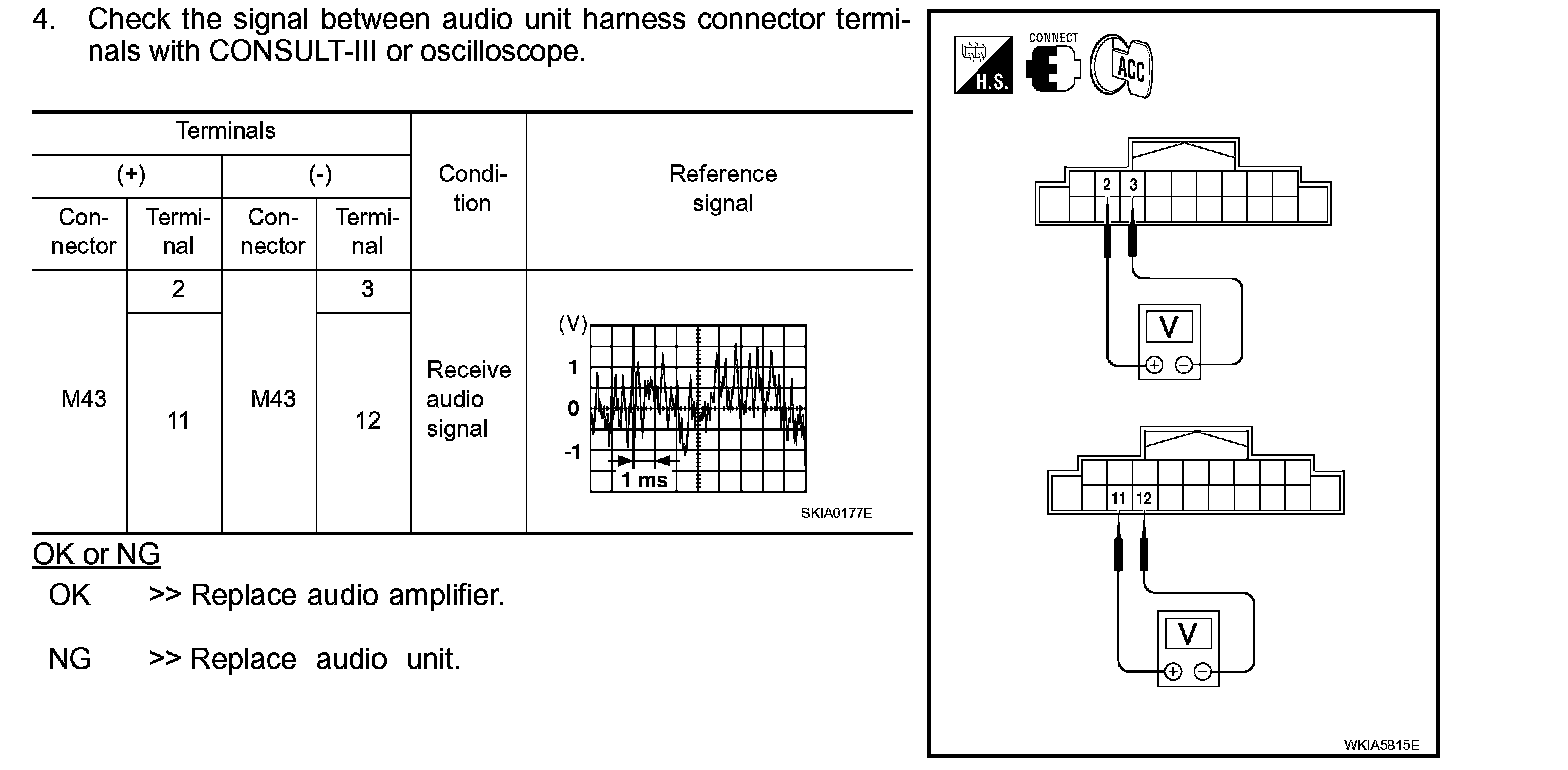

Step 4 (Continued):
