Terminal and Reference Value For Bluetooth Control Unit
Terminal and Reference Value For Bluetooth Control Unit

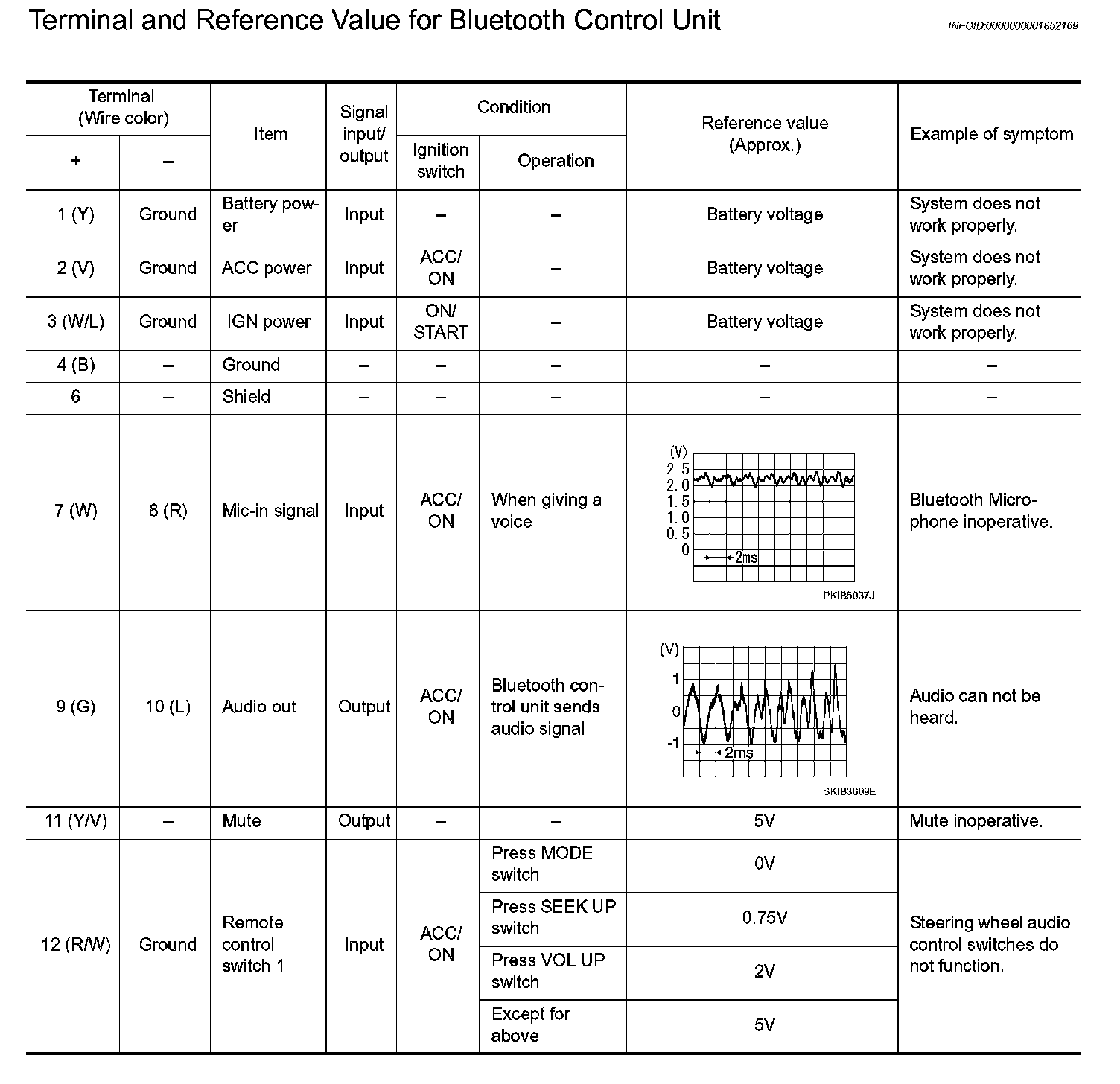

Terminal Reference Value for Bluetooth Control Unit (Part 1):

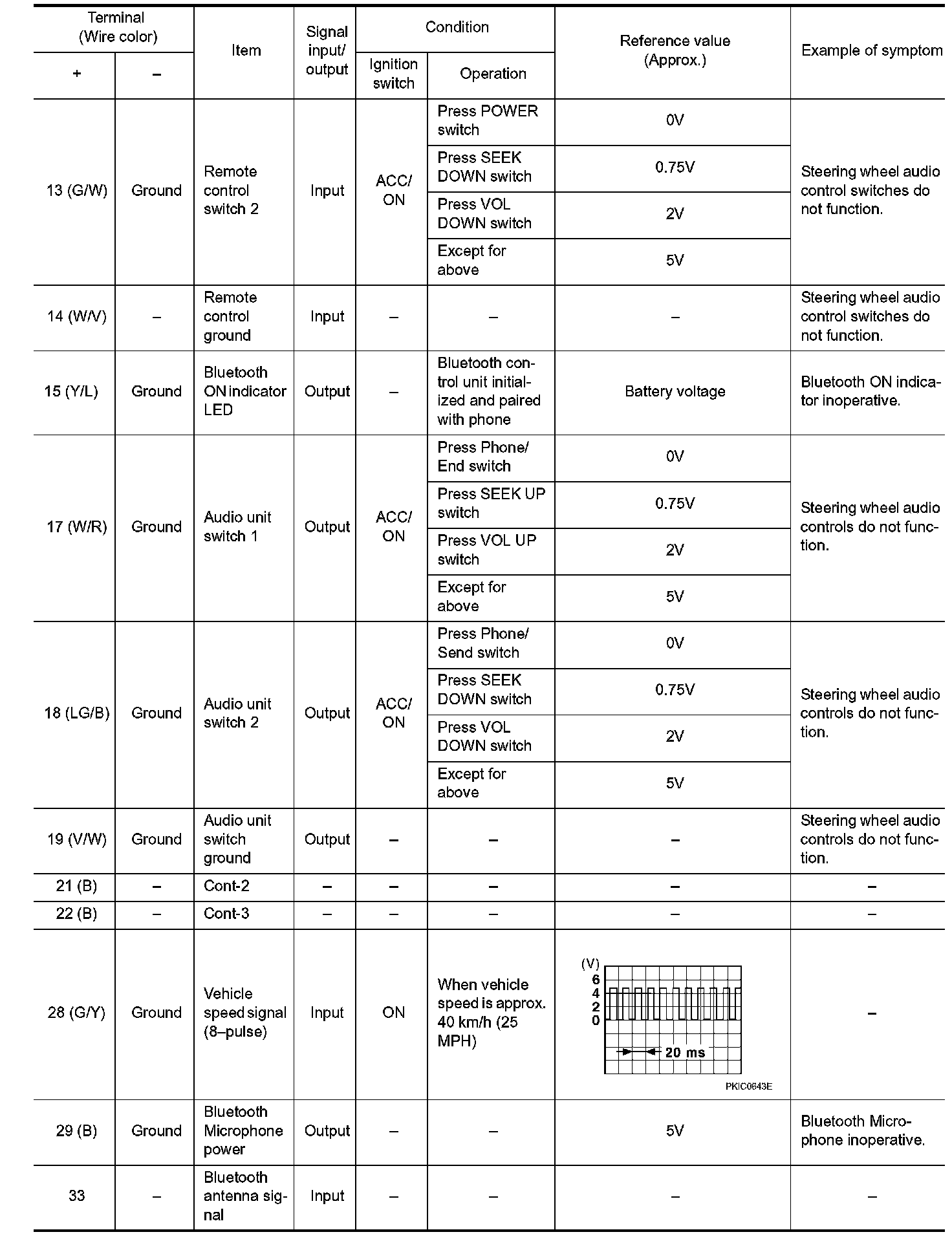

Terminal Reference Value for Bluetooth Control Unit (Part 2):
