Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> NATS (Nissan Anti-Theft System) >> Trouble Diagnosis >> Symptom Matrix Chart 1

Symptom Matrix Chart 1

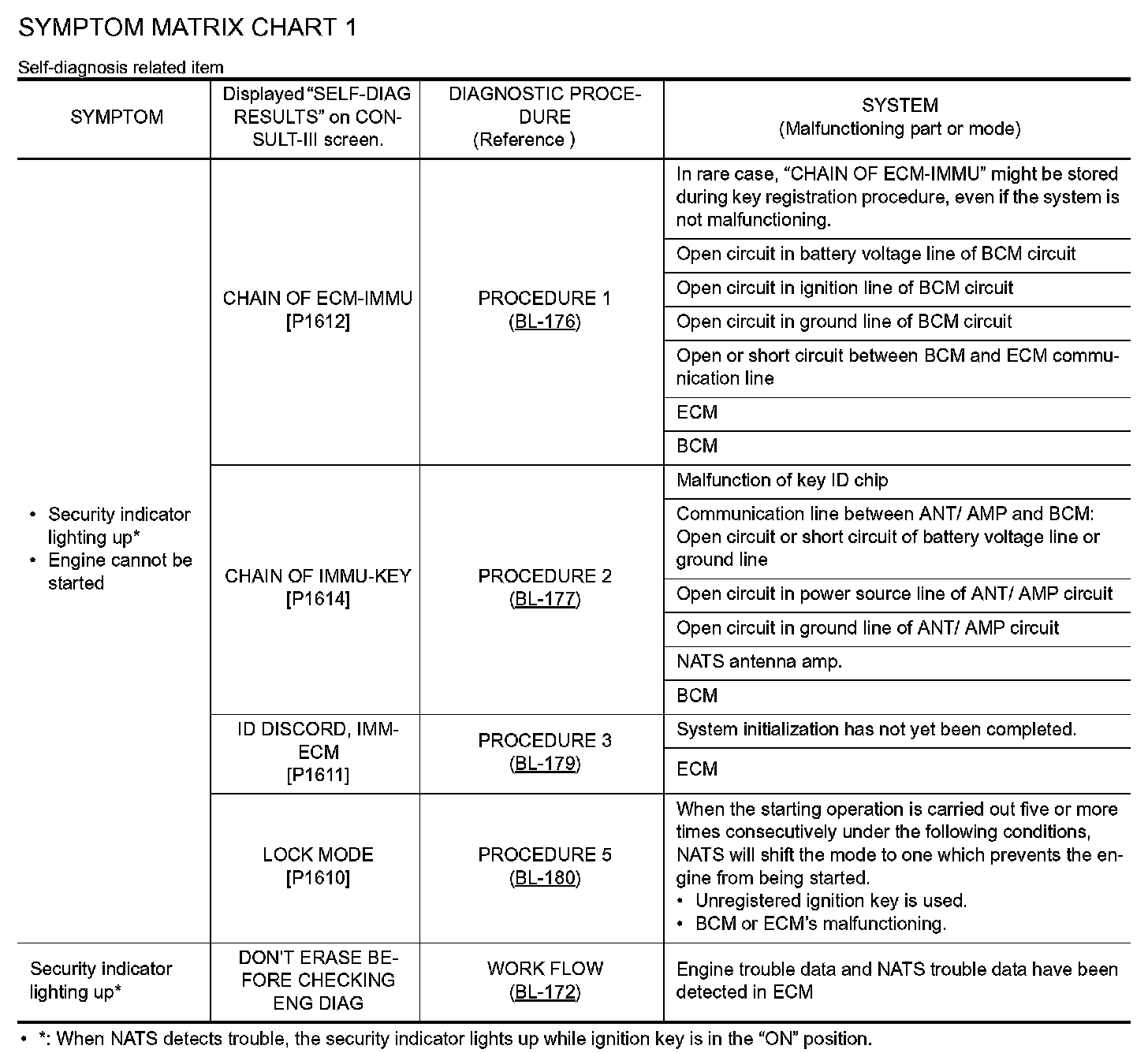

Symptom Matrix Chart 1:
