Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> NATS (Nissan Anti-Theft System) >> Work Flow

Work Flow

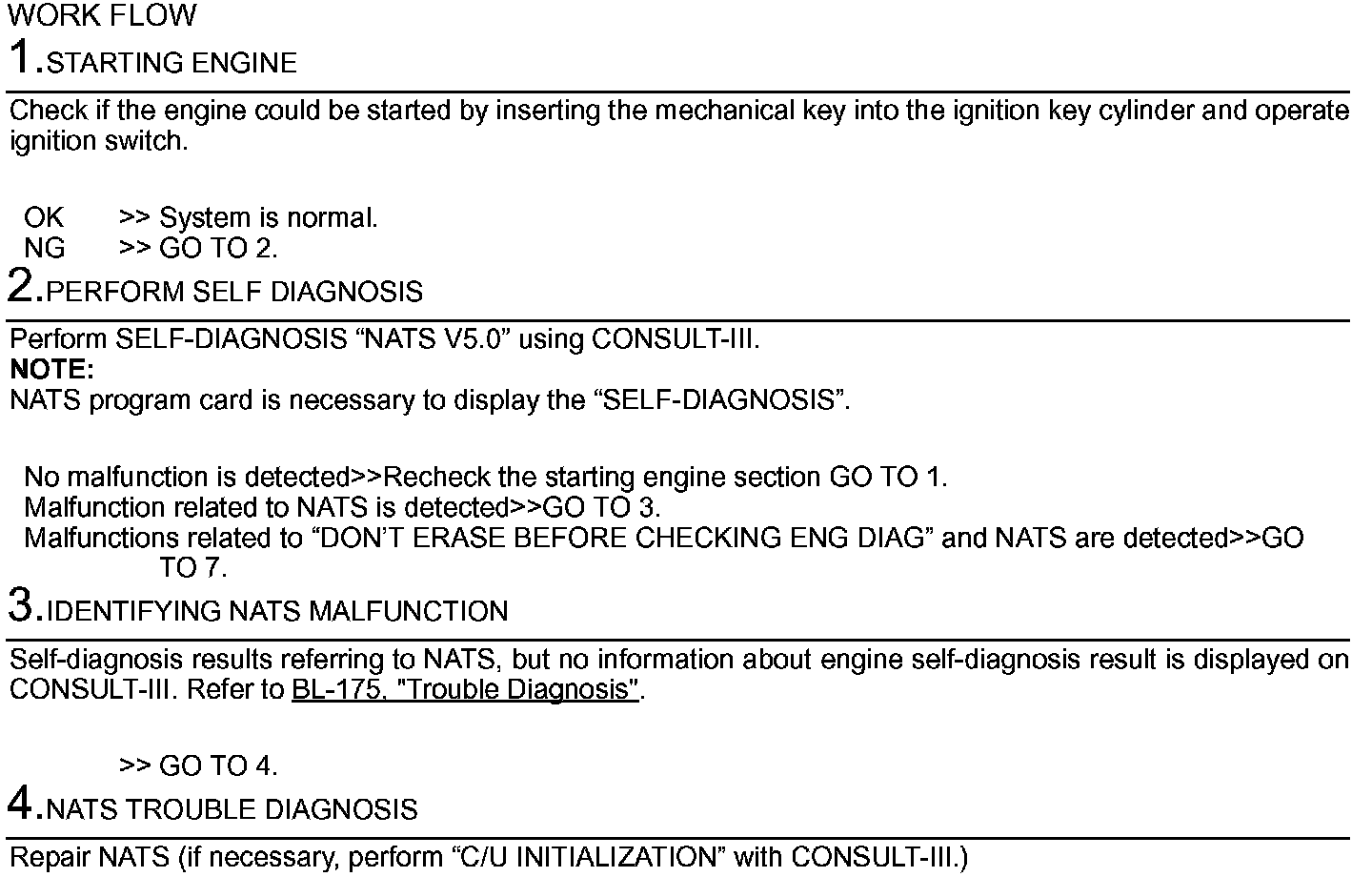

Step 1-4:

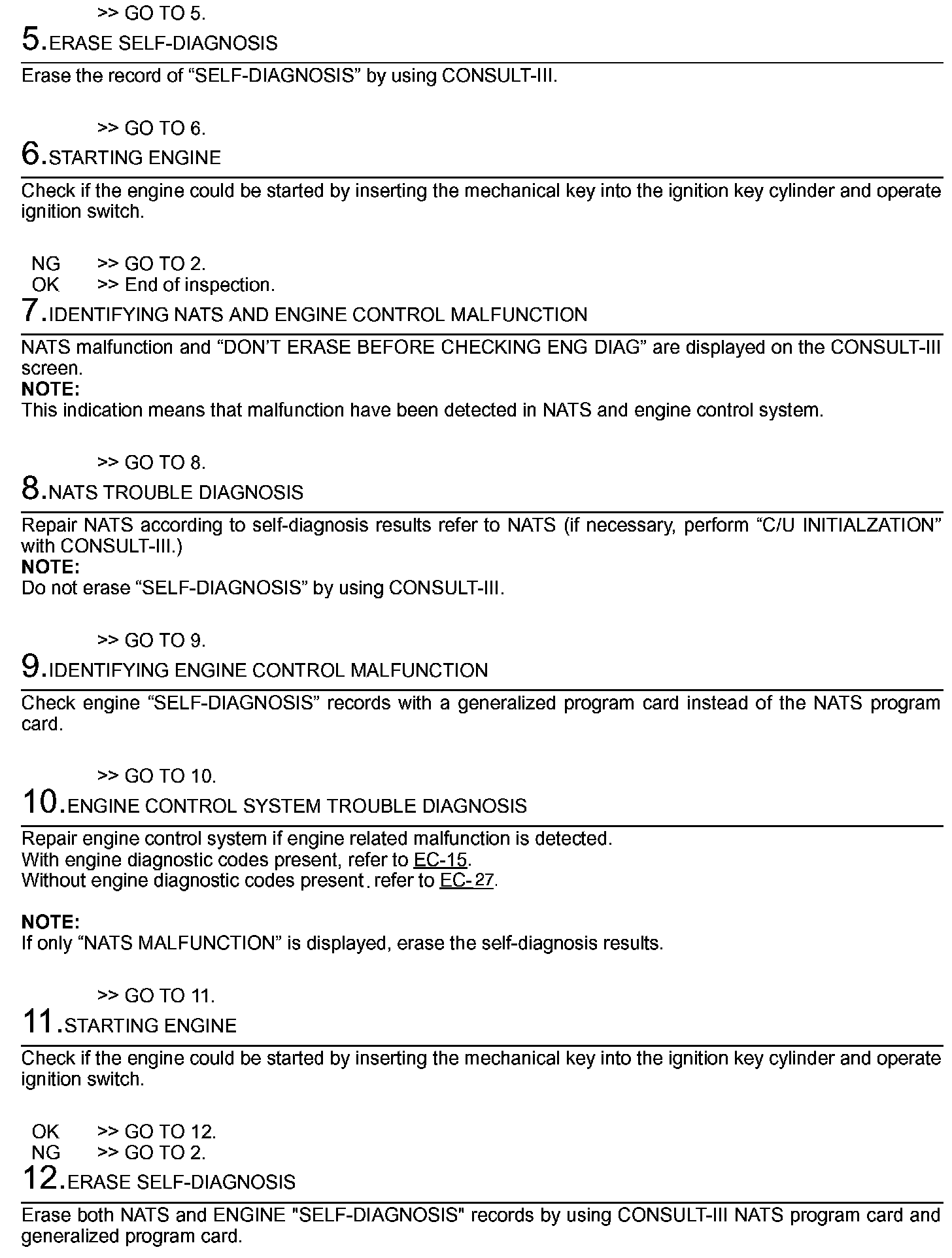

Step 4 (Continued)-12:

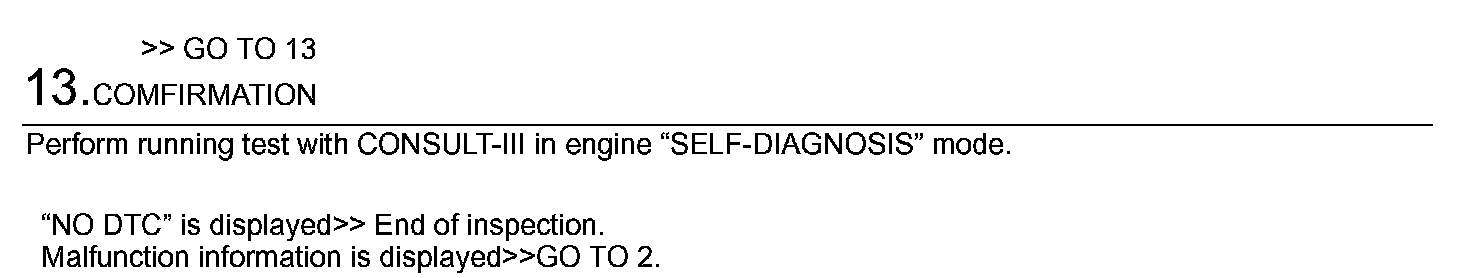

Step 12 (Continued)-13:
