Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> NATS (Nissan Anti-Theft System) >> Preliminary Check

Preliminary Check

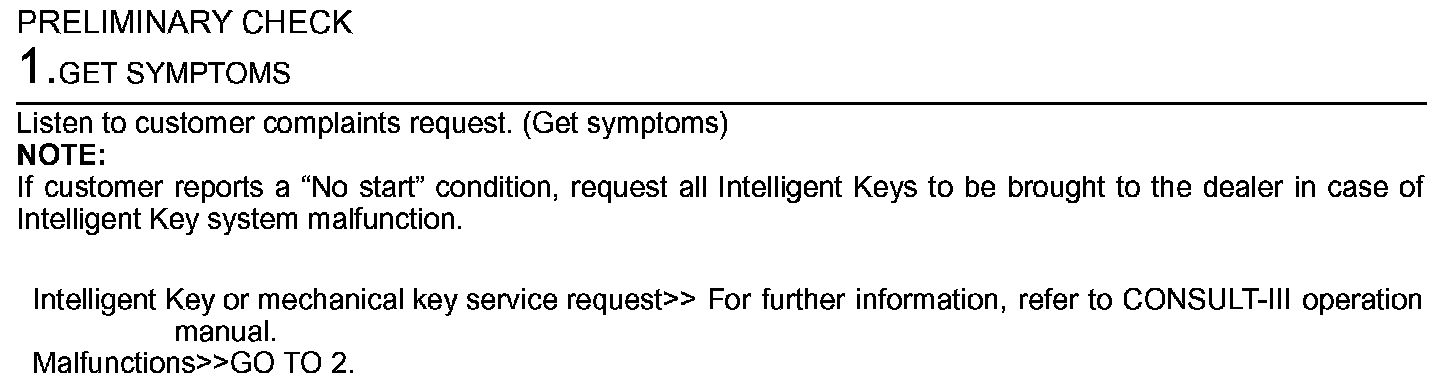

Step 1:

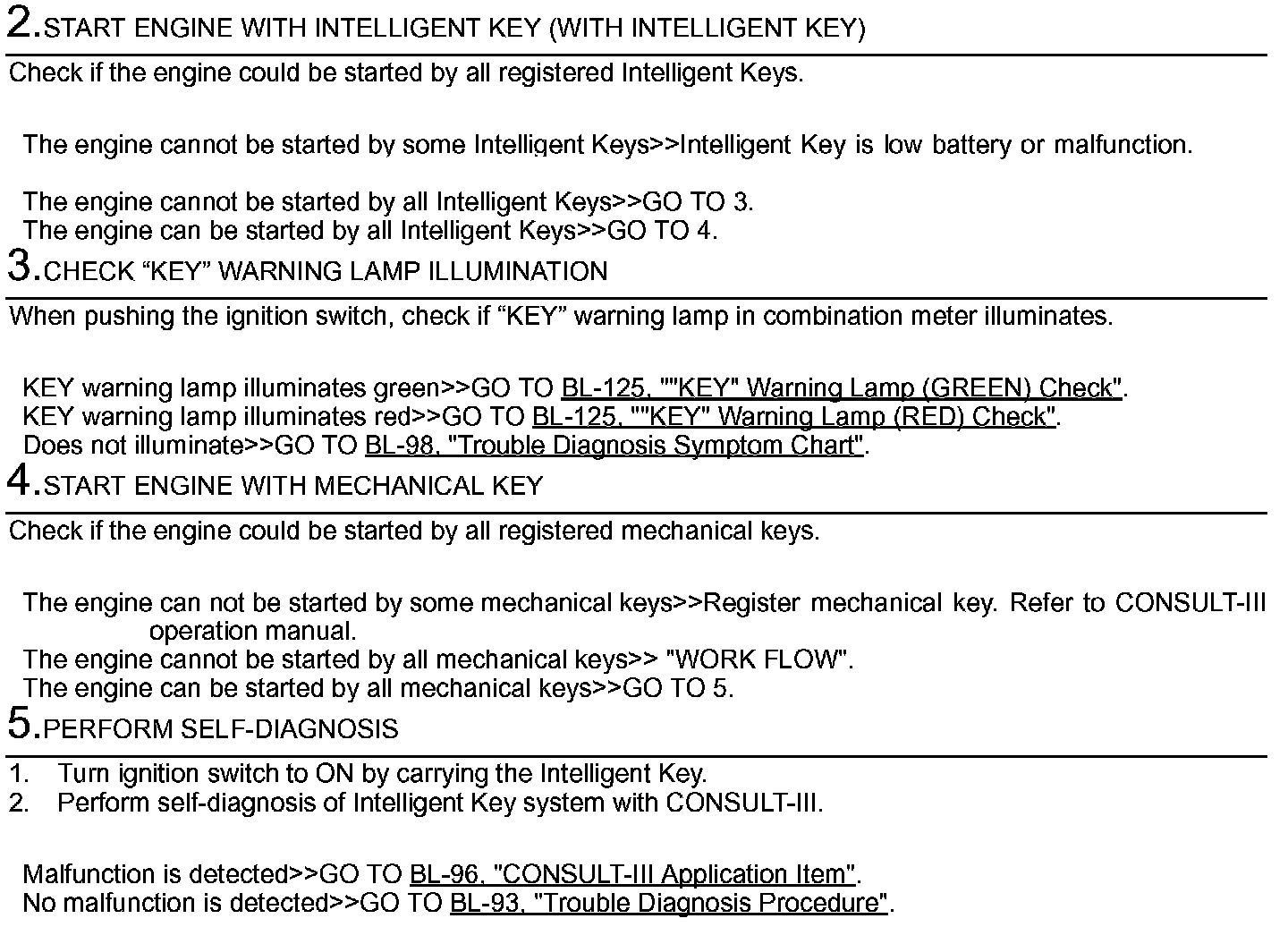

Step 2-5:
