Terminal and Reference Value For Intelligent Key Unit

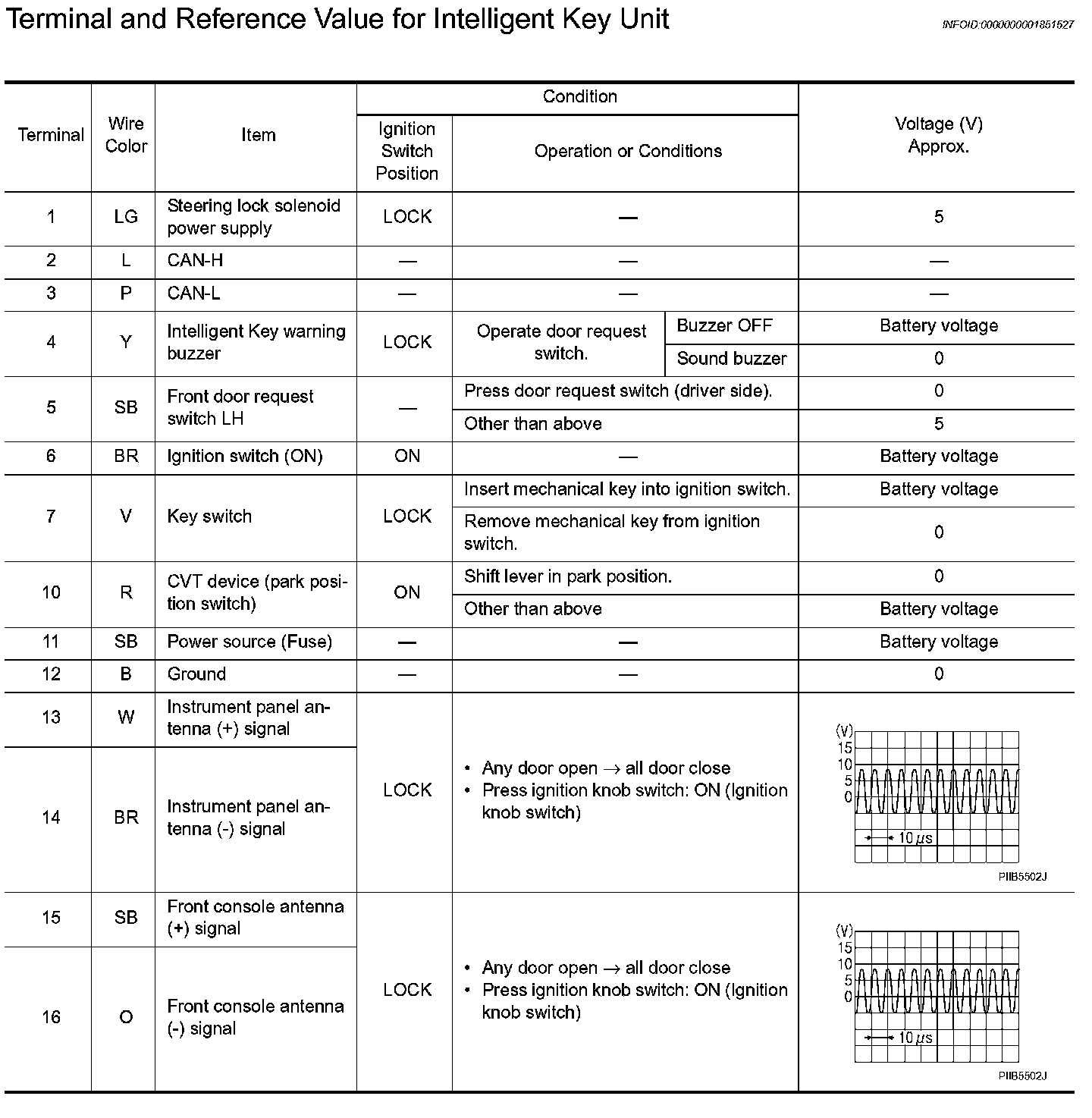

Terminal And Reference Value For Intelligent Key Unit (Part 1):

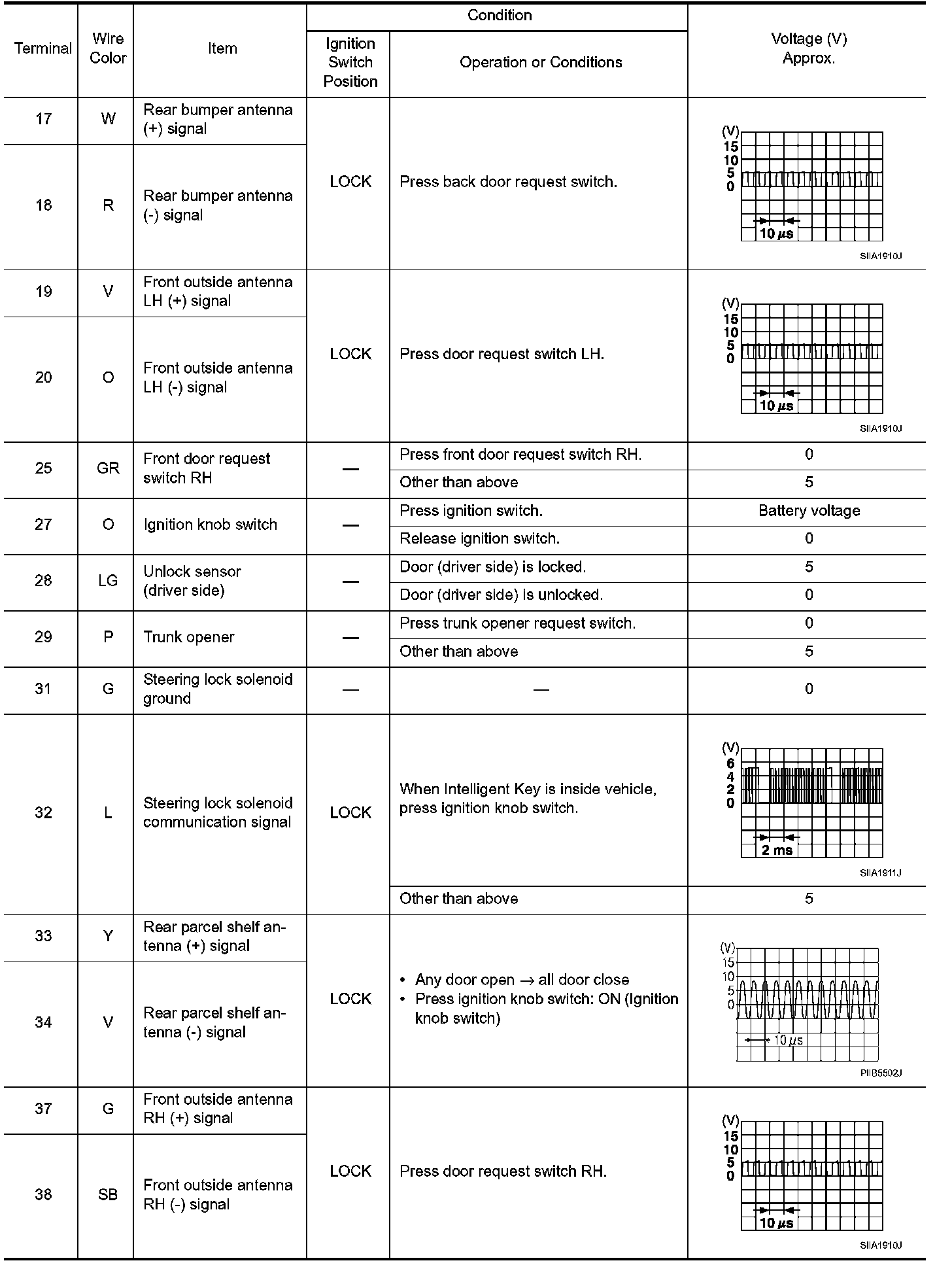

Terminal And Reference Value For Intelligent Key Unit (Part 2):

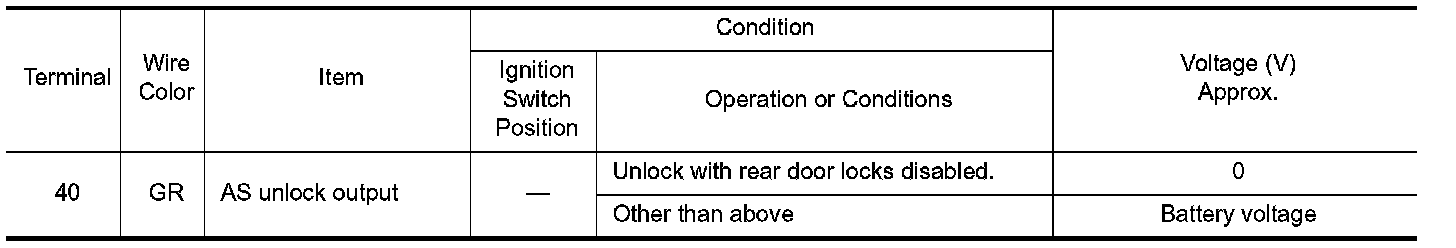

Terminal And Reference Value For Intelligent Key Unit (Part 3):
