Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Testing and Inspection >> Component Tests and General Diagnostics >> Intelligent Key System >> CVT Device (Park Position Switch) Check

CVT Device (Park Position Switch) Check

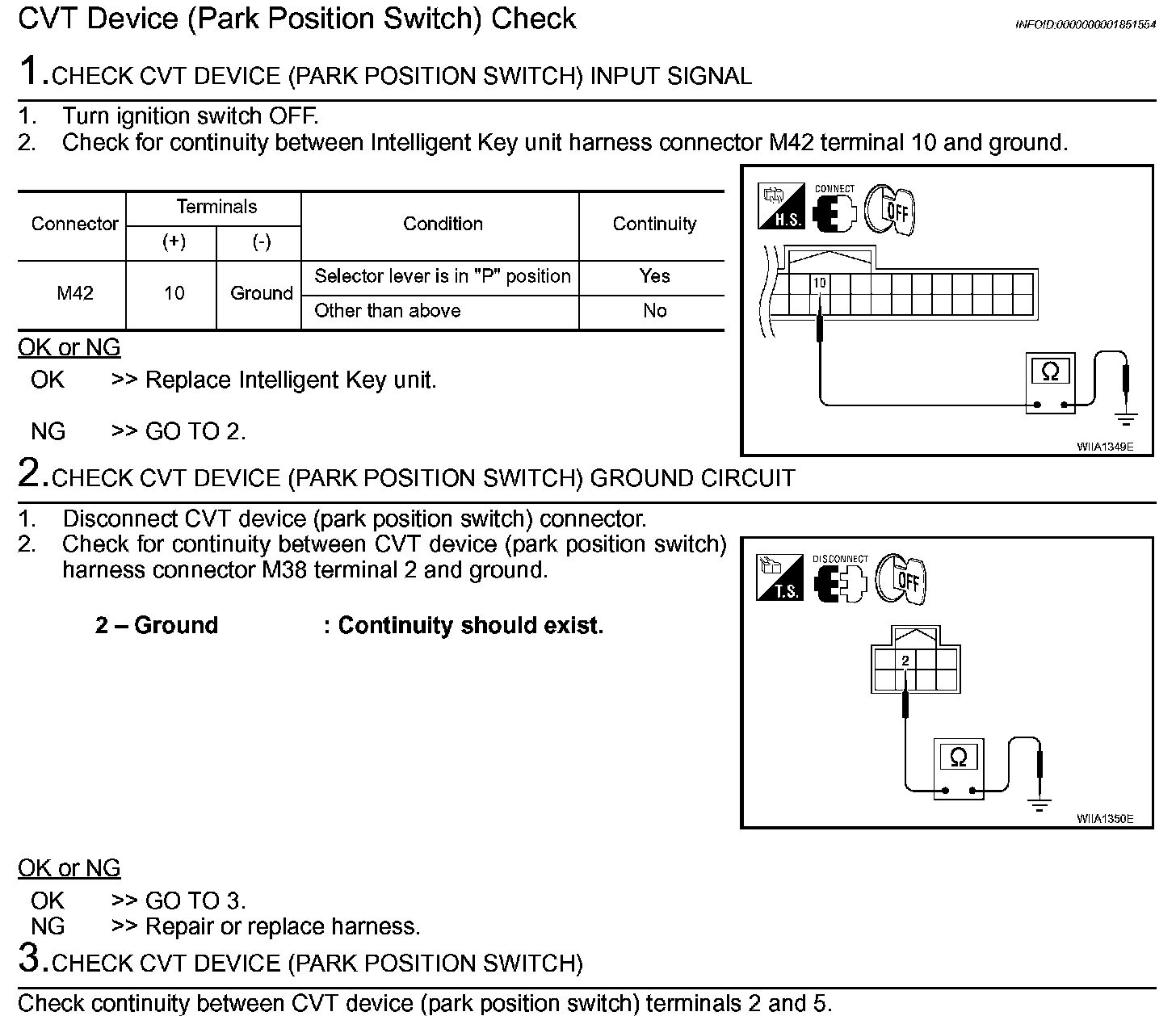

Step 1-3:

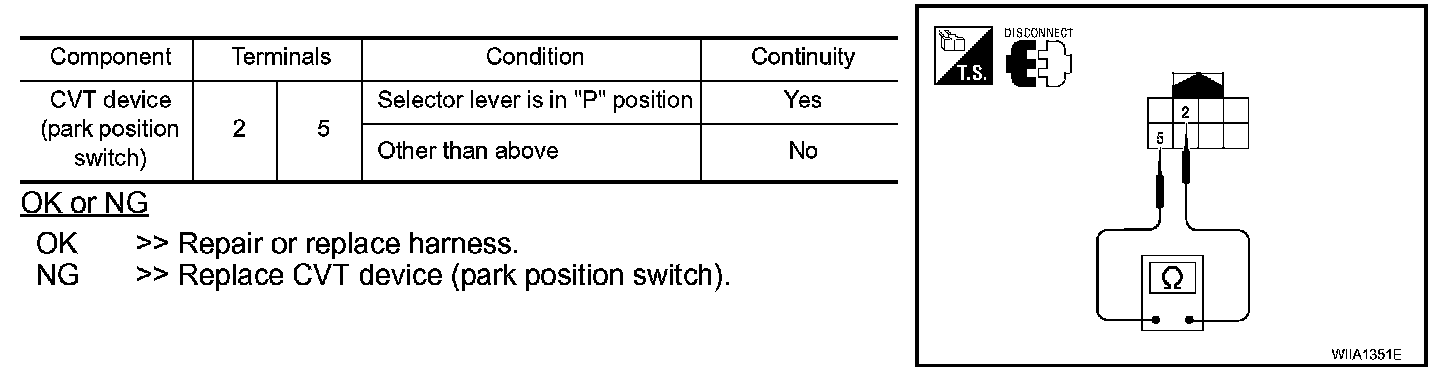

Step 3 (Continued):
