P0340

DTC P0340 CMP SENSOR (PHASE)




Component Description
The camshaft position sensor (PHASE) senses the protrusion of camshaft (INT) to identify a particular cylinder. The camshaft position sensor (PHASE) senses the piston position. When the crankshaft position sensor (POS) system becomes inoperative, the camshaft position sensor (PHASE) provides various controls of engine parts instead, utilizing timing of cylinder identification signals. The sensor consists of a permanent magnet and Hall IC. When engine is running, the high and low parts of the teeth cause the gap with the sensor to change. The changing gap causes the magnetic field near the sensor to change. Due to the changing magnetic field, the voltage from the sensor changes.

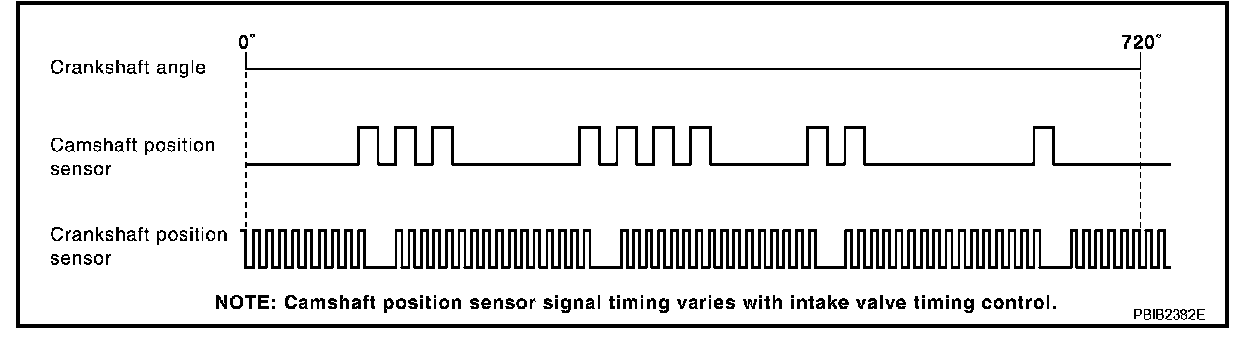

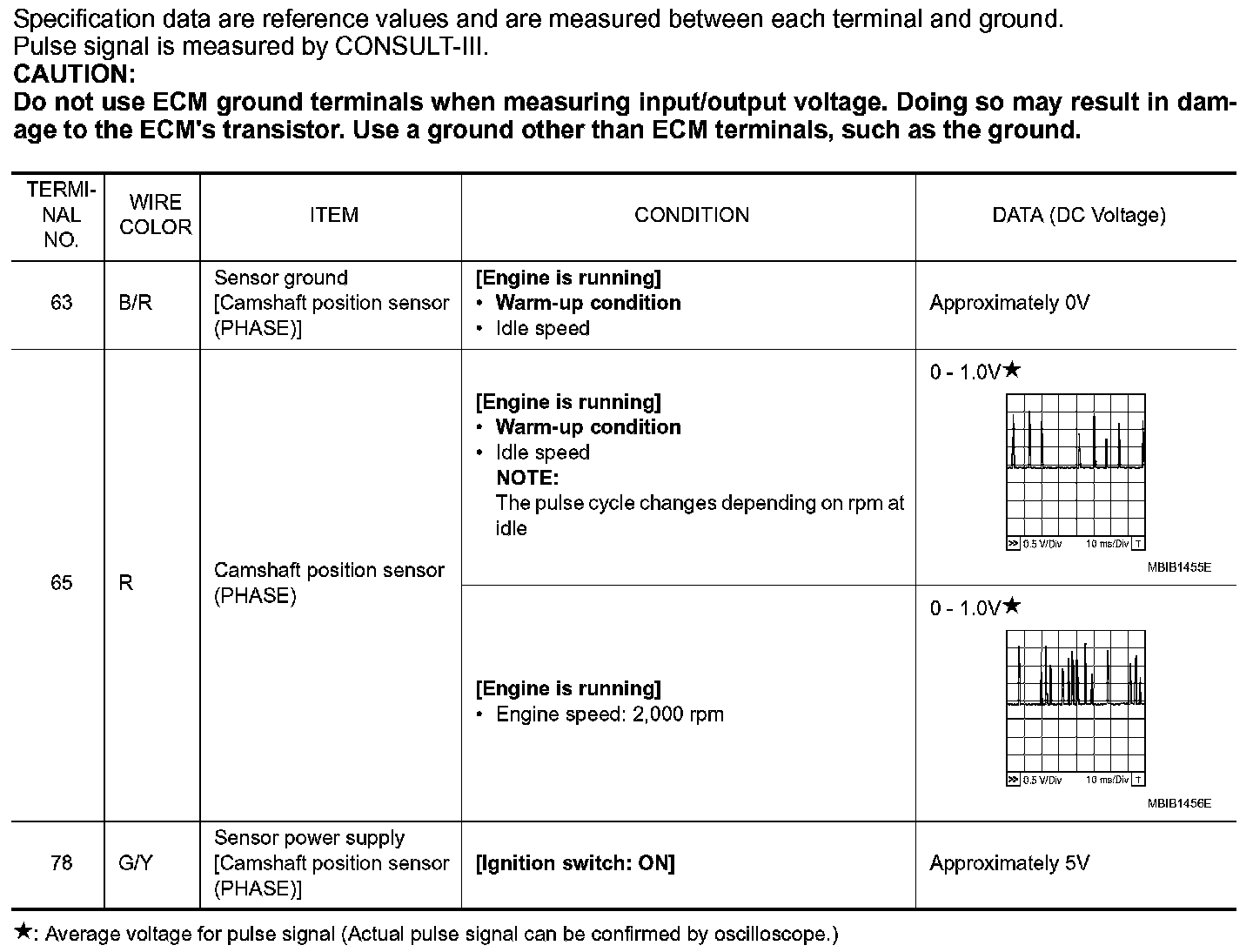

ECM receives the signals as shown in the figure.

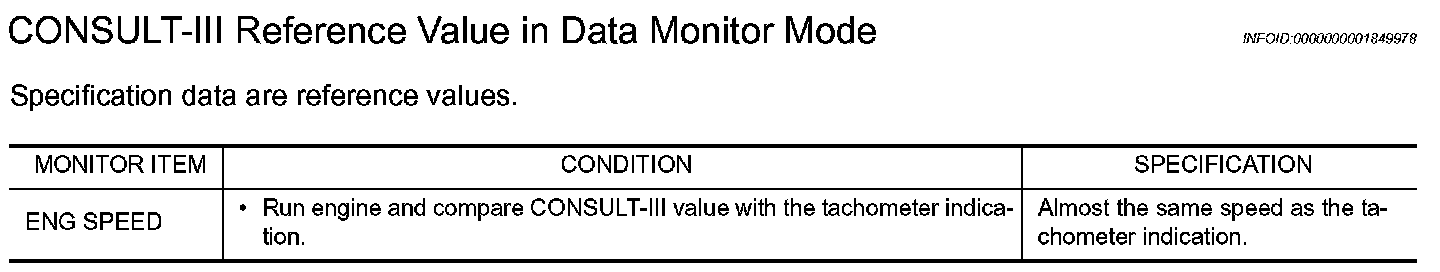

CONSULT-III Reference Value in Data Monitor Mode

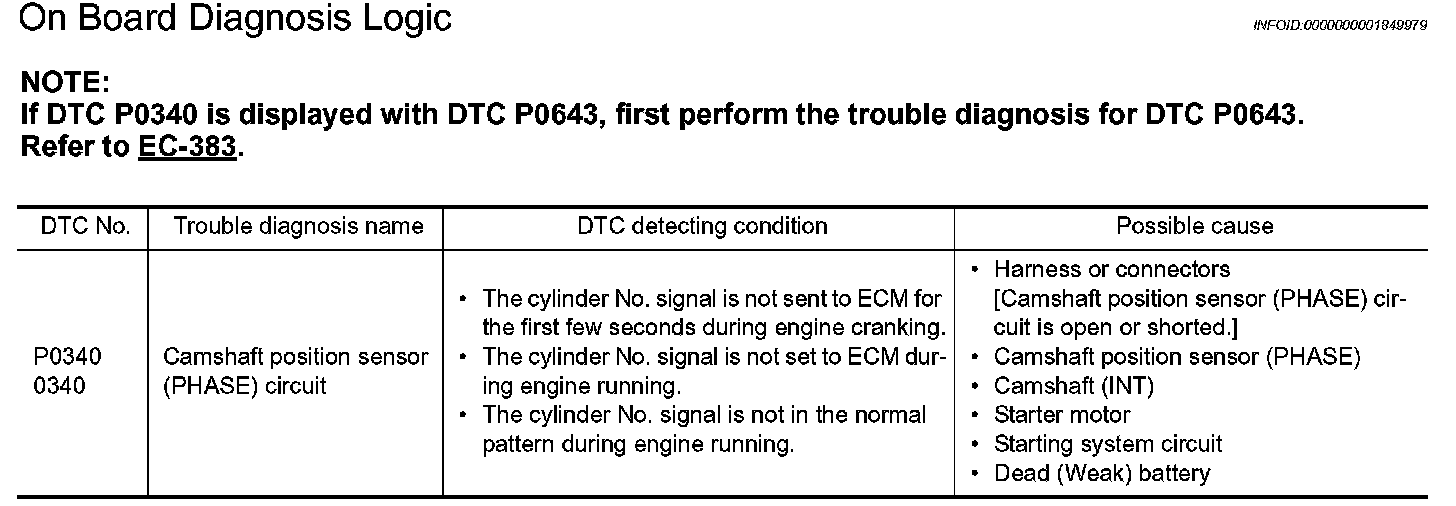

On Board Diagnosis Logic






DTC Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5 V with ignition switch ON.

1. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.
If 1st trip DTC is not detected, go to next step.

4. Maintain engine speed at more than 800 rpm for at least 5 seconds.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

Wiring Diagram

EC-PHASE-01:

Diagnostic Procedure

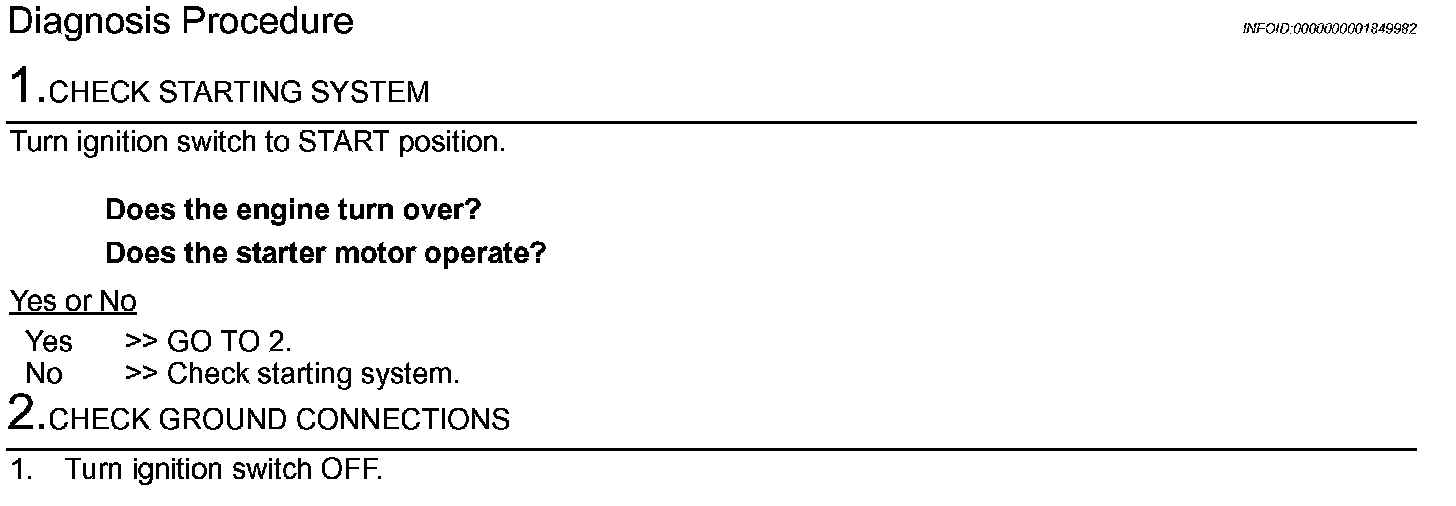

Step 1-2:

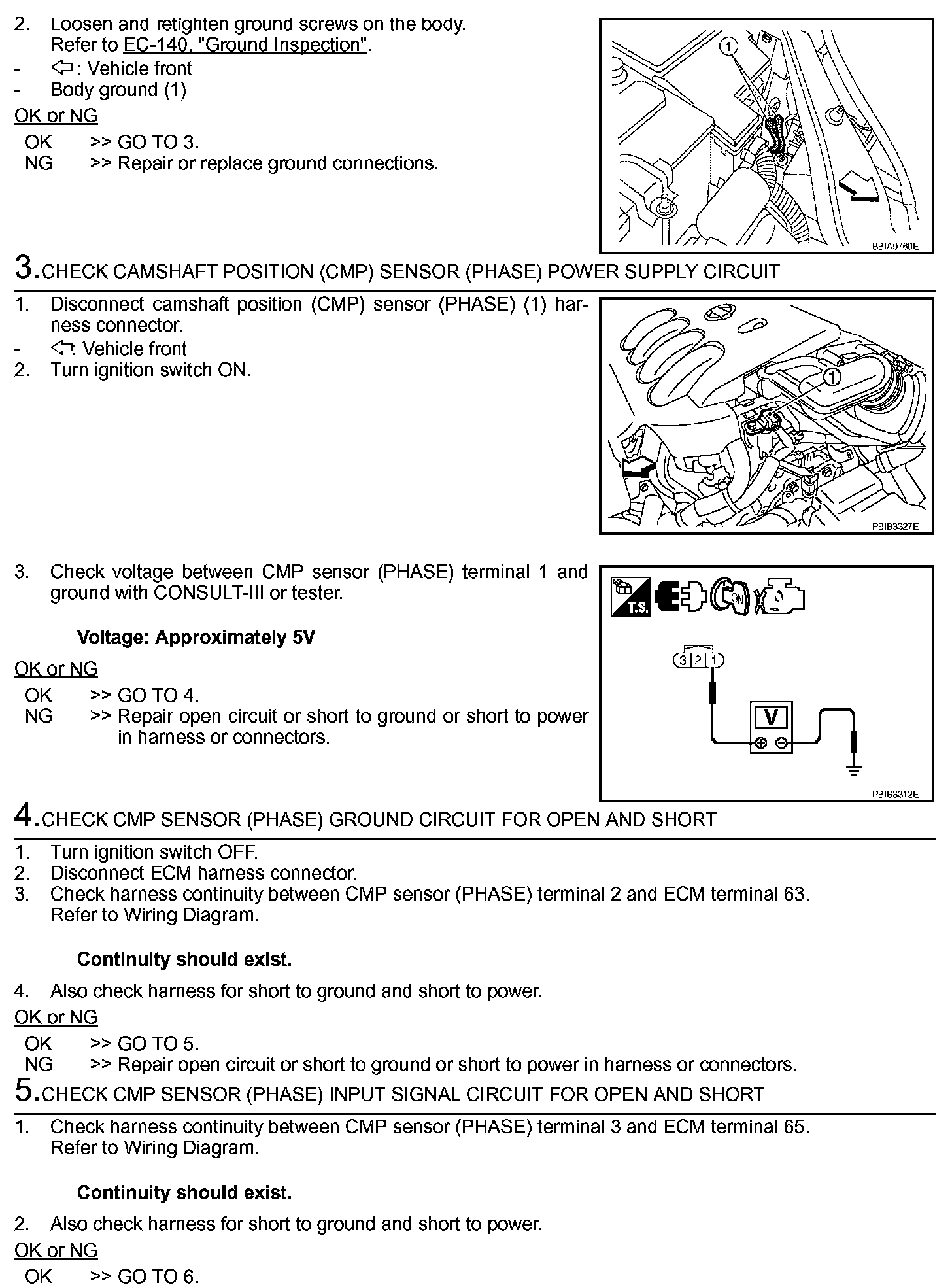

Step 2 (Continued)-5:

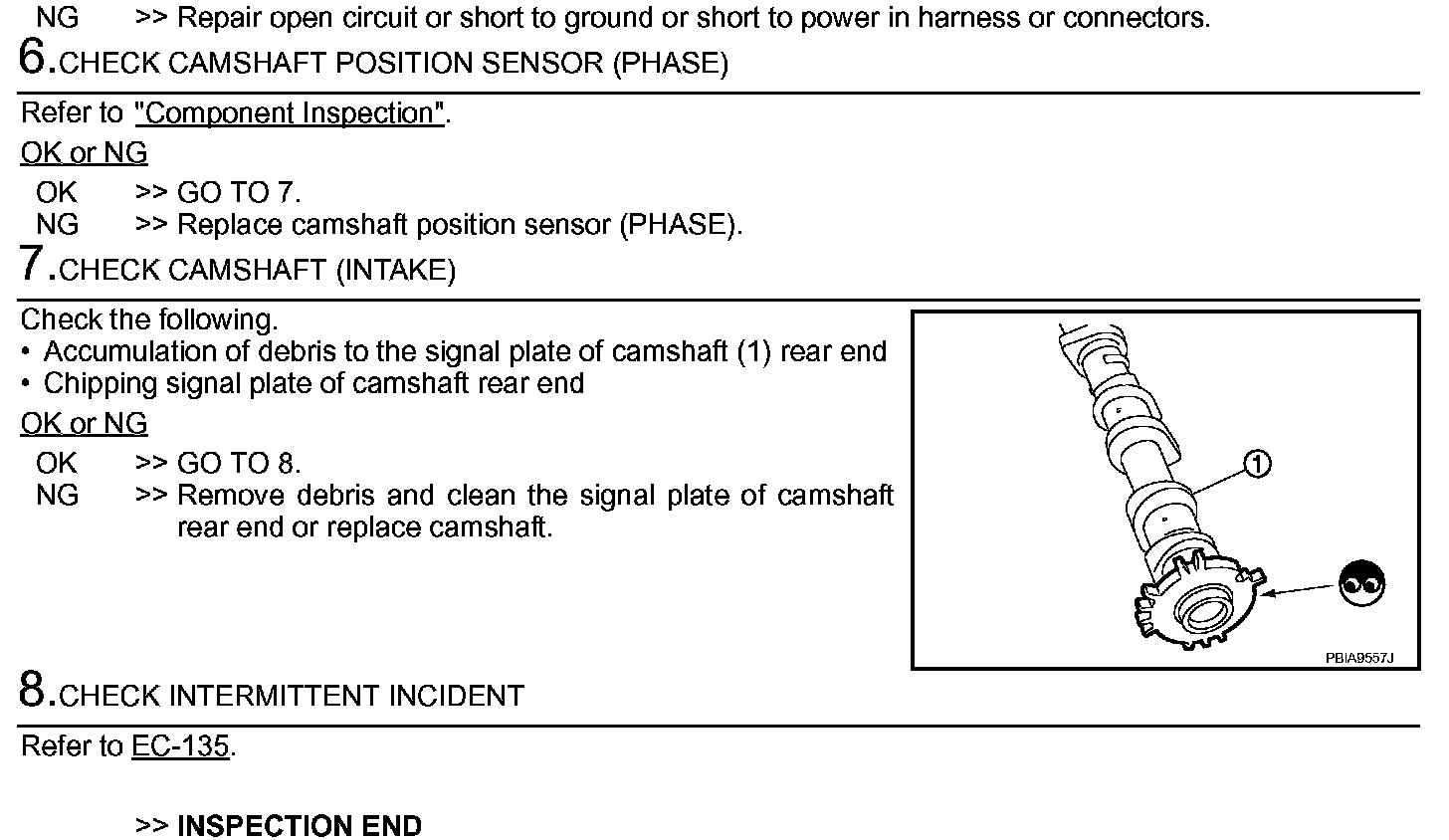

Step 5 (Continued)-8:

Component Inspection

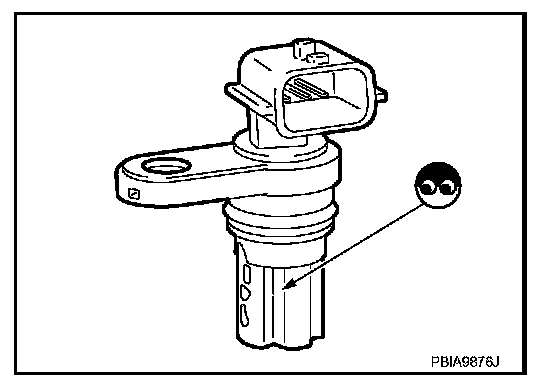

CAMSHAFT POSITION SENSOR (PHASE)
1. Loosen the fixing bolt of the sensor.
2. Disconnect camshaft position sensor (PHASE) harness connector.
3. Remove the sensor.




4. Visually check the sensor for chipping.

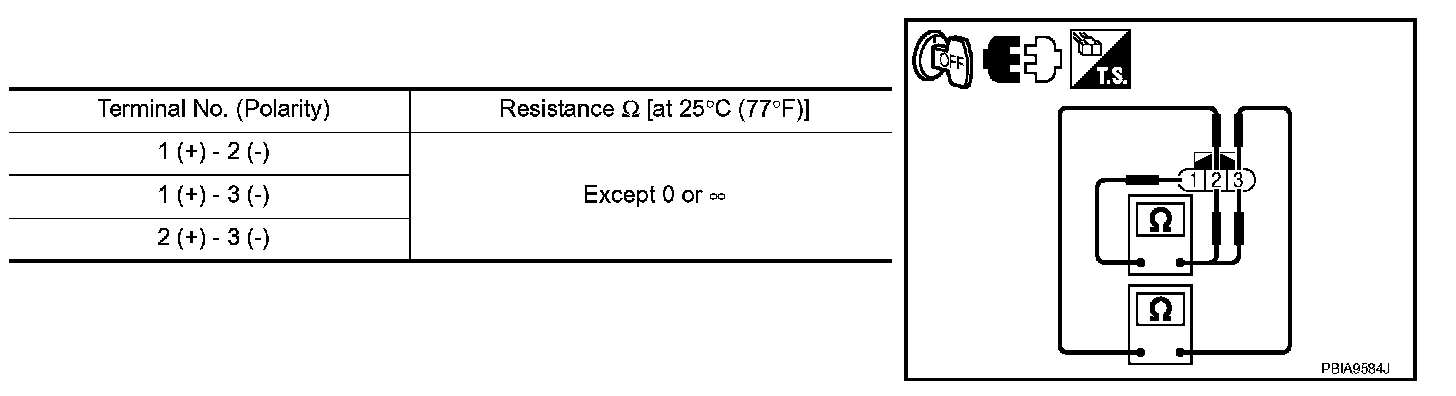

5. Check resistance as shown in the figure.
6. If NG, replace camshaft position sensor (PHASE).
