P0031

DTC P0031, P0032 A/F SENSOR 1 HEATER

Description

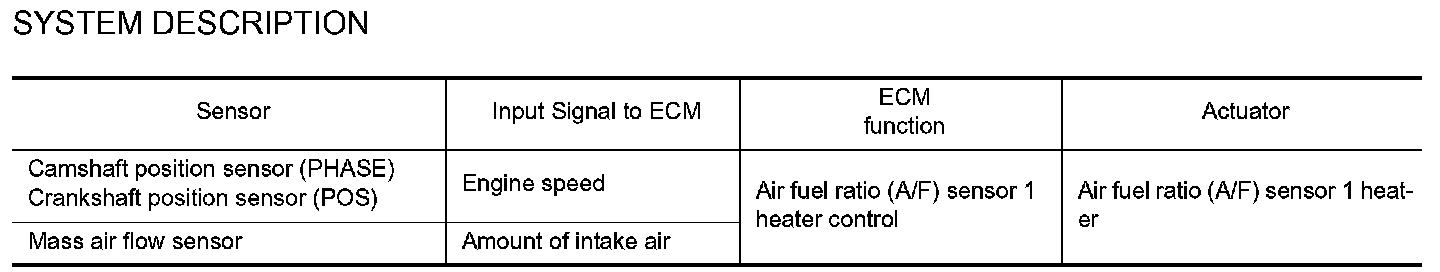

SYSTEM DESCRIPTION






The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating condition to keep the temperature of A/F sensor 1 element at the specified range.

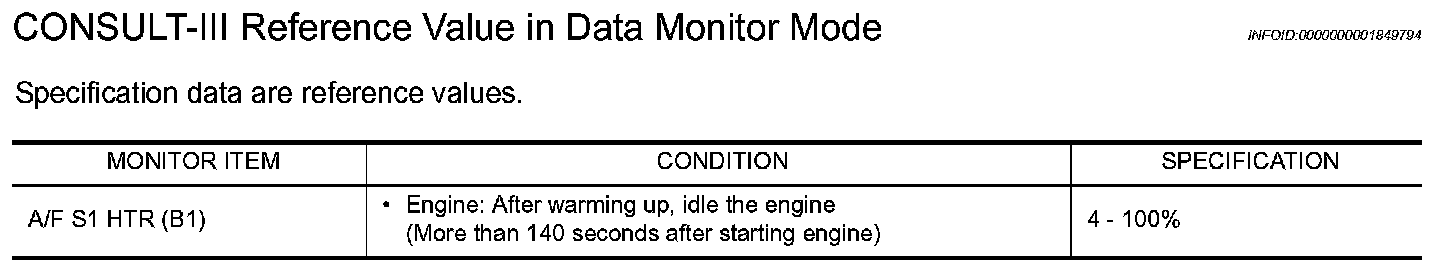

CONSULT-III Reference Value in Data Monitor Mode

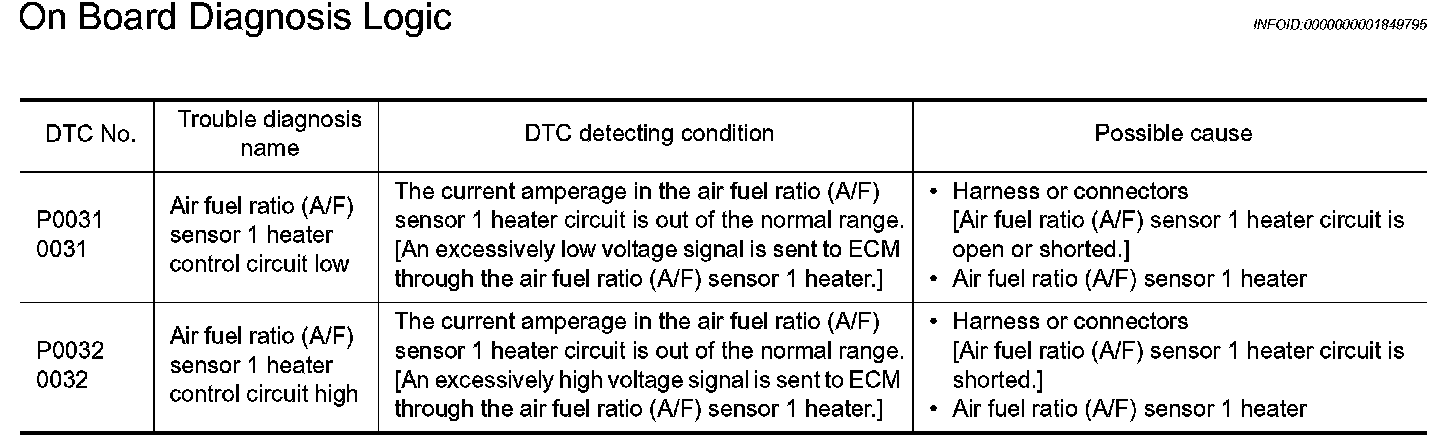

On Board Diagnosis Logic






DTC Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is 11 V at idle.

1. Start engine and run it for at least 10 seconds at idle speed.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

Wiring Diagram

EC-A/FH-01:

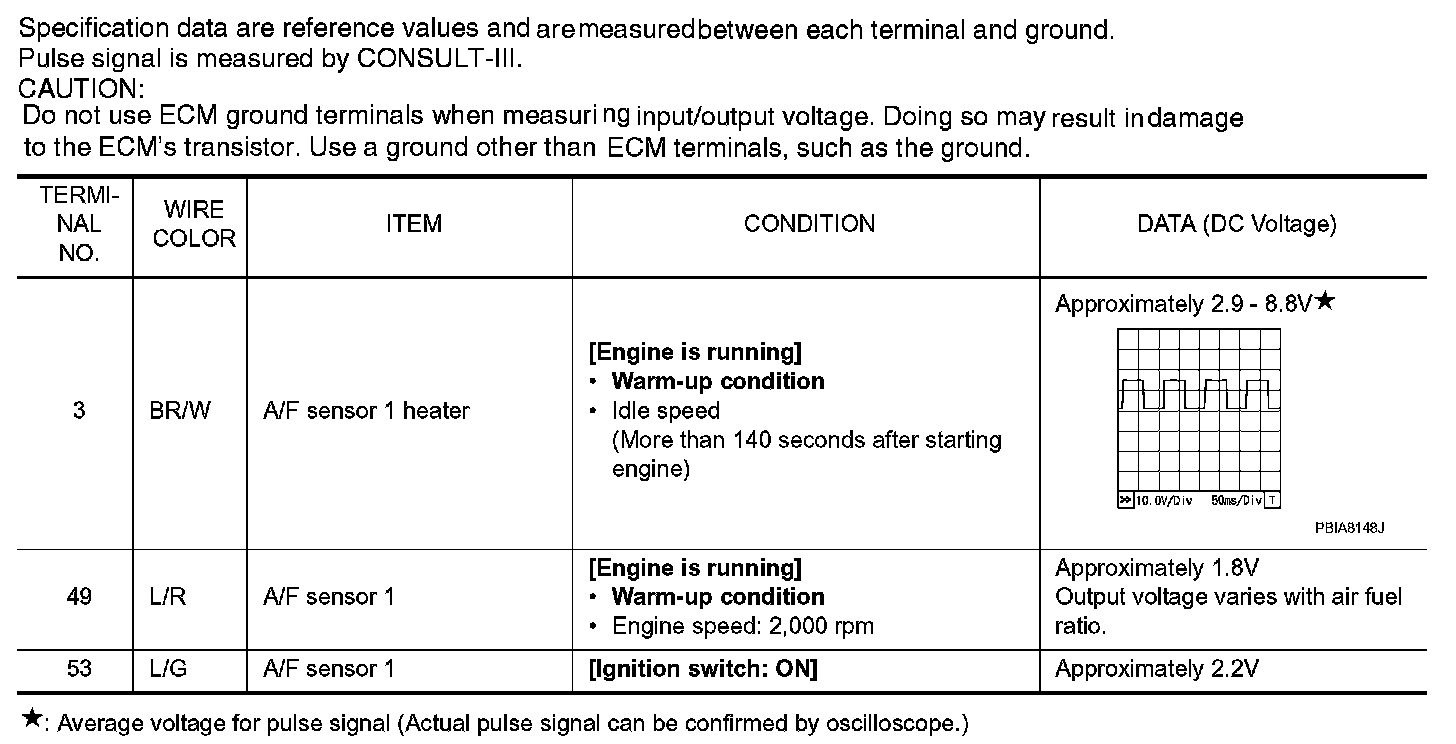

Diagnostic Procedure

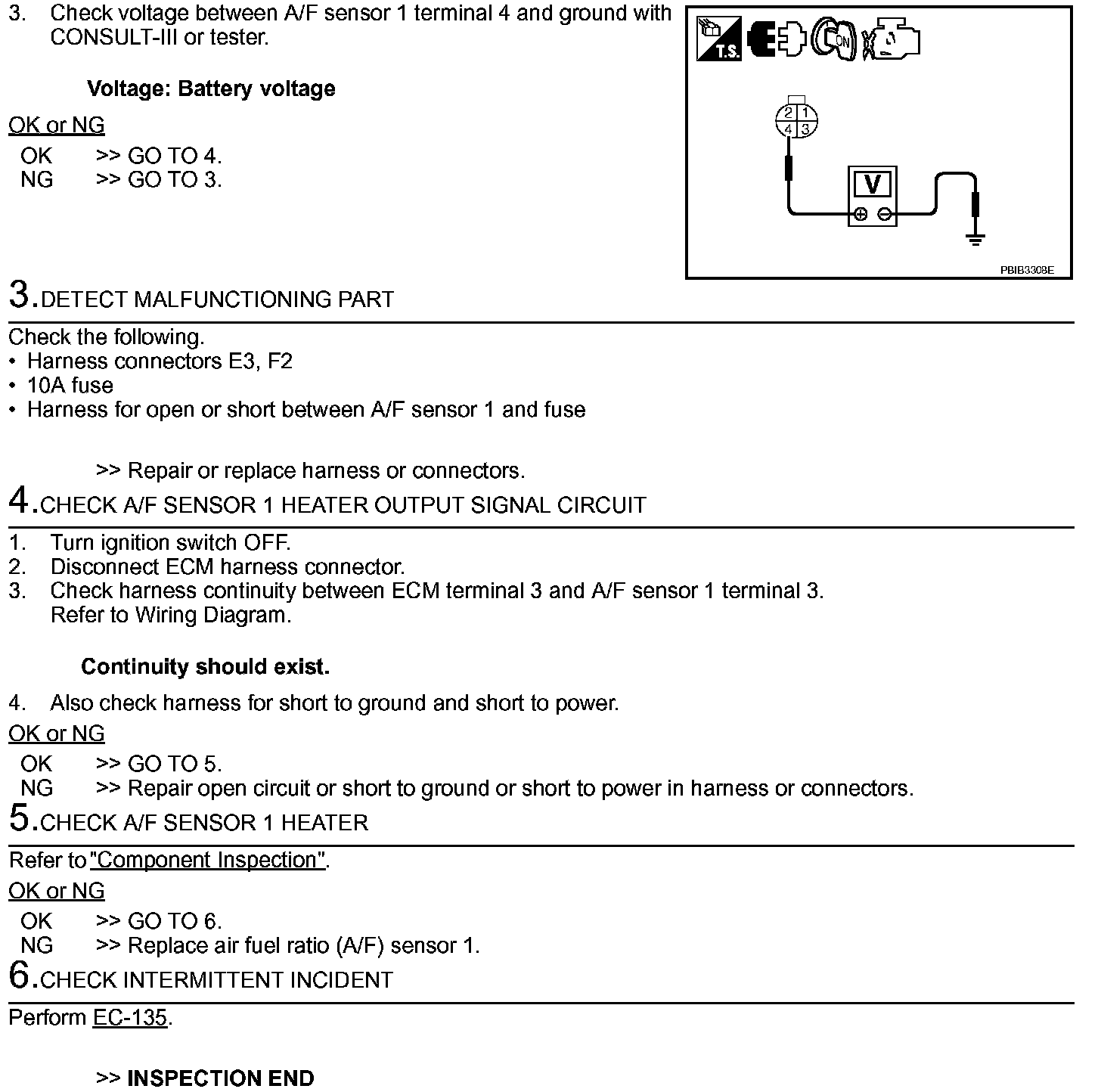

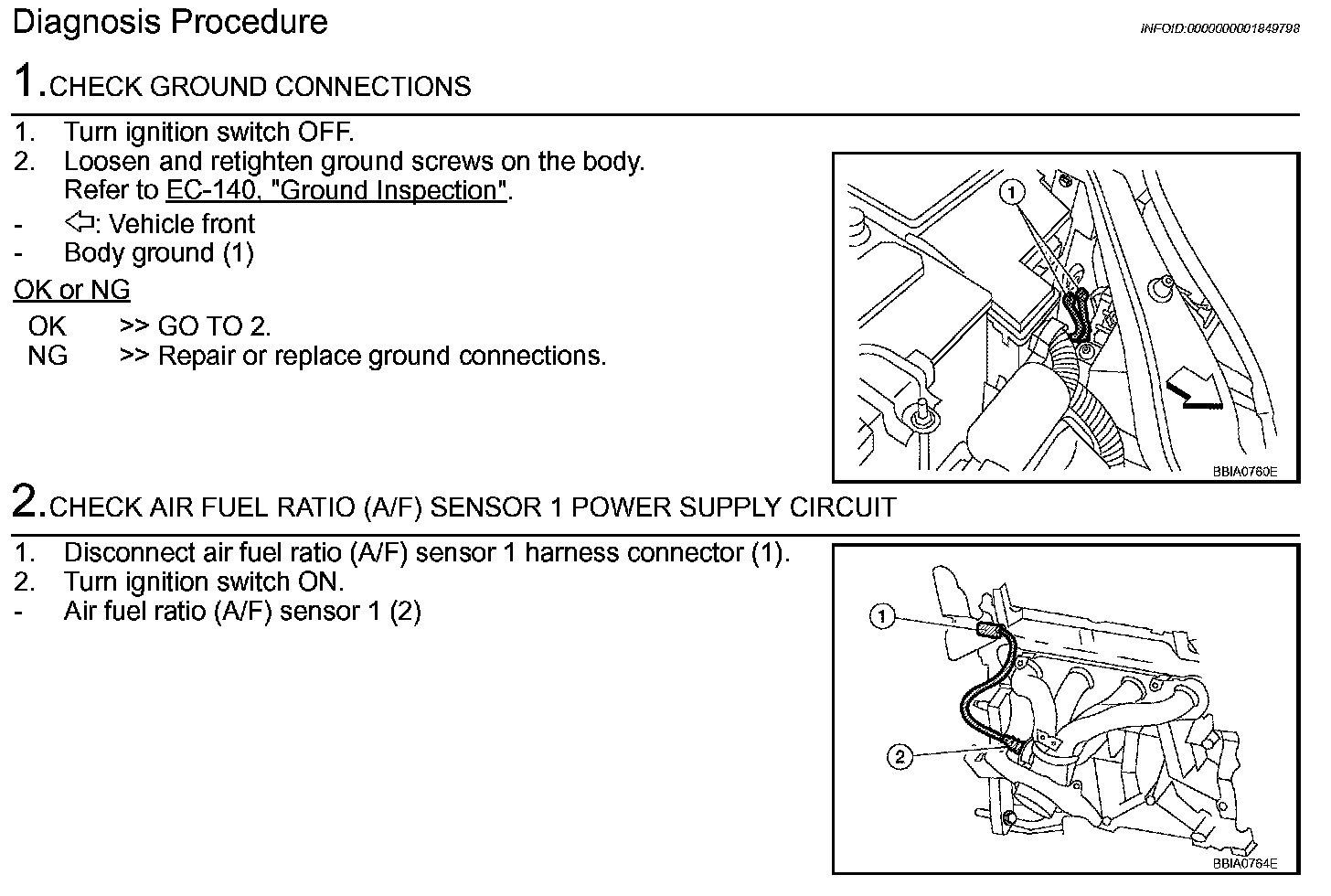

Step 1-2:

Step 2 (Continued)-6:

Component Inspection

AIR FUEL RATIO (A/F) SENSOR 1 HEATER

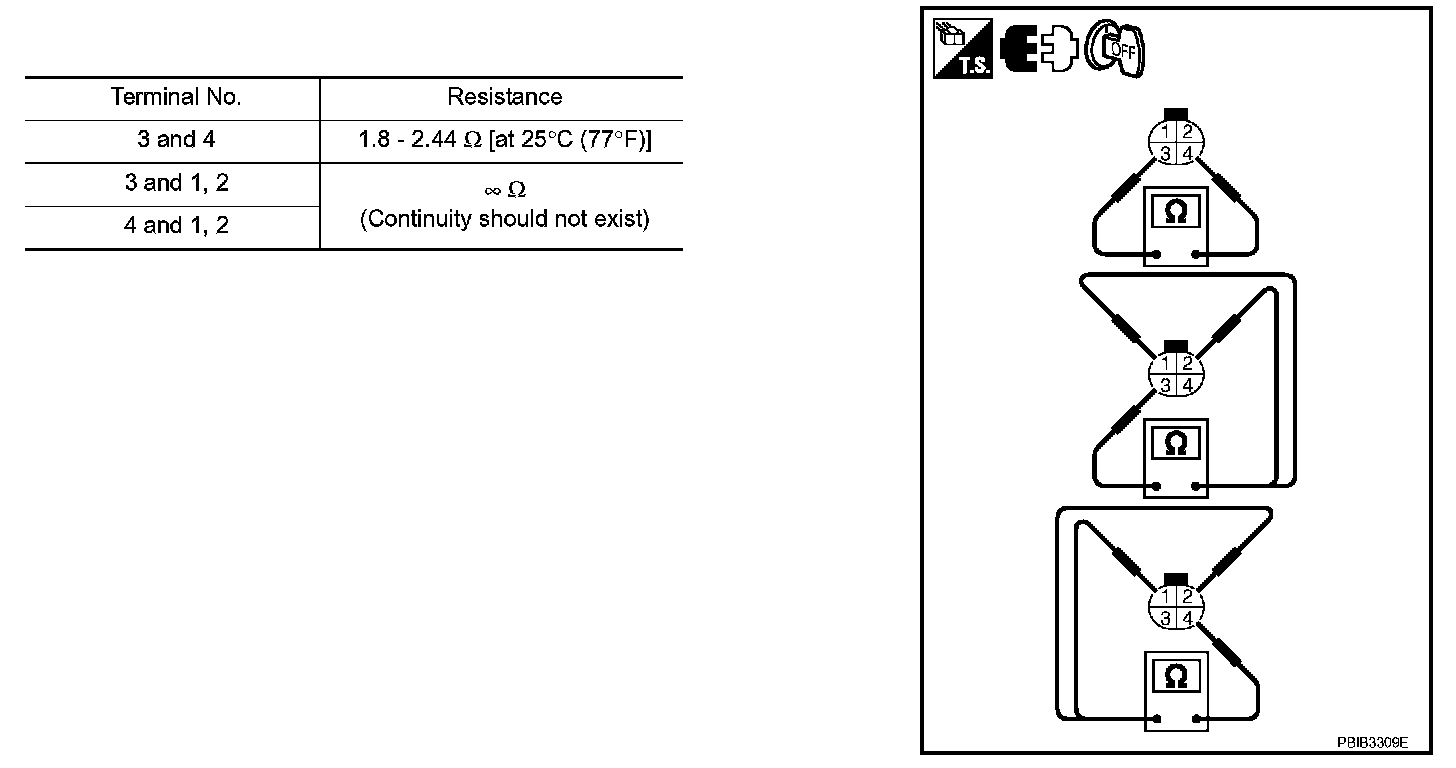

1. Check resistance between A/F sensor 1 terminals as follows.
2. If NG, replace air fuel ratio (A/F) sensor 1.

CAUTION:
- Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
- Before installing new A/F sensor, clean exhaust system threads using Heated Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
