Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Front Wiper Does Not Operate

Front Wiper Does Not Operate

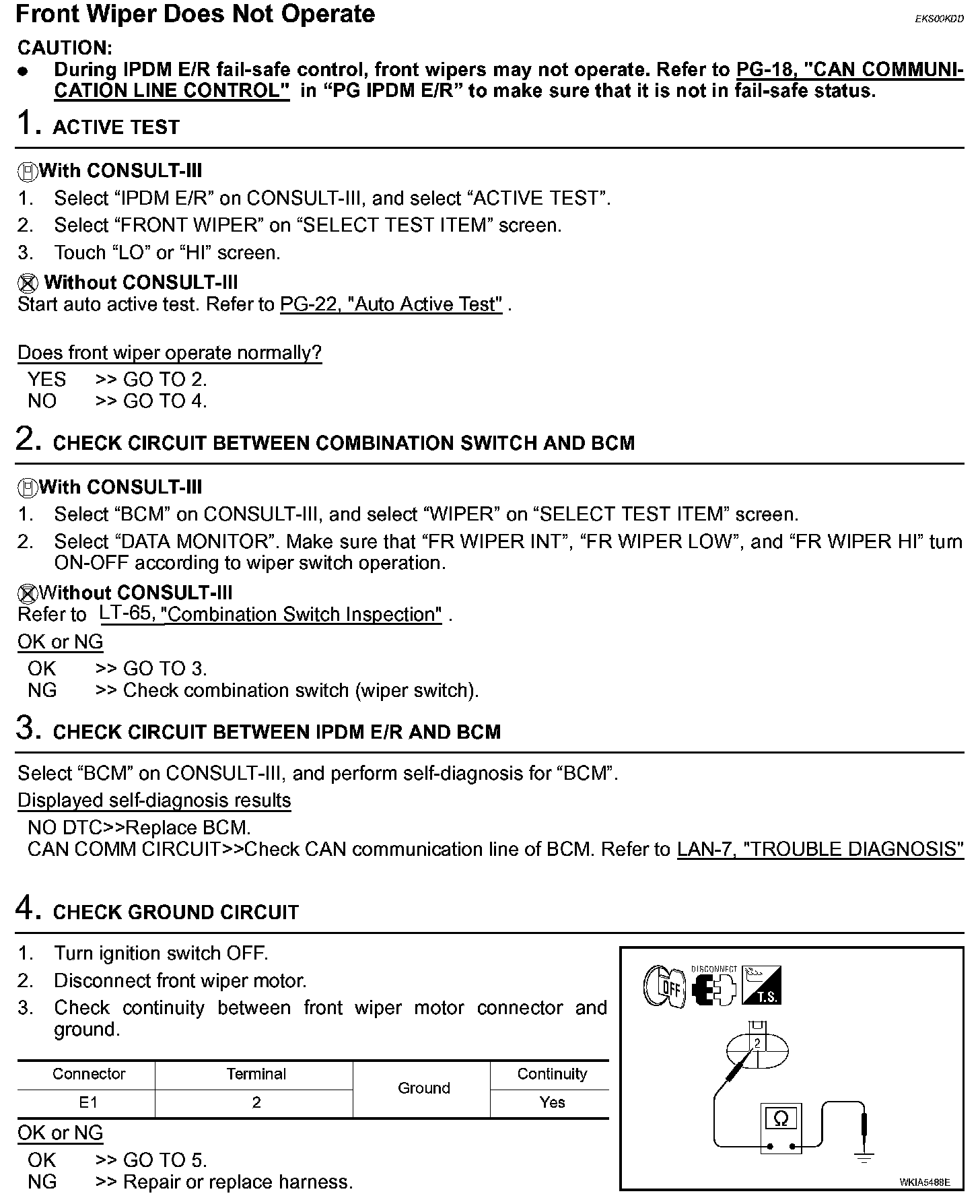

Front Wiper Does Not Operate (Steps 1 - 4):

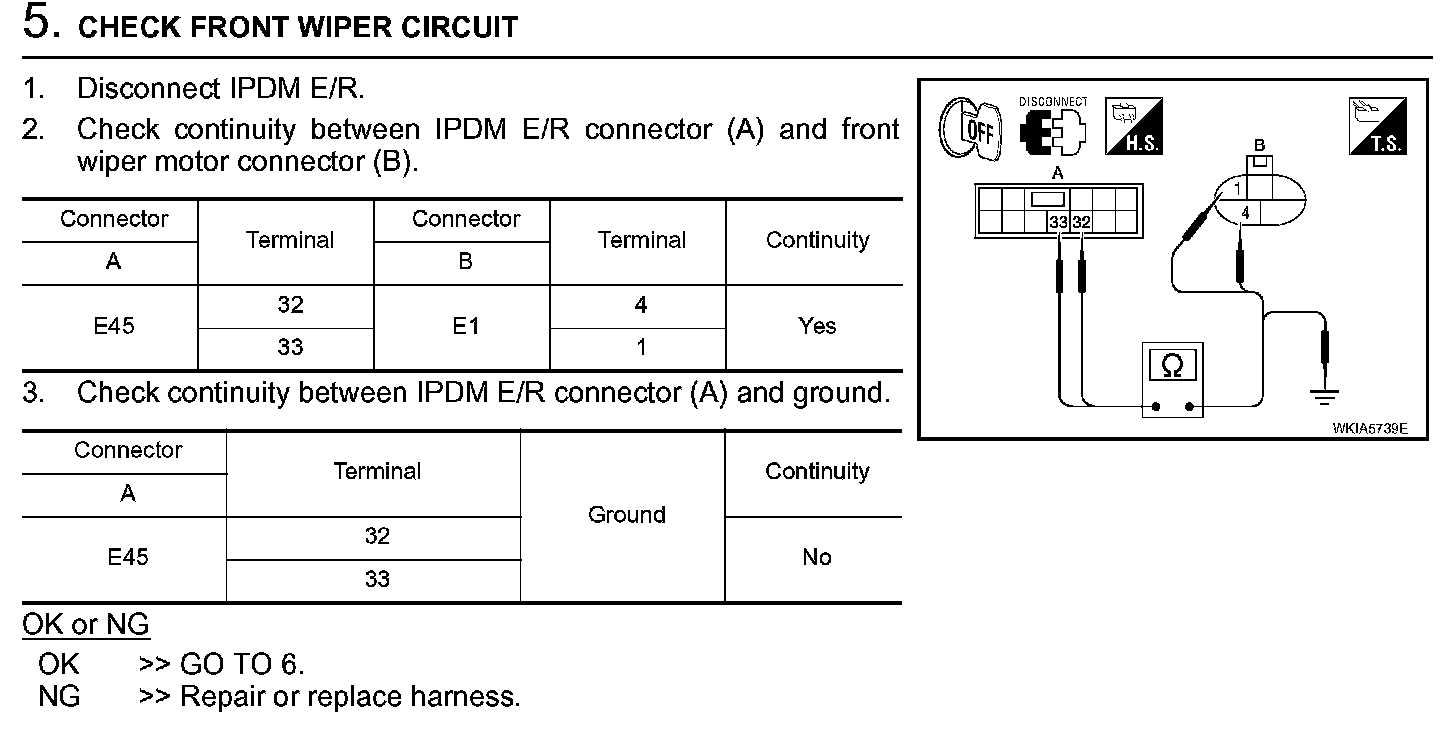

Front Wiper Does Not Operate (Step 5):

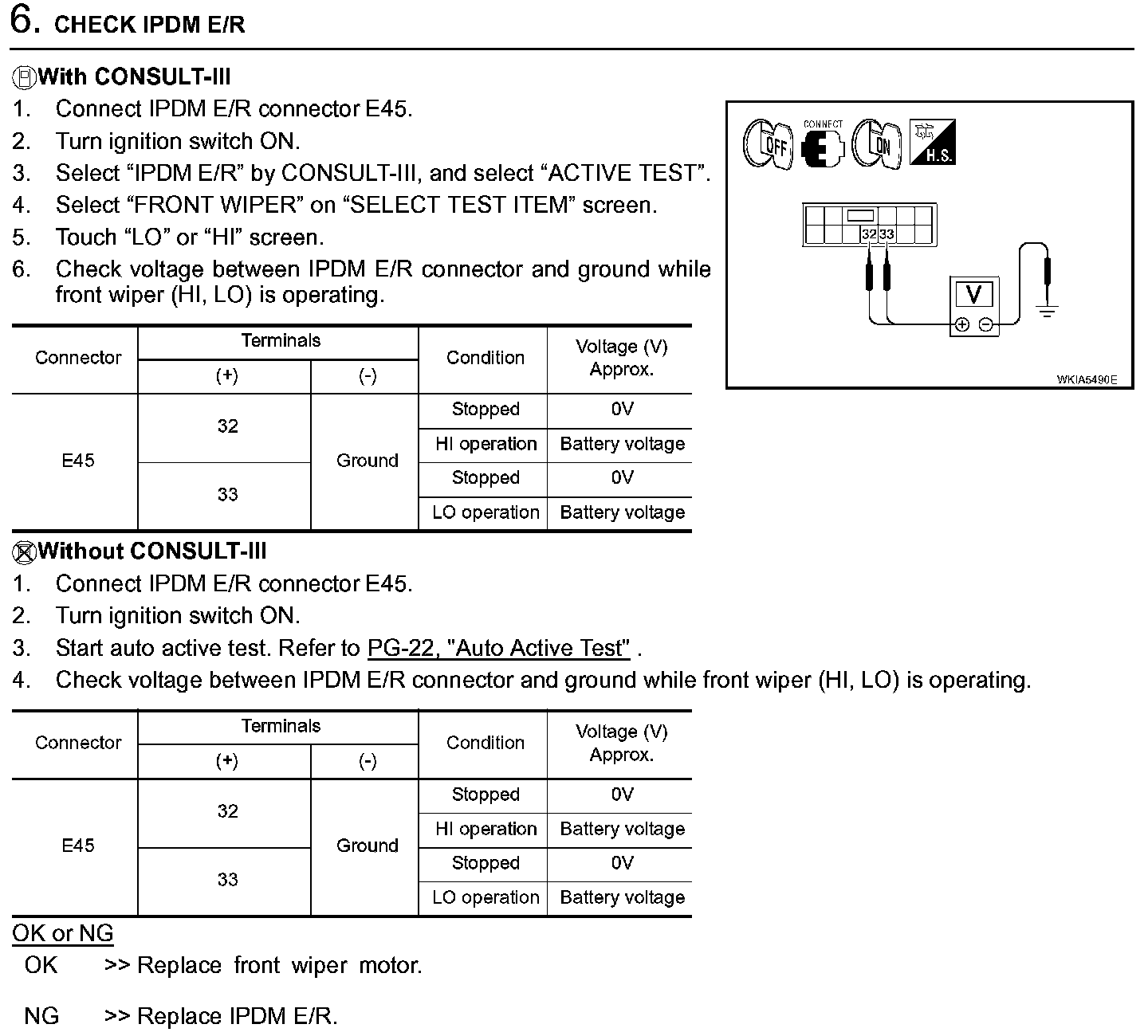

Front Wiper Does Not Operate (Step 6):
