Rear Door Window Regulator: Service and Repair

REAR DOOR GLASS AND REGULATOR

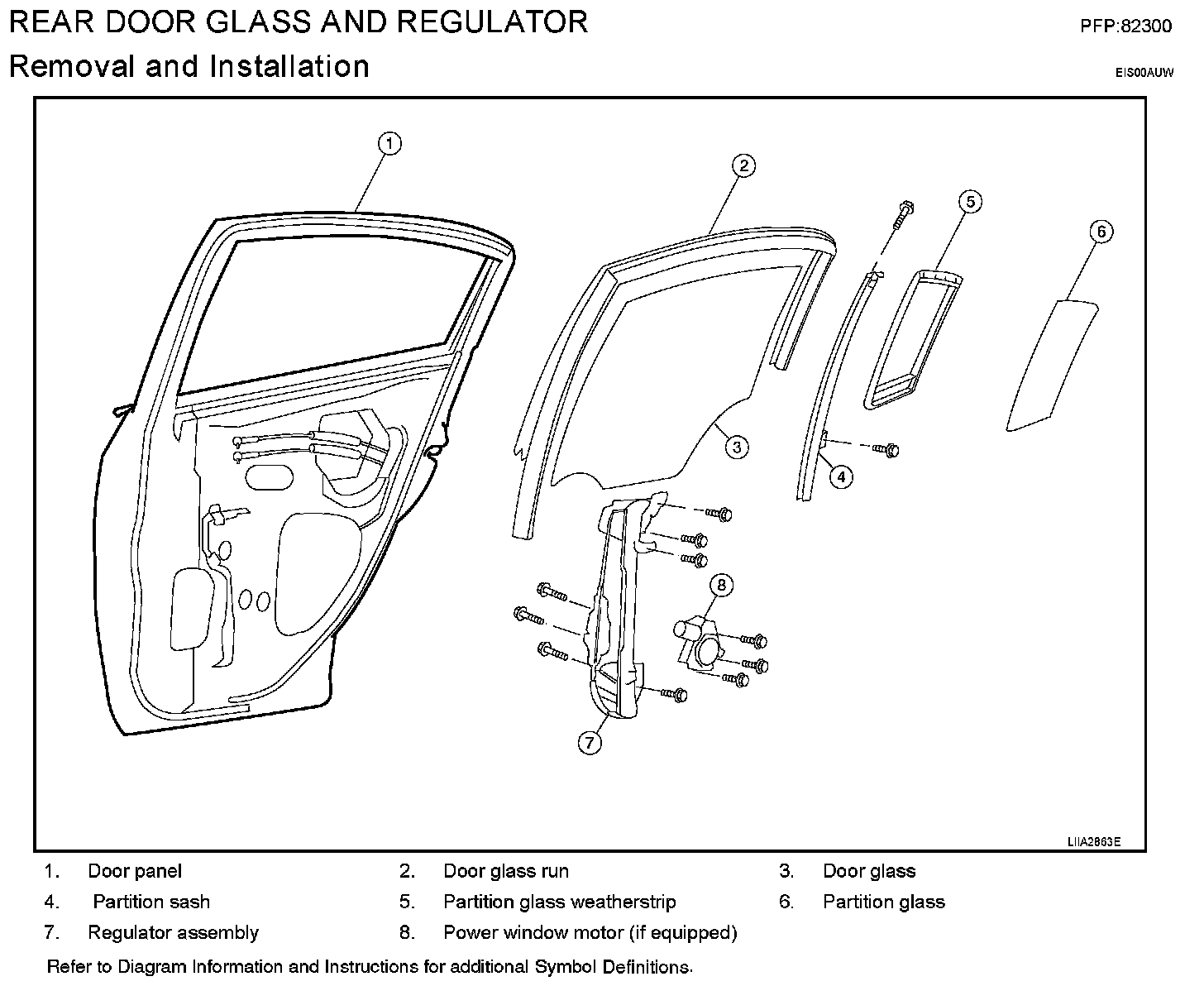

Exploded View GW-52:

Removal and Installation

REGULATOR ASSEMBLY

Removal
1. Remove and position aside the rear door finisher.
2. Disconnect the harness connector of rear speaker.
3. Position aside the sealing screen.




4. If equipped, operate the power window switch to raise/lower the door window until the glass bolts can be seen.

NOTE: Connect the harness connector to the power window switch.

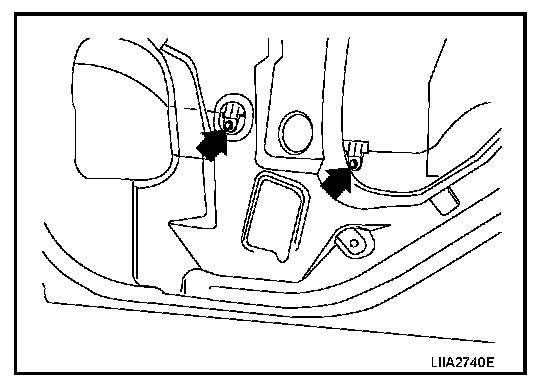

5. Remove the rear door glass bolts.

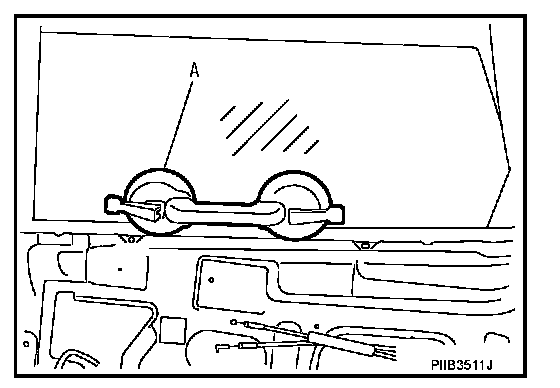

6. Raise up the door glass and hold with a suction lifter (A).

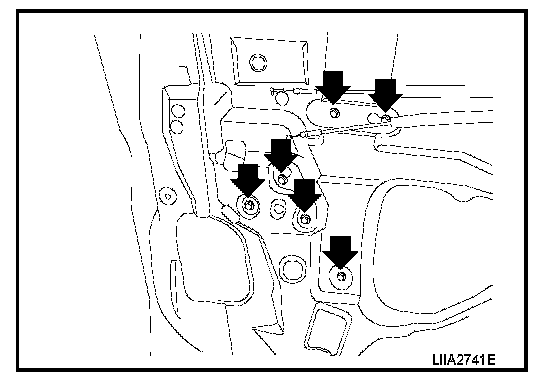

7. Remove the regulator bolts, and then remove the regulator assembly from the door panel.

Installation
Installation is in the reverse order of removal.

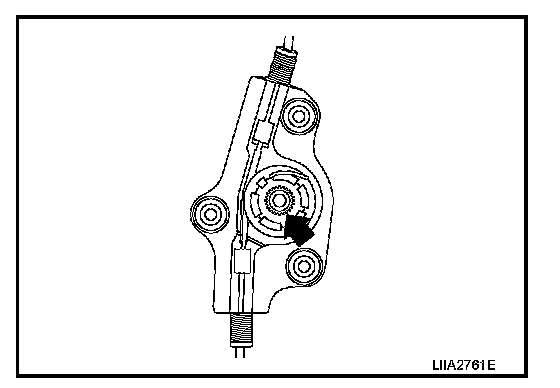

Inspection after Removal

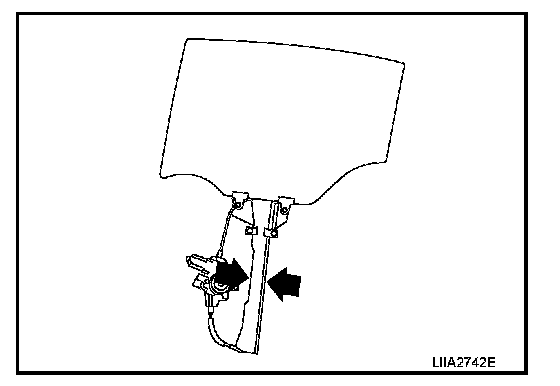

Check the regulator assembly for the following. If a problem is detected, grease or replace it as shown.




- Gear wear




- Regulator deformation
- Grease application points for each sliding part
