Front Door Window Glass: Service and Repair

FRONT DOOR GLASS AND REGULATOR

Exploded View GW-48:

Removal and Installation

DOOR GLASS

Removal
1. Remove the front door finisher. Refer to "FRONT DOOR".
2. Disconnect the front door speaker electrical connector.
3. Position aside the sealing screen.




4. If equipped, reconnect the power window switch electrical connector. Operate the power window main switch to raise/lower the door window until the glass bolts can be seen.

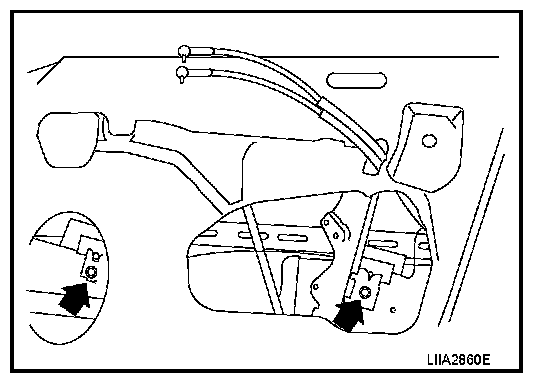

5. Remove the door glass bolts.

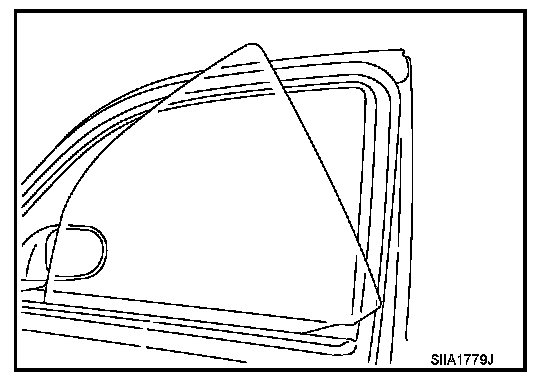

6. While holding the door window, raise it at the rear end to pull the glass out of the sash toward the outside of the door.
7. Remove the door glass run from the door panel.

Installation
Installation is in the reverse order of removal.
