Terminal and Reference Value For Main Power Window and Door Lock/Unlock Switch
Terminal and Reference Value For Main Power Window and Door Lock/Unlock Switch

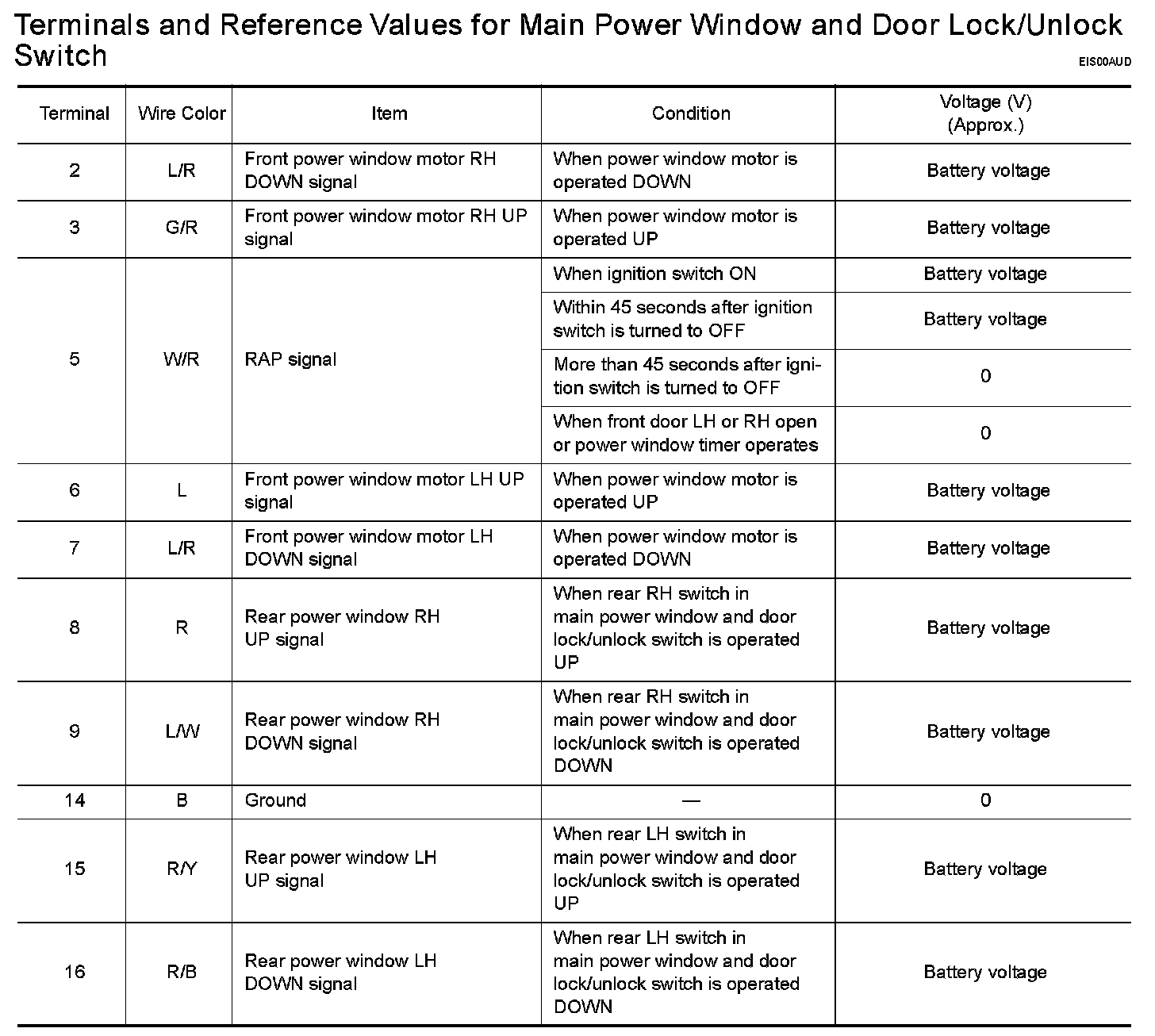

Terminals And Reference Values For Main Power Window And Door Lock/Unlock Switch:
