FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2007
>>
Sentra L4-2.0L (MR20DE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Rear Power Window RH Circuit Check (Rear Power Window Switch RH Operation)
Rear Power Window RH Circuit Check (Rear Power Window Switch RH Operation)

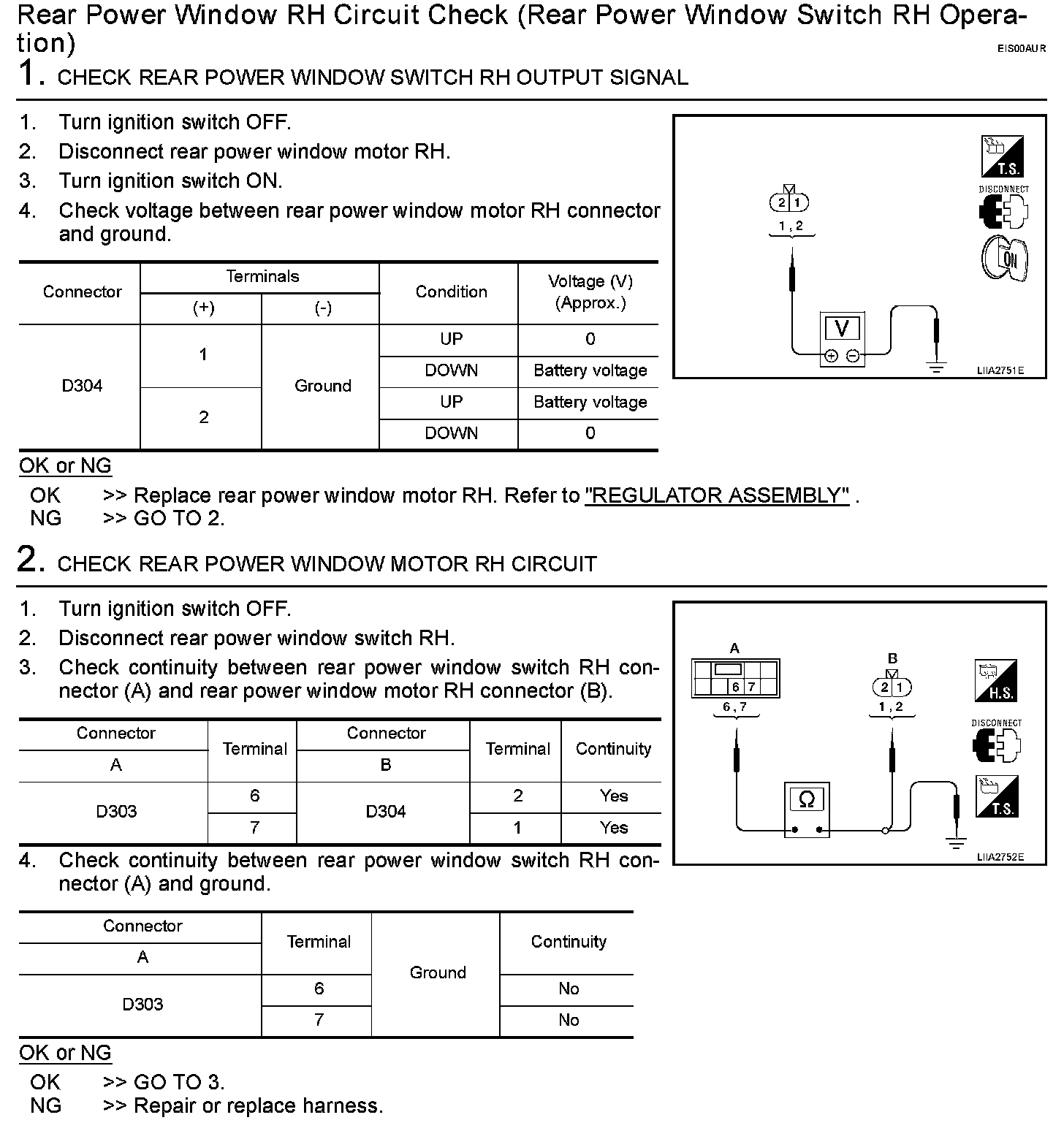

Step 1-2:

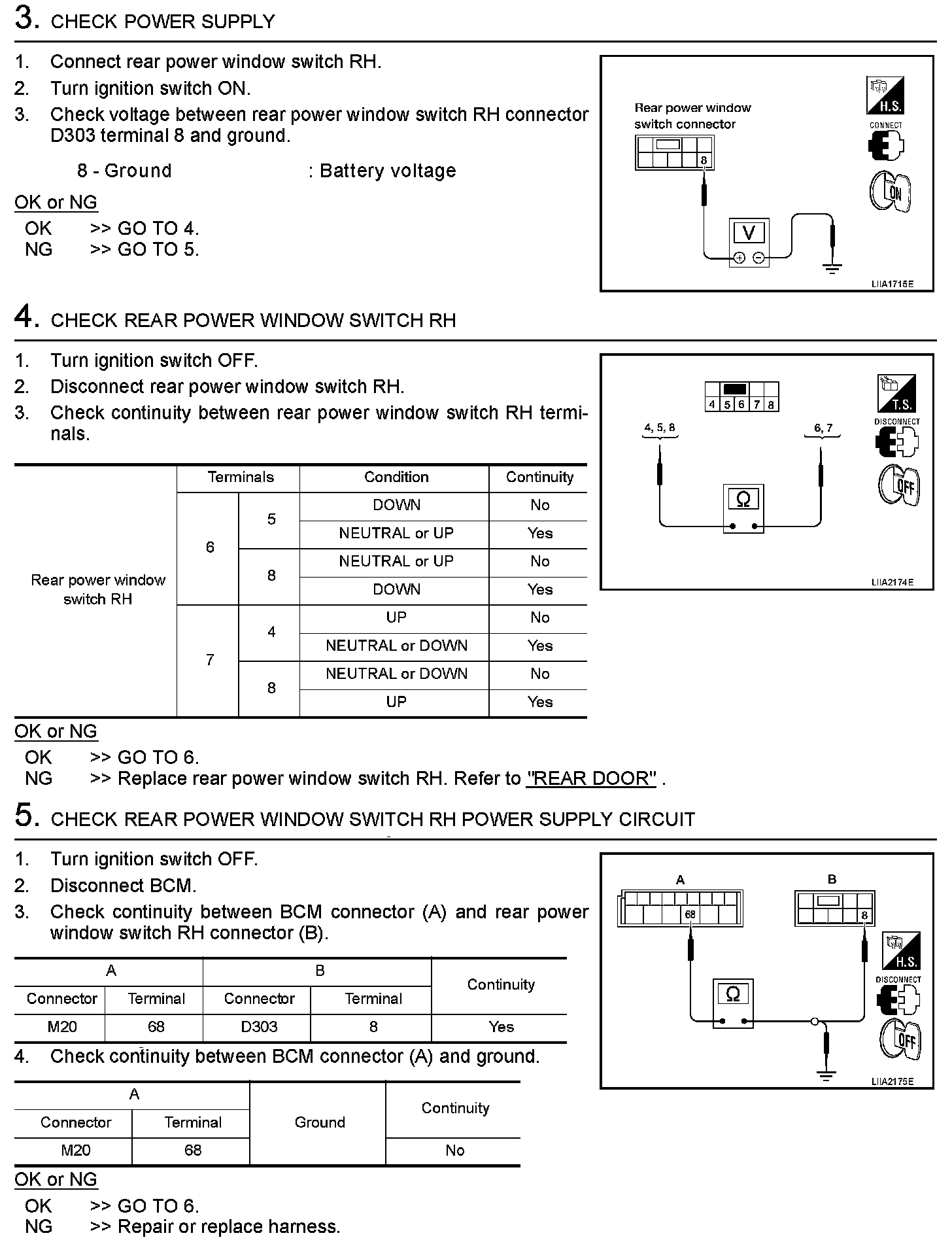

Step 3-5:

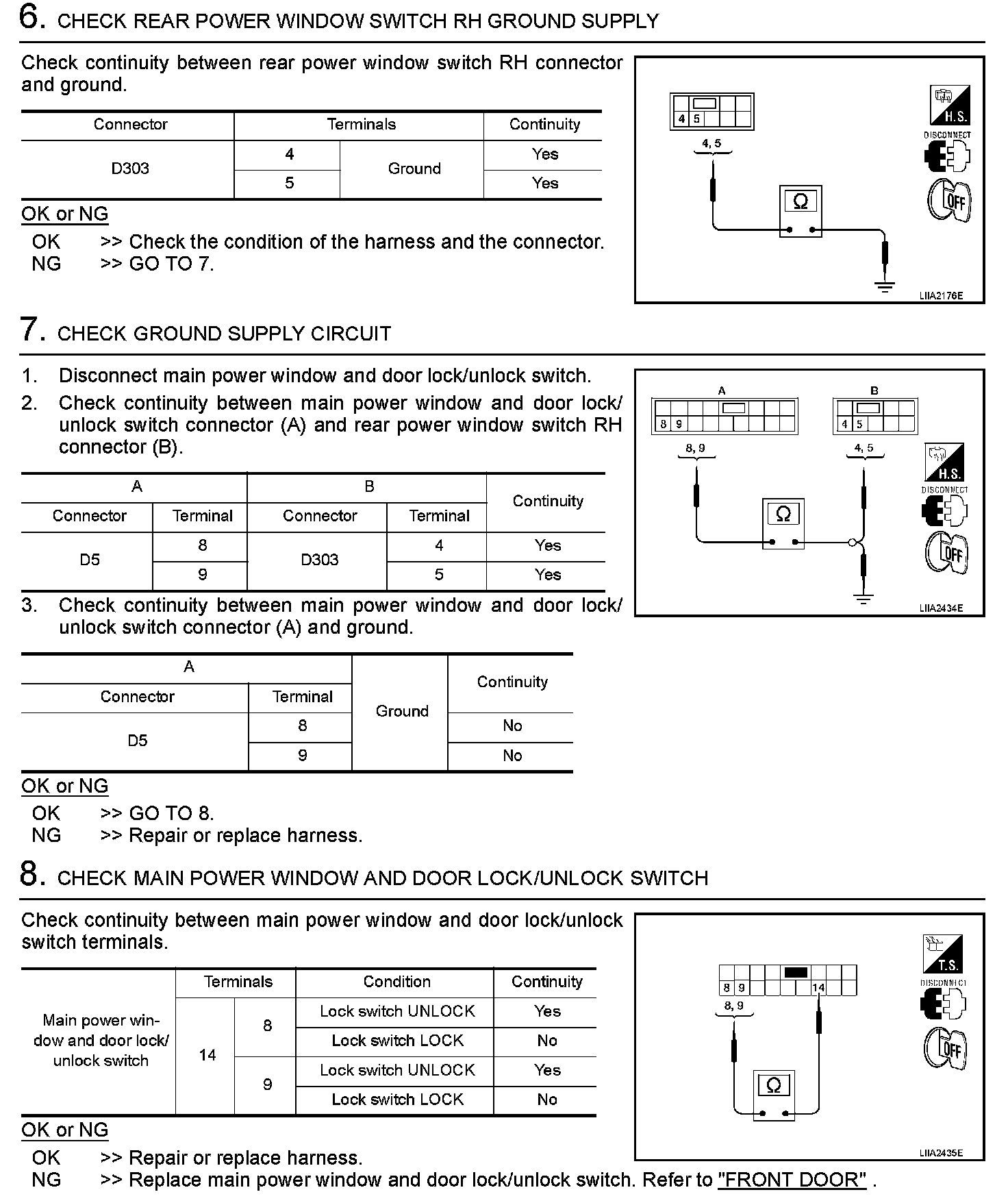

Step 6-8:
