Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Component Tests and General Diagnostics >> Rear Power Window LH Circuit Check (Rear Power Window Switch LH Operation)

Rear Power Window LH Circuit Check (Rear Power Window Switch LH Operation)

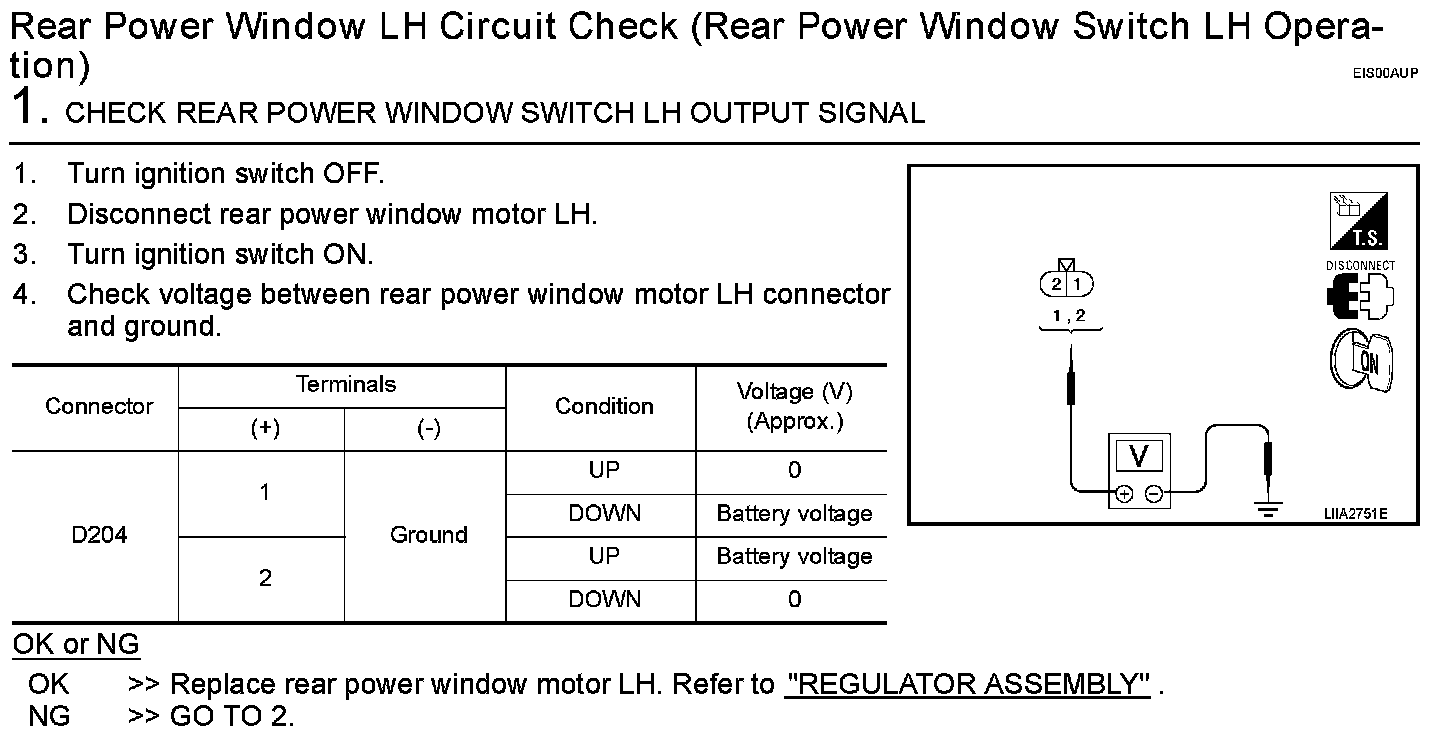

Step 1:

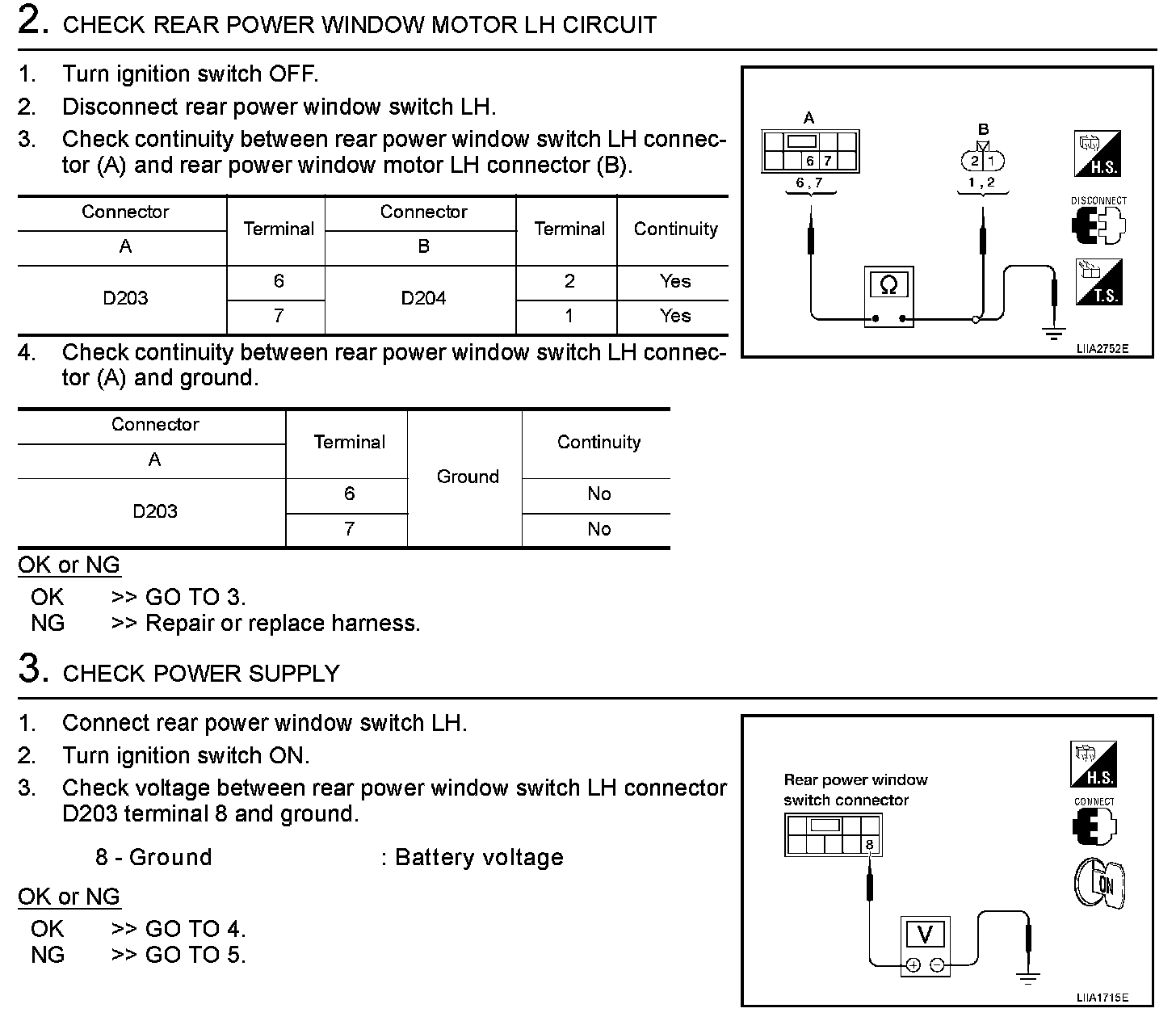

Step 2-3:

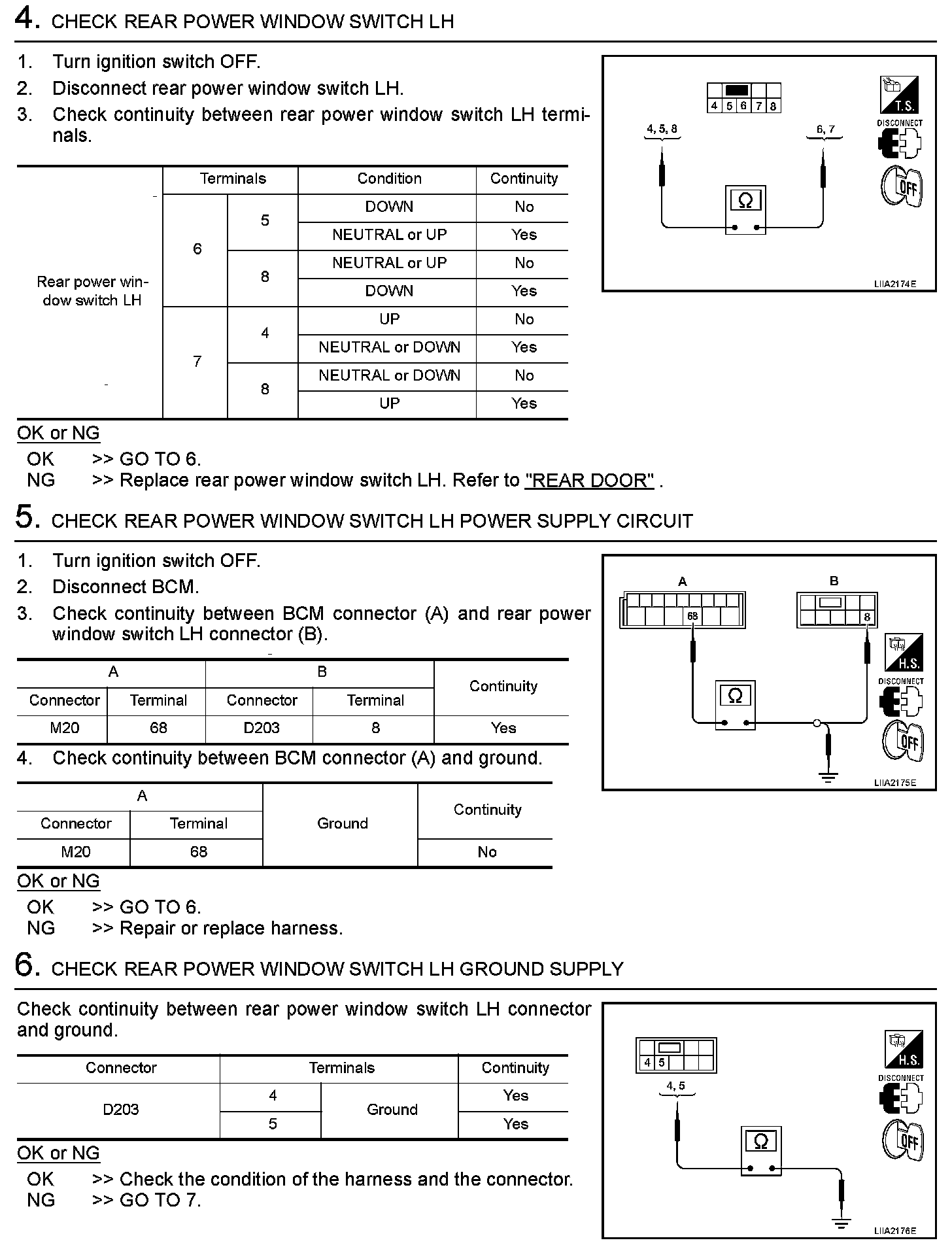

Step 4-6:

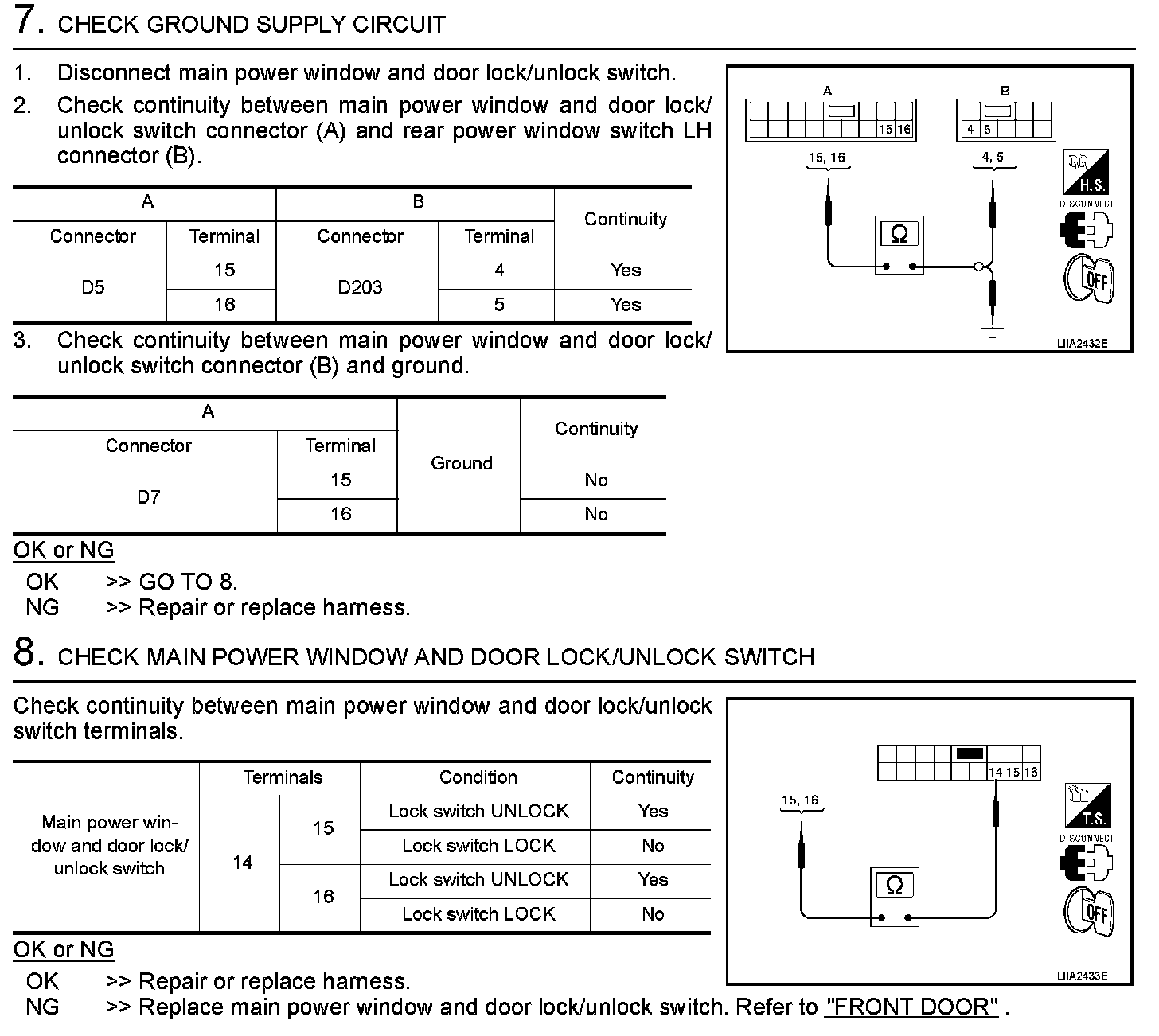

Step 7-8:
