Rear Power Window LH Circuit Check (Main Power Window and Door Lock/ Unlock Switch Operation)
Rear Power Window LH Circuit Check (Main Power Window and Door Lock/ Unlock Switch Operation)

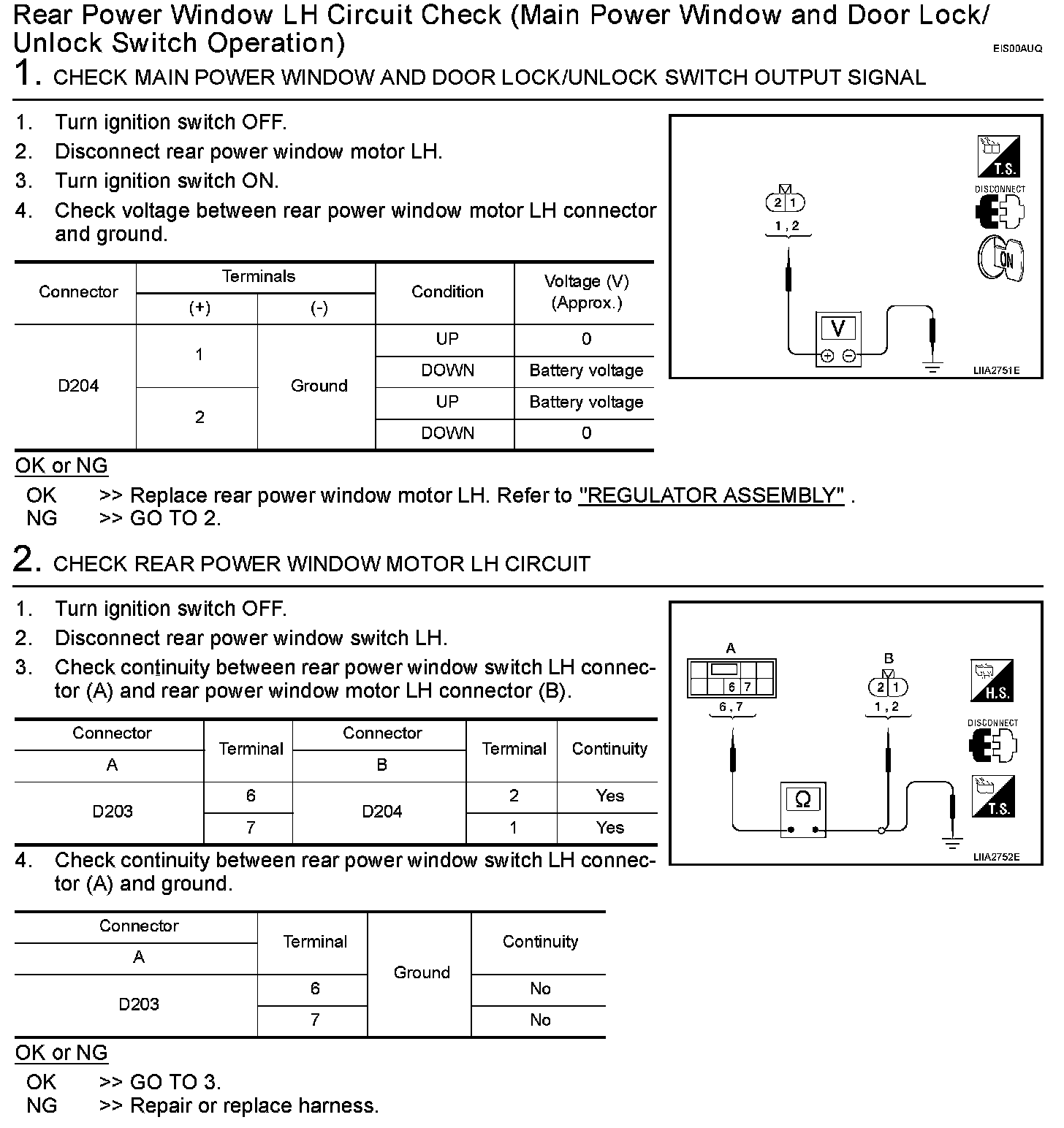

Step 1-2:

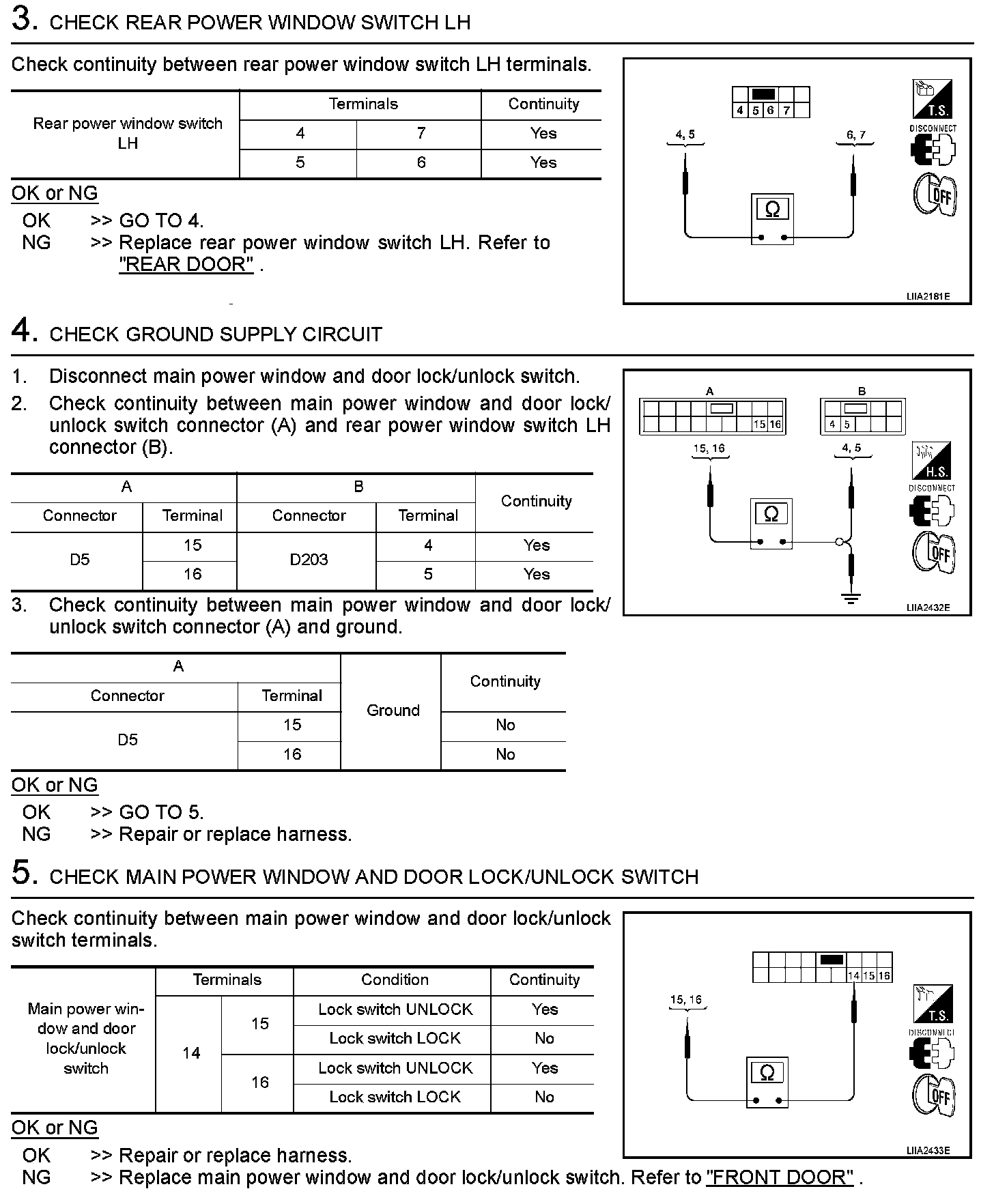

Step 3-5:
