Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Testing and Inspection >> Component Tests and General Diagnostics >> Door Mirror Defogger Circuit Check

Door Mirror Defogger Circuit Check

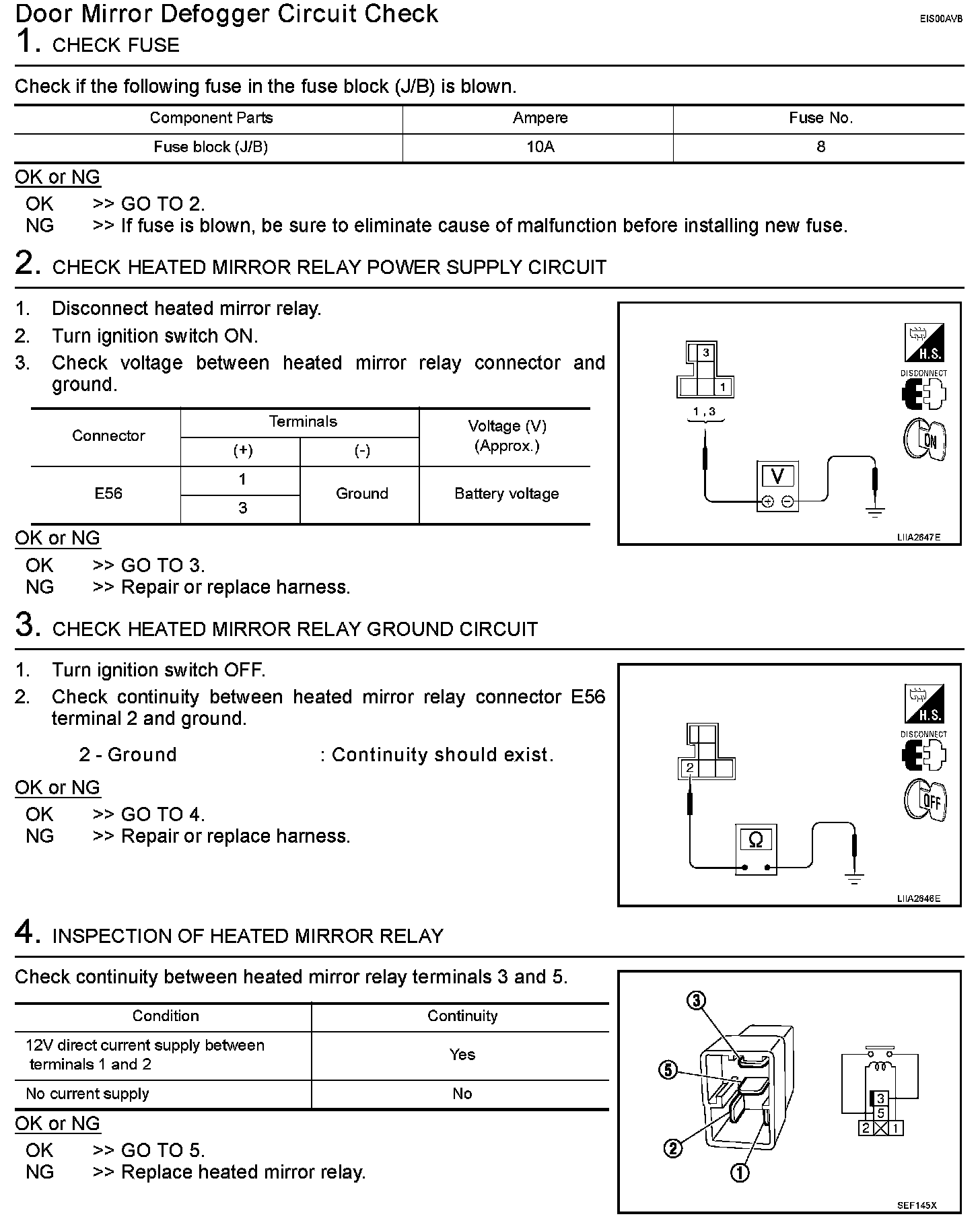

Step 1-4:

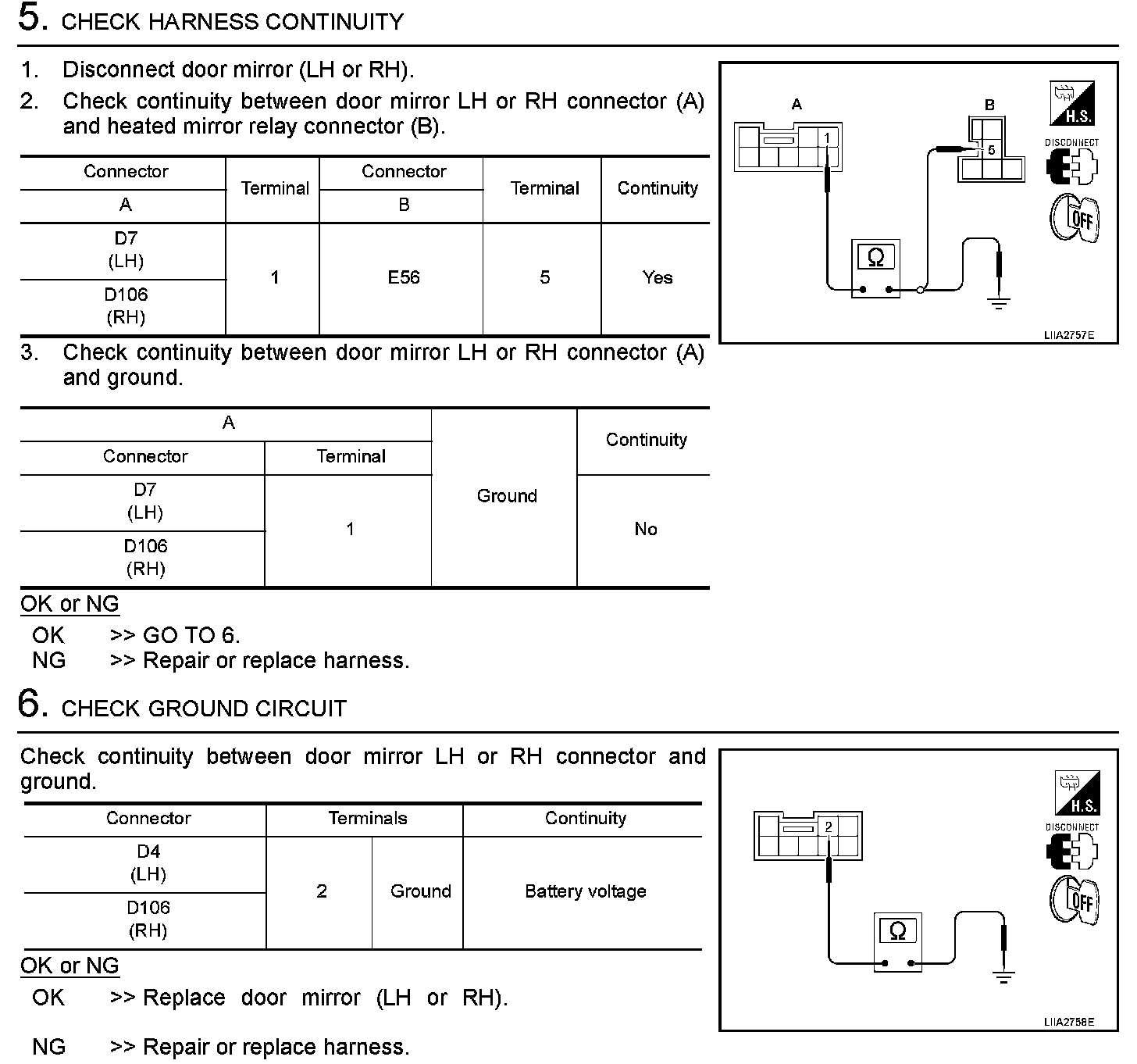

Step 5-6:
