CONSULT-III Reference Value

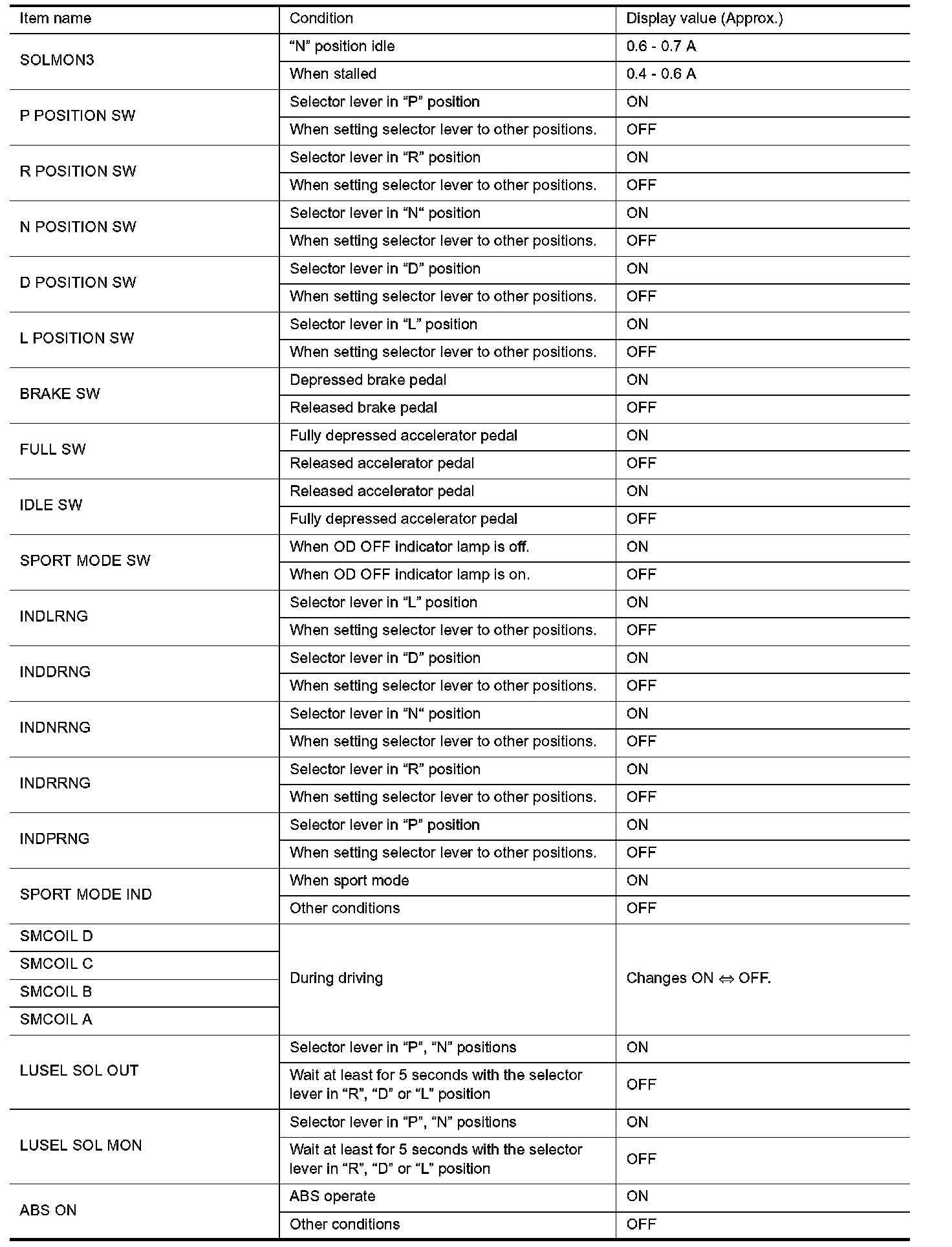

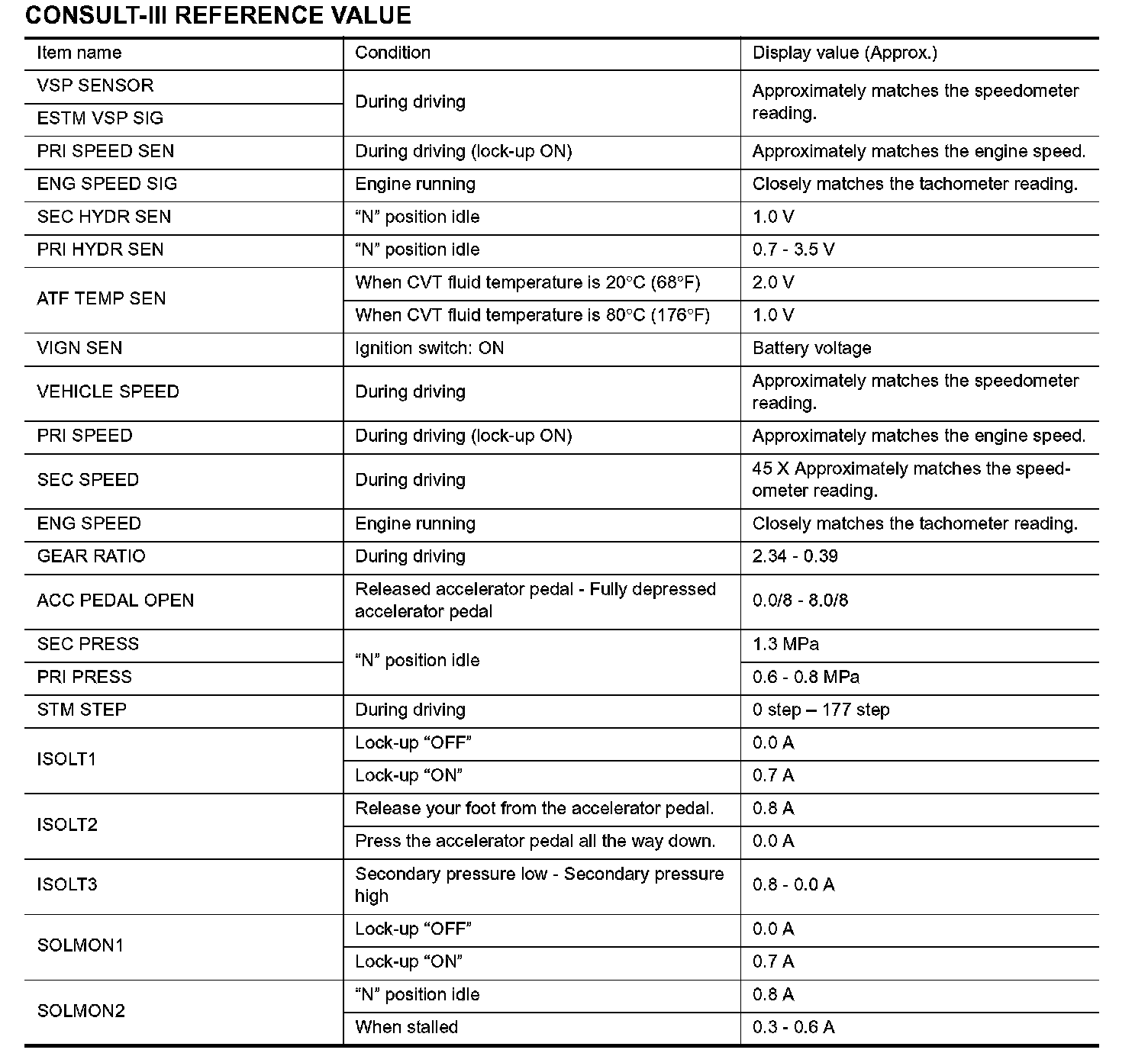

CONSULT-III REFERENCE VALUE (Part 1):



CONSULT-III REFERENCE VALUE (Part 2):

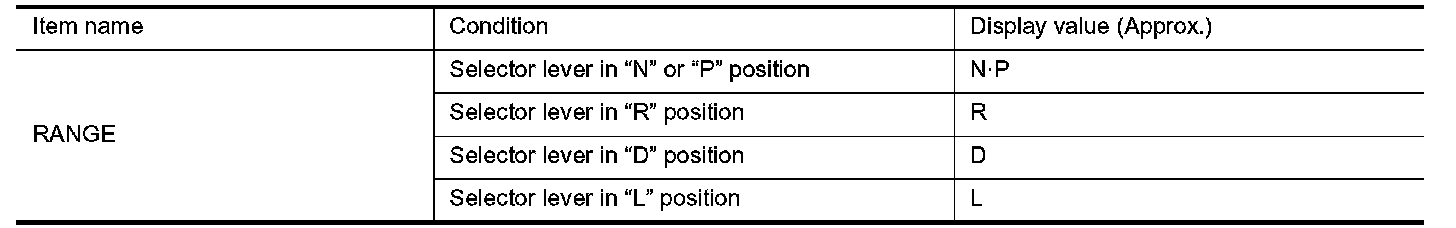

CONSULT-III REFERENCE VALUE (Part 3):
