Park/Neutral Position Switch

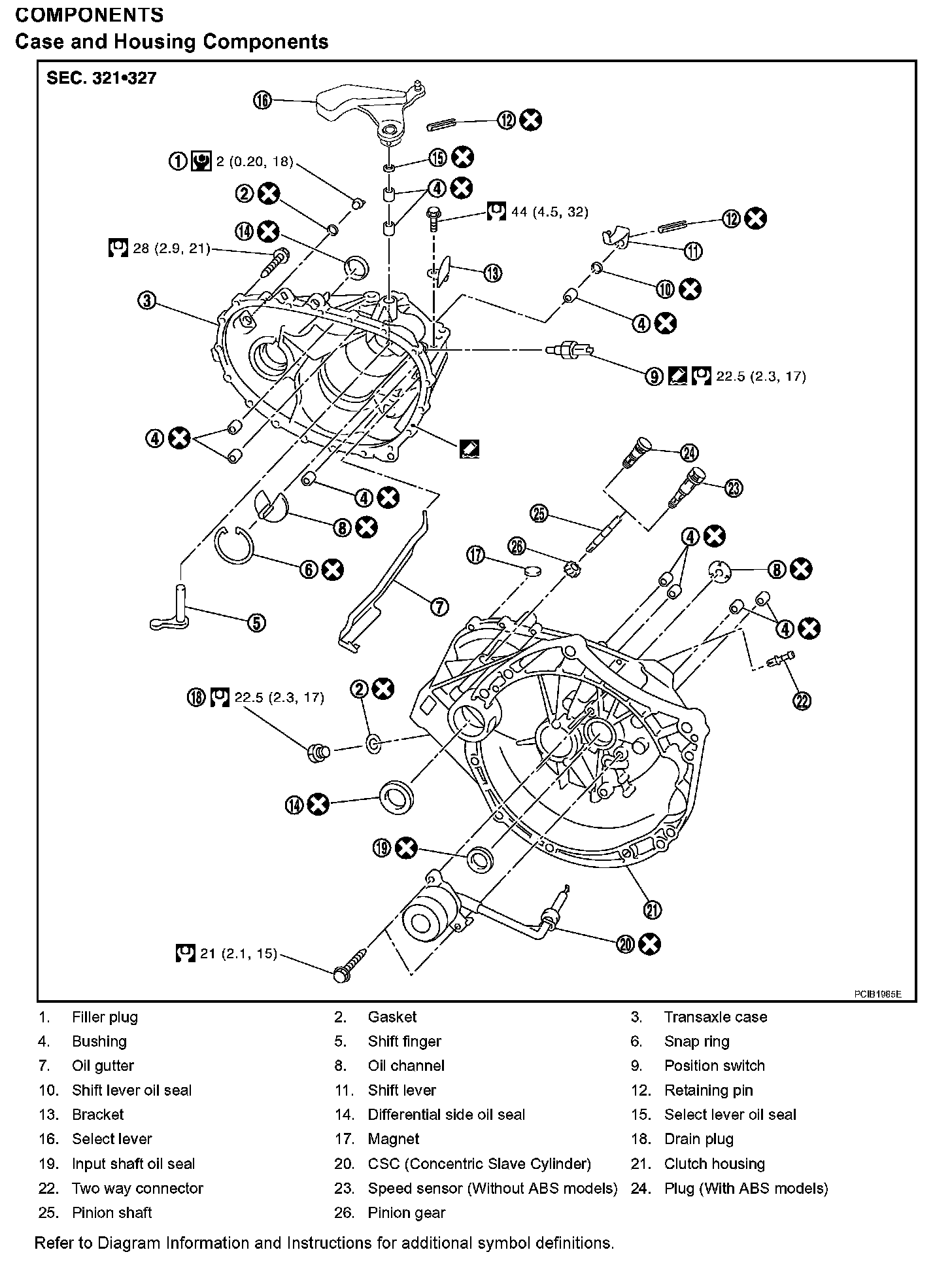

Exploded View MT-19 (Part 1):

Exploded View MT-19 (Part 2):

POSITION SWITCH

Checking

NOTE: For removal and installation of the switches, refer to Exploded View MT-19.

PARK/NEUTRAL POSITION SWITCH

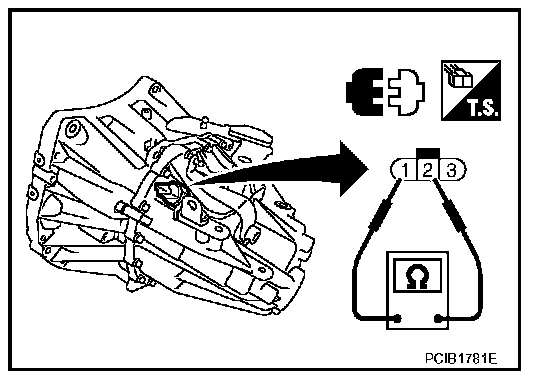

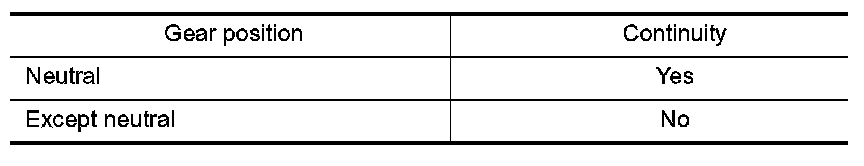

^ Check continuity between terminals 2 and 3.
