Oil Replacement

Exploded View MT-19 (Part 1):

Exploded View MT-19 (Part 2):

Changing M/T Oil
DRAINING
1. Start engine and let it run to warm up transaxle.





2. Stop engine. Remove drain plug (1) and drain oil.
3. Install a new gasket onto drain plug (1) and install it into transaxle. Tighten drain plug to specification. Refer to Exploded View MT-19.

CAUTION: Do not reuse gasket.

FILLING

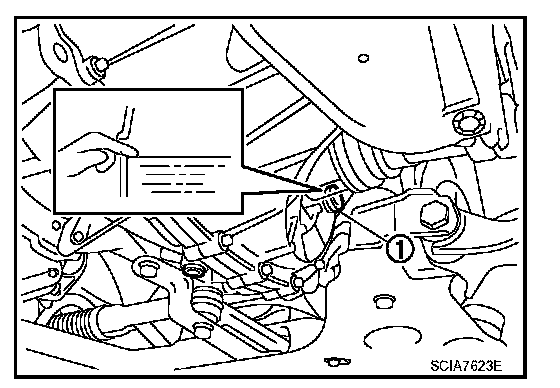

1. Remove filler plug (1). Fill with new oil until oil level reaches the specified limit at filler plug hole as shown.
Oil grade and capacity: Refer to Specifications.
2. After refilling oil, check oil level. Install a new gasket on filler plug (1), then install it into transaxle. Tighten filler plug to specification. Refer to Exploded View MT-19.

CAUTION: Do not reuse gasket.
