Reverse Idler Shaft and Gears

Exploded View MT-20 (Part 1):

Exploded View MT-20 (Part 2):

Exploded View MT-20 (Part 3):

REVERSE IDLER SHAFT AND GEARS

Disassembly and Assembly
DISASSEMBLY

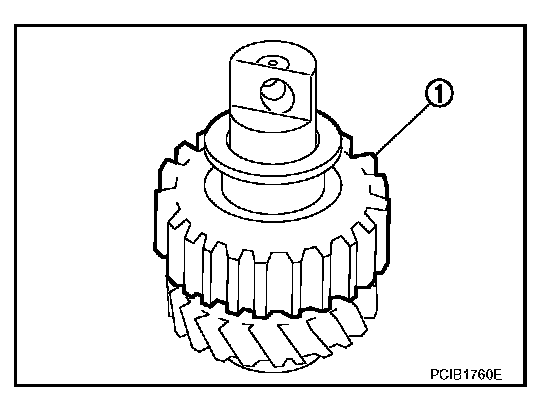

1. Remove reverse output gear (1).

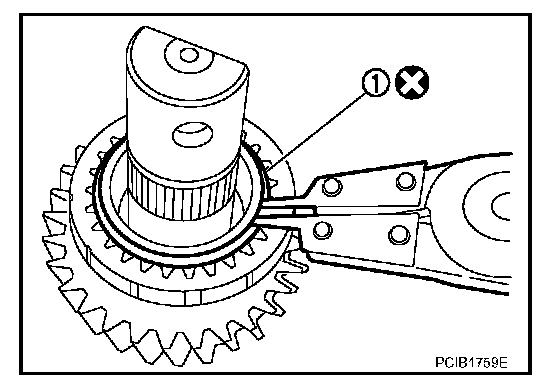

2. Remove snap ring (1).

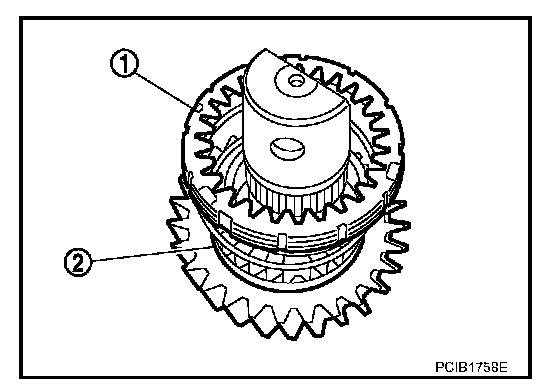

3. Remove reverse baulk ring (1) and return spring (2).

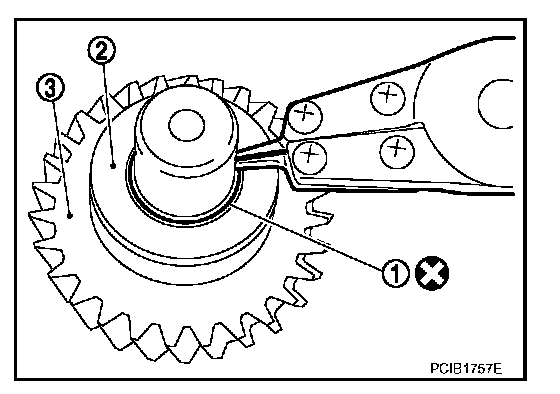

4. Remove snap ring (1), lock washer (2), reverse input gear (3) and washer.

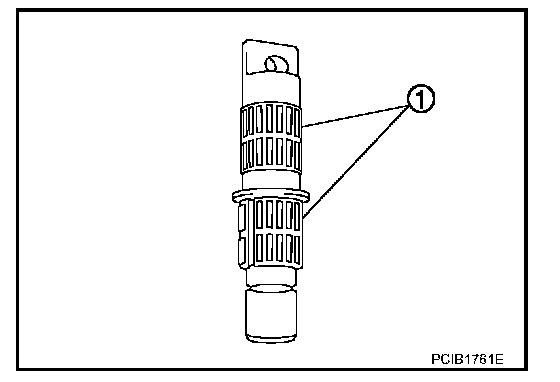

5. Remove needle bearings (1) from reverse idler shaft.
6. Remove washer from reverse idler shaft.

ASSEMBLY
Assembly is in the reverse order of disassembly. Refer to Exploded View MT-20.

CAUTION:
^ Do not reuse snap ring.
^ Make sure that snap ring is securely installed in the groove.
