Assembly Views
>>
Gear Components
Gear Components

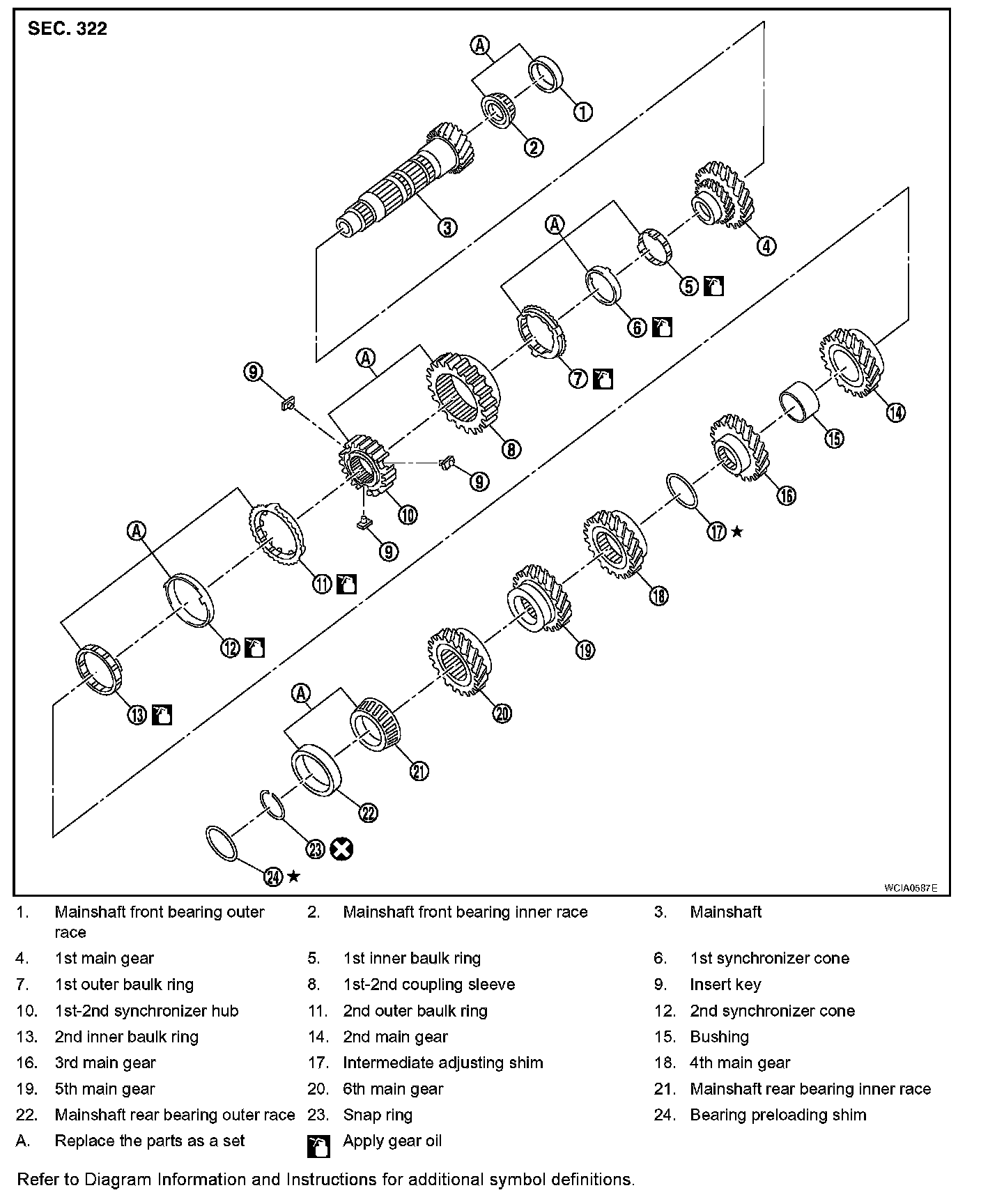

Exploded View MT-20 (Part 1):

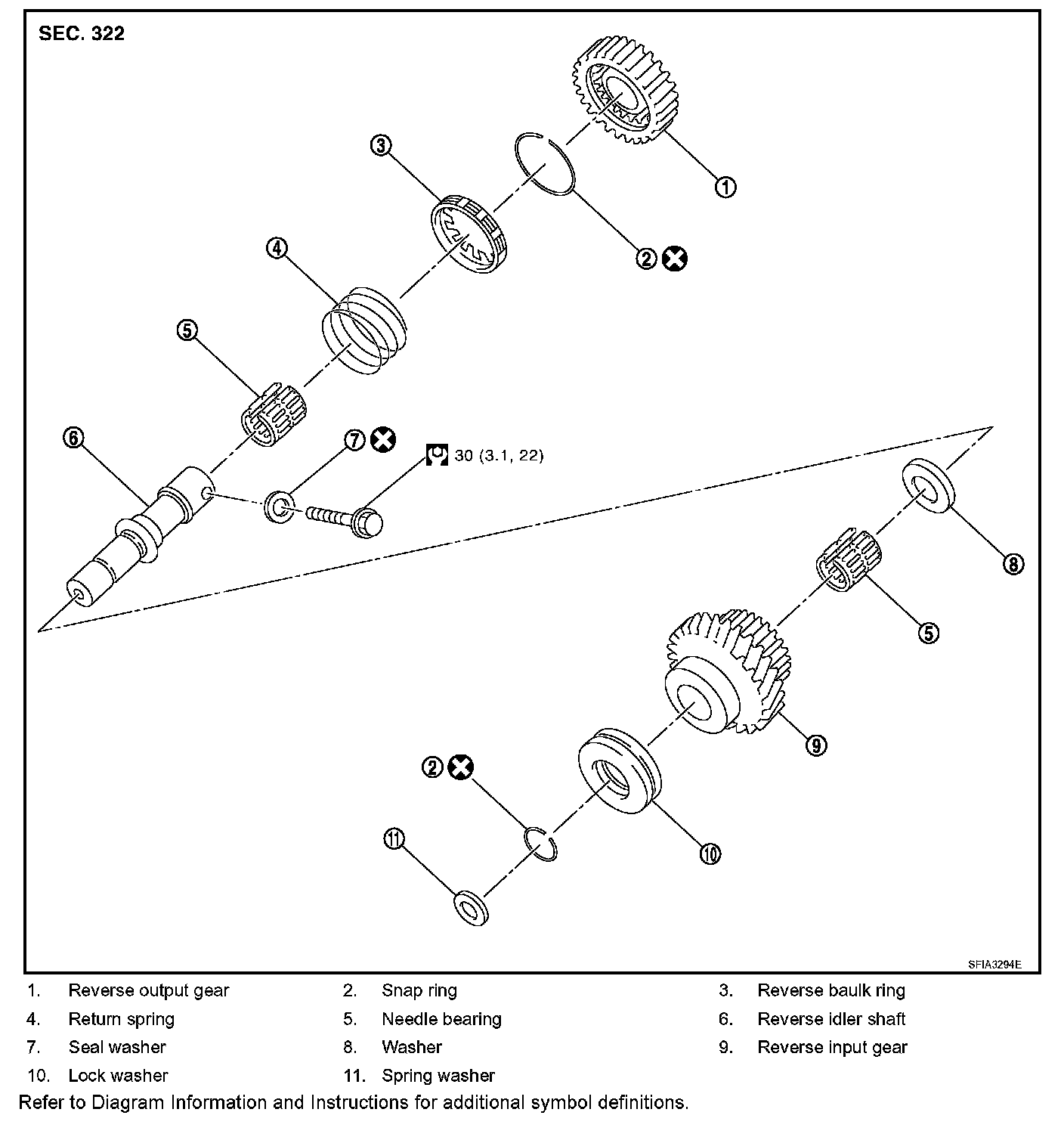

Exploded View MT-20 (Part 2):
Exploded View MT-20 (Part 3):
