Seals and Gaskets: Service and Repair

SIDE OIL SEAL

Removal and Installation

REMOVAL
1. Remove front drive shafts from transaxle assembly.

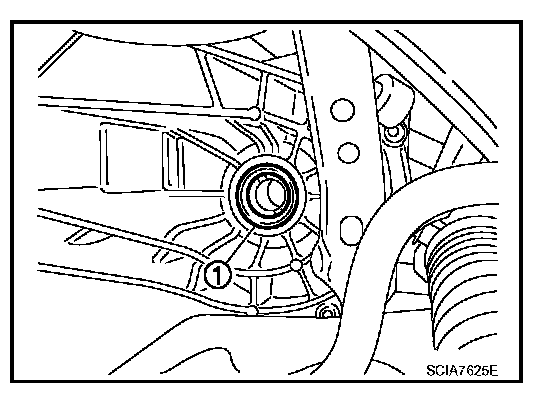

2. Remove differential side oil seal (1) using a suitable tool.

CAUTION: Be careful not to damage transaxle case and clutch housing.

INSTALLATION
Installation is in the reverse order of removal.

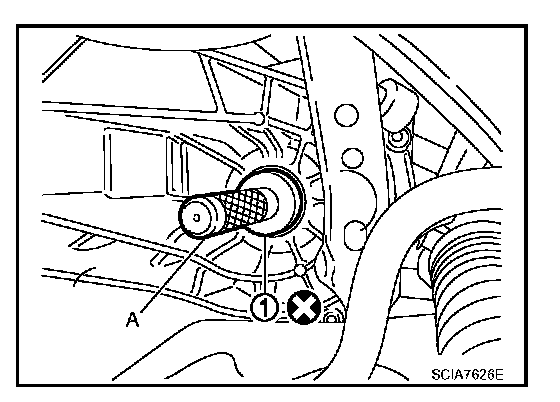

^ Install differential side oil seal (1) to clutch housing and transaxle case using Tool (A).
Tool number A: ST38100300 (J-25523)
^ Check oil level after installation. Refer to MT-11, "Checking M/T Oil".

CAUTION: Do not reuse oil seal.
