Pressure, Vacuum and Temperature Specifications

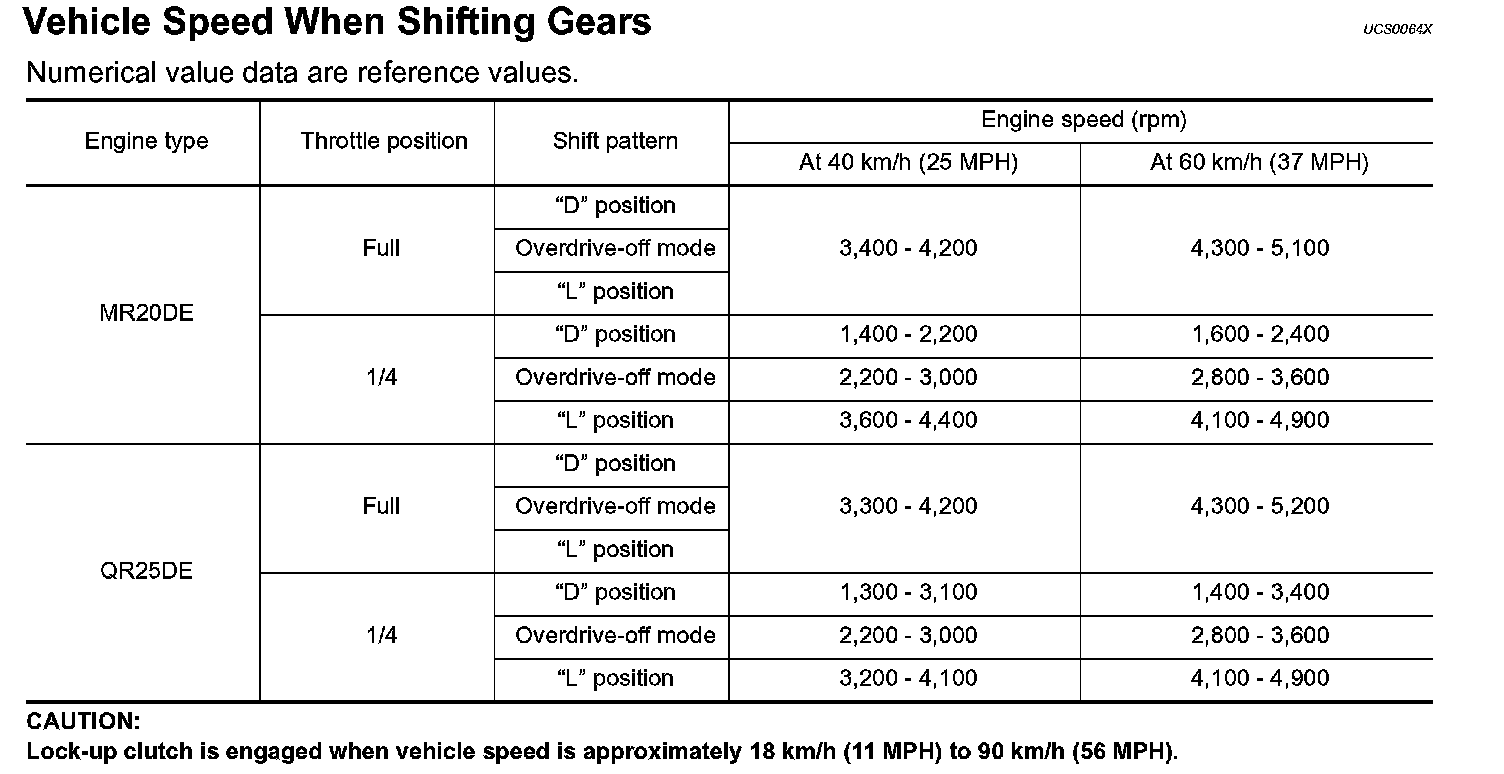

Vehicle Speed When Shifting Gears

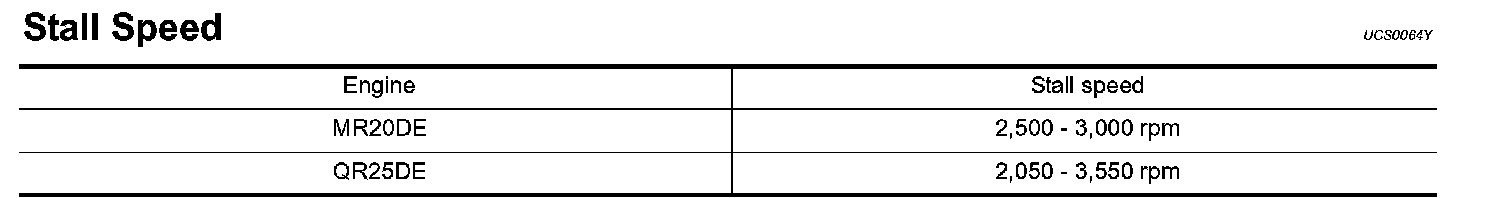

Stall Speed

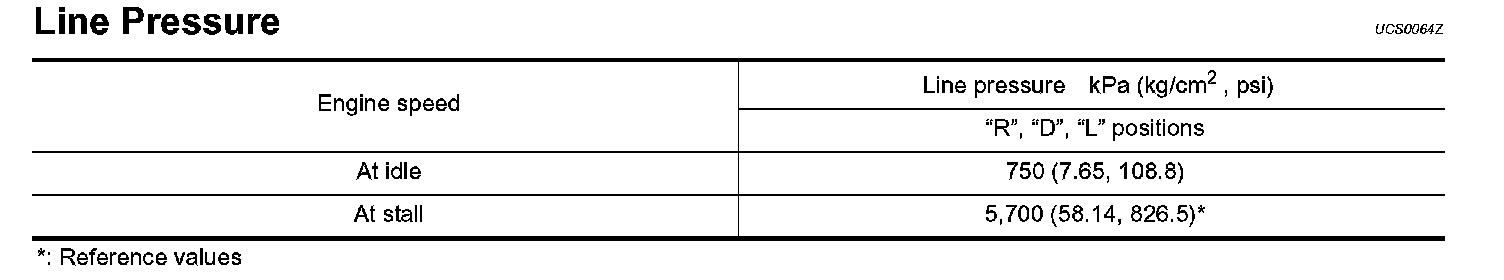

Line Pressure

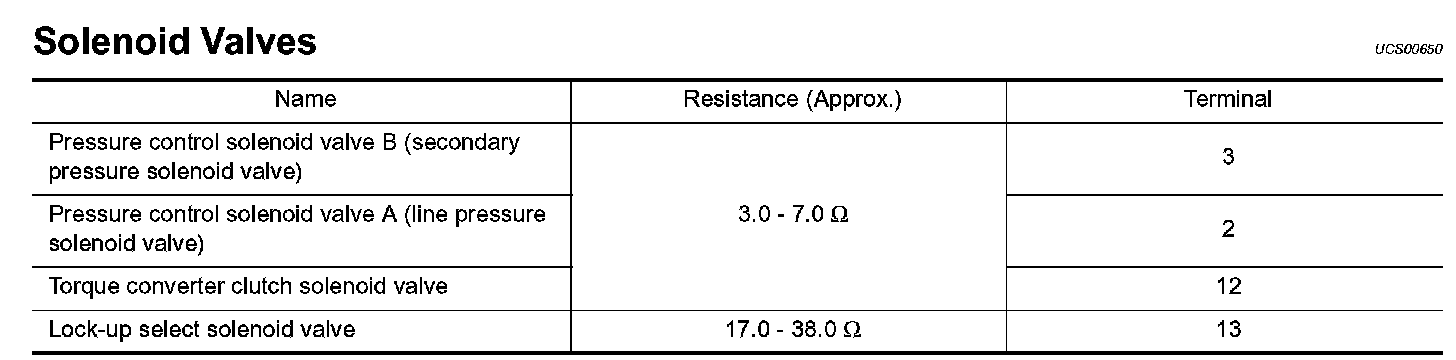

Solenoid Valves

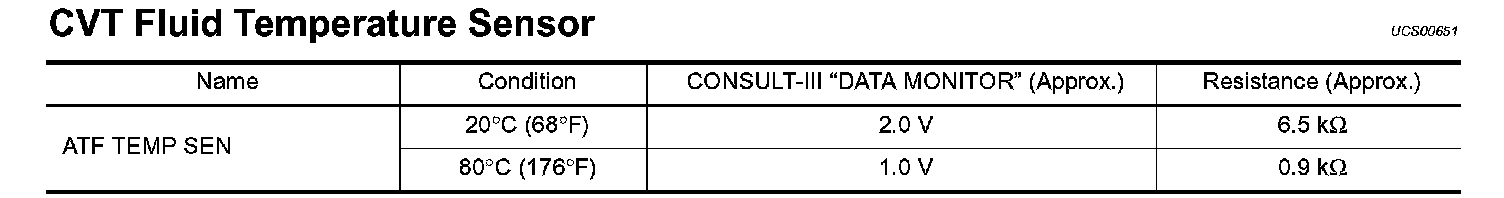

CVT Fluid Temperature Sensor

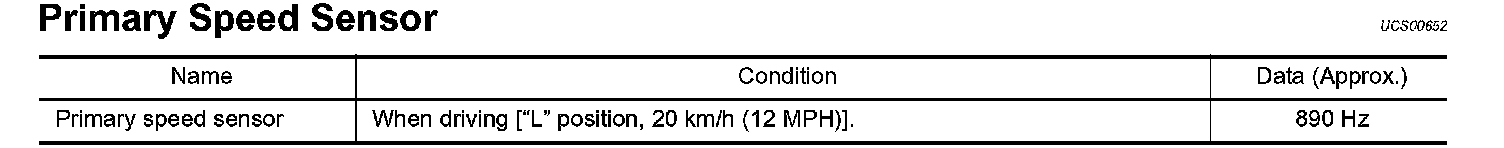

Primary Speed Sensor

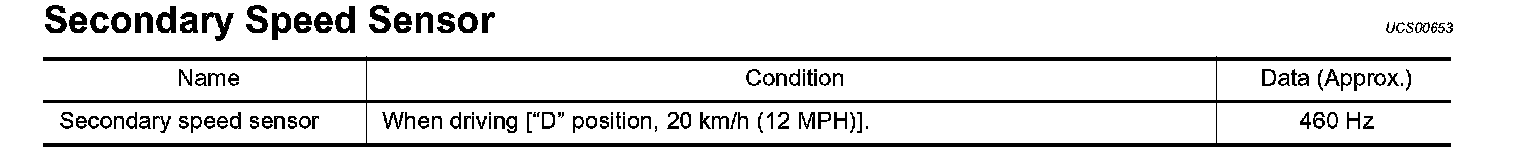

Secondary Speed Sensor
