Shift Interlock: Testing and Inspection

Diagnostic Procedure

SYMPTOM 1:
^ Selector lever cannot be moved from P position with ignition switch in ON position and brake pedal depressed.
^ Selector lever can be moved from P position with ignition key in ON position and brake pedal released.
^ Selector lever can be moved from P position when ignition switch is removed from key cylinder.

SYMPTOM 2:
^ Ignition key cannot be removed when selector lever is set to P position.
^ Ignition key can be removed when selector lever is set to any position except P position.
^ Ignition switch (i-key) cannot be turned when selector lever is set to P position.
^ Ignition switch (i-key can be turned when selector lever is set to any position except P position.

1. CHECK KEY INTERLOCK CABLE
Check key interlock cable for damage.
OK or NG
OK >> GO TO 2.
NG >> Repair key interlock cable.

2. CHECK CVT POSITION
Check CVT position. Refer to CVT-190, "Checking of CVT Position". Checking CVT Fluid
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable.

3. CHECK SHIFT LOCK SOLENOID AND PARK POSITION SWITCH
1. Turn ignition switch ON. (Do not start engine.)
2. Selector lever is set in P position.

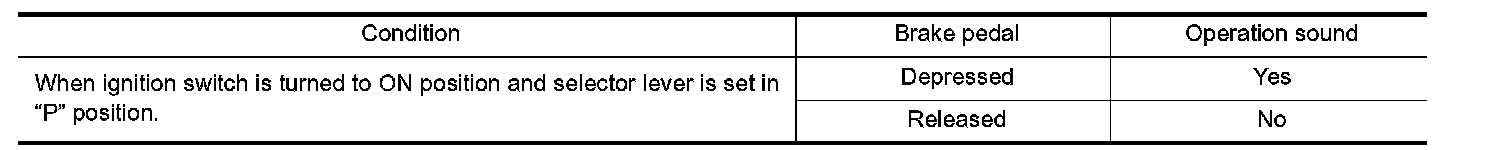

3. Check operation sound.





OK or NG
OK >> INSPECTION END
NG >> GO TO 4.

4. CHECK POWER SOURCE

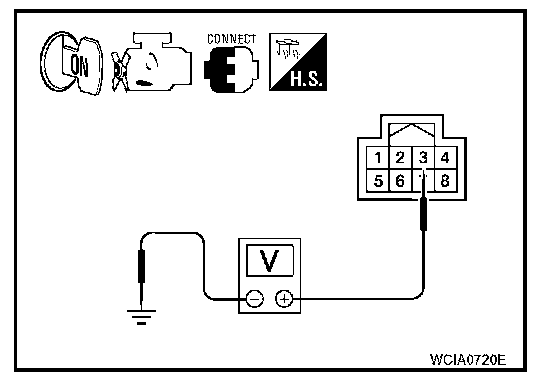

Check voltage between CVT device harness connector M38 terminal 3 and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.

5. DETECT MALFUNCTIONING ITEM
Check the following. If any items are damaged, repair or replace damaged parts.
^ Harness for short or open between ignition switch and CVT device harness connector
^ 10A fuse [No. 12, located in the fuse block (J/B)]
^ Ignition switch
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.

6. CHECK STOP LAMP SWITCH POWER SOURCE





1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector M38.
3. Turn ignition switch ON.

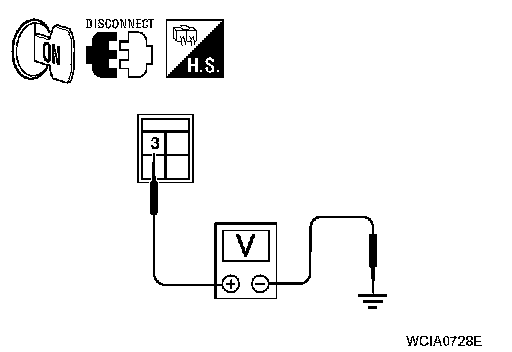

4. Check voltage between stop lamp switch harness connector E60 terminal 3 and ground.
3 - ground: Battery voltage
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.

7. CHECK STOP LAMP SWITCH SUPPLY CIRCUIT





1. Turn ignition switch OFF.
2. Disconnect CVT device harness connector E60.

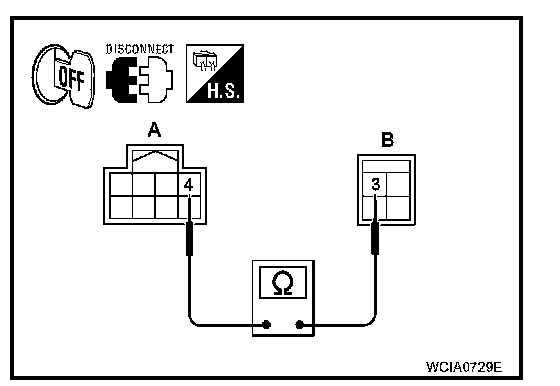

3. Check continuity between stop lamp switch harness connector E60 (B) terminal 3 and CVT device harness connector M38 (A) terminal 4.
Continuity should exist.
OK or NG
OK >> Replace shift lock solenoid assembly.
NG >> Repair or replace harness as necessary.

8. CHECK GROUND CIRCUIT





1. Turn ignition switch OFF.

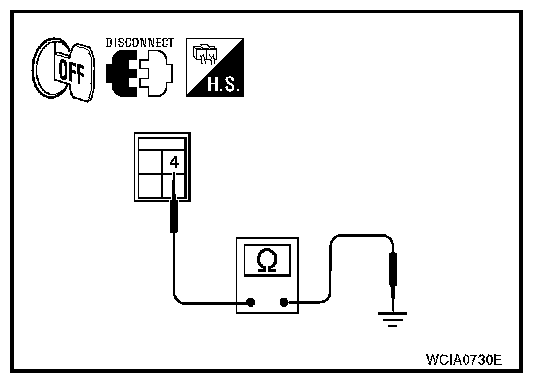

2. Check continuity between stop lamp switch harness connector E60 terminal 4 and ground.
Continuity should exist.
OK or NG
OK >> GO TO 9.
NG >> Repair or replace harness as necessary.

9. CHECK STOP LAMP SWITCH

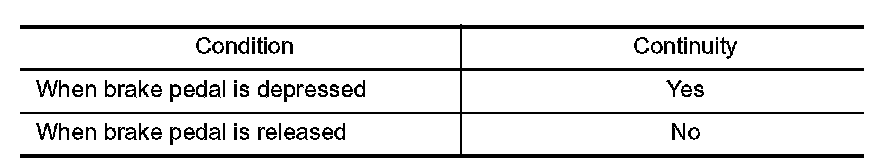

Check continuity between stop lamp switch harness connector terminals 3 and 4.








Check stop lamp switch after adjusting brake pedal.
OK or NG
OK >> INSPECTION END.
NG >> Replace stop lamp switch.
