Secondary Speed Sensor
Secondary Speed Sensor
Secondary
Speed Sensor

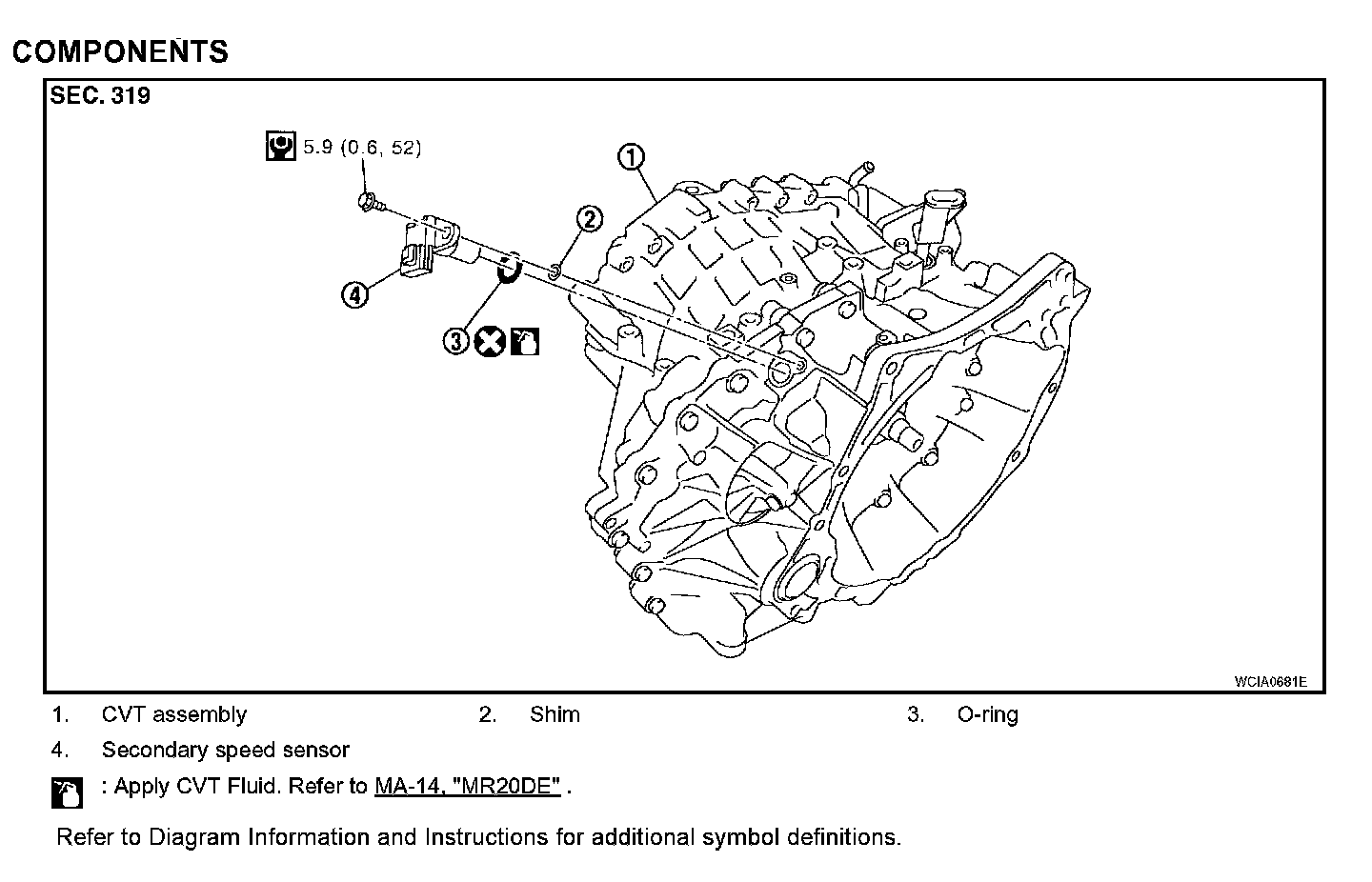

Exploded View CVT-197:
CAUTION:
^
Do not reuse O-ring.
^
Apply CVT fluid to O-ring.
^
Insert the shim.
^
After installation is complete, check for CVT fluid leakage and CVT fluid level.
