Primary Speed Sensor

Primary Speed Sensor

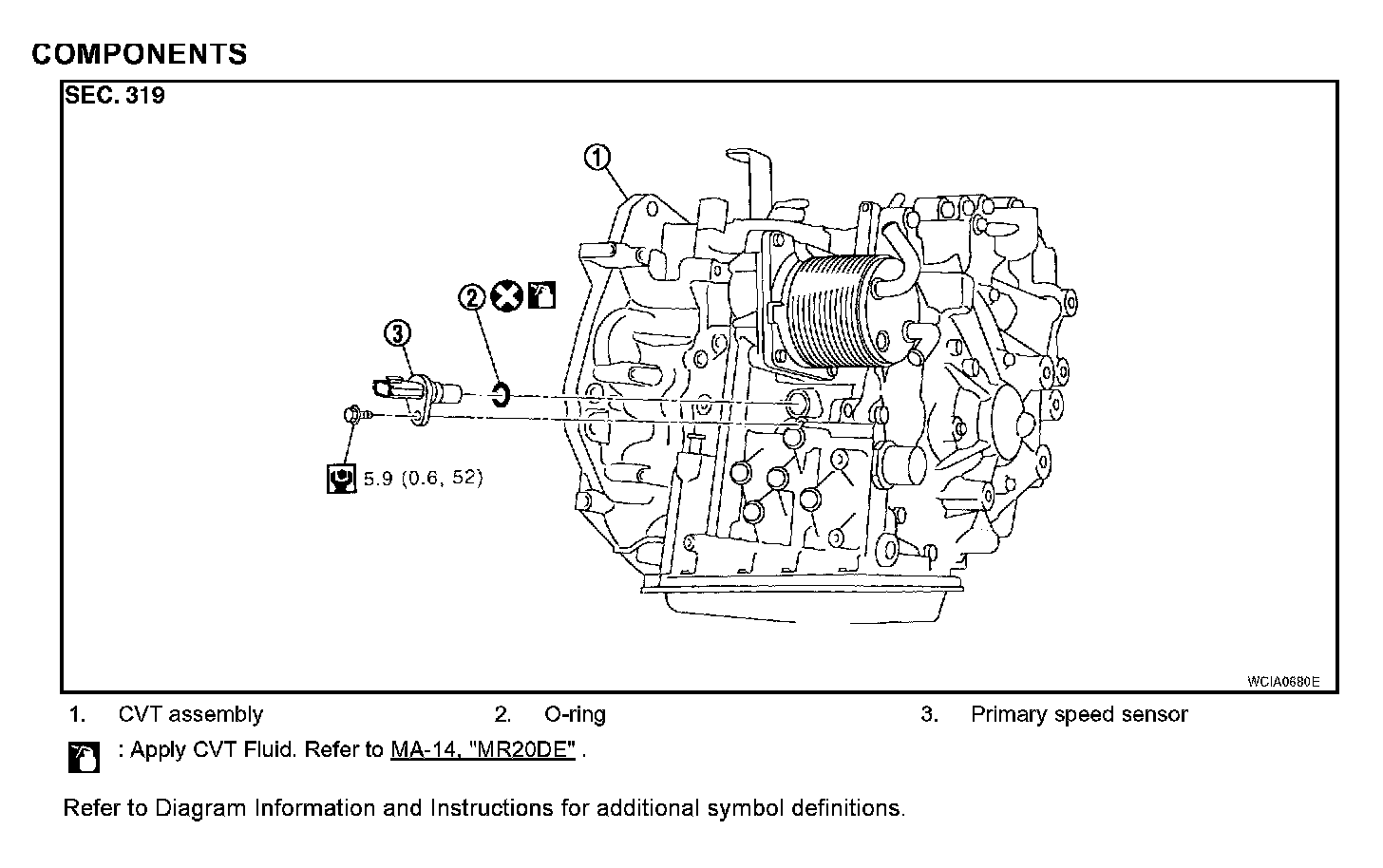

Exploded View CVT-196:





CAUTION:
^ Do not reuse O-ring.
^ Apply CVT fluid to O-ring.
^ After installation is complete, check for CVT fluid leakage and CVT fluid level.
