Seals and Gaskets: Service and Repair

Differential Side Oil Seal

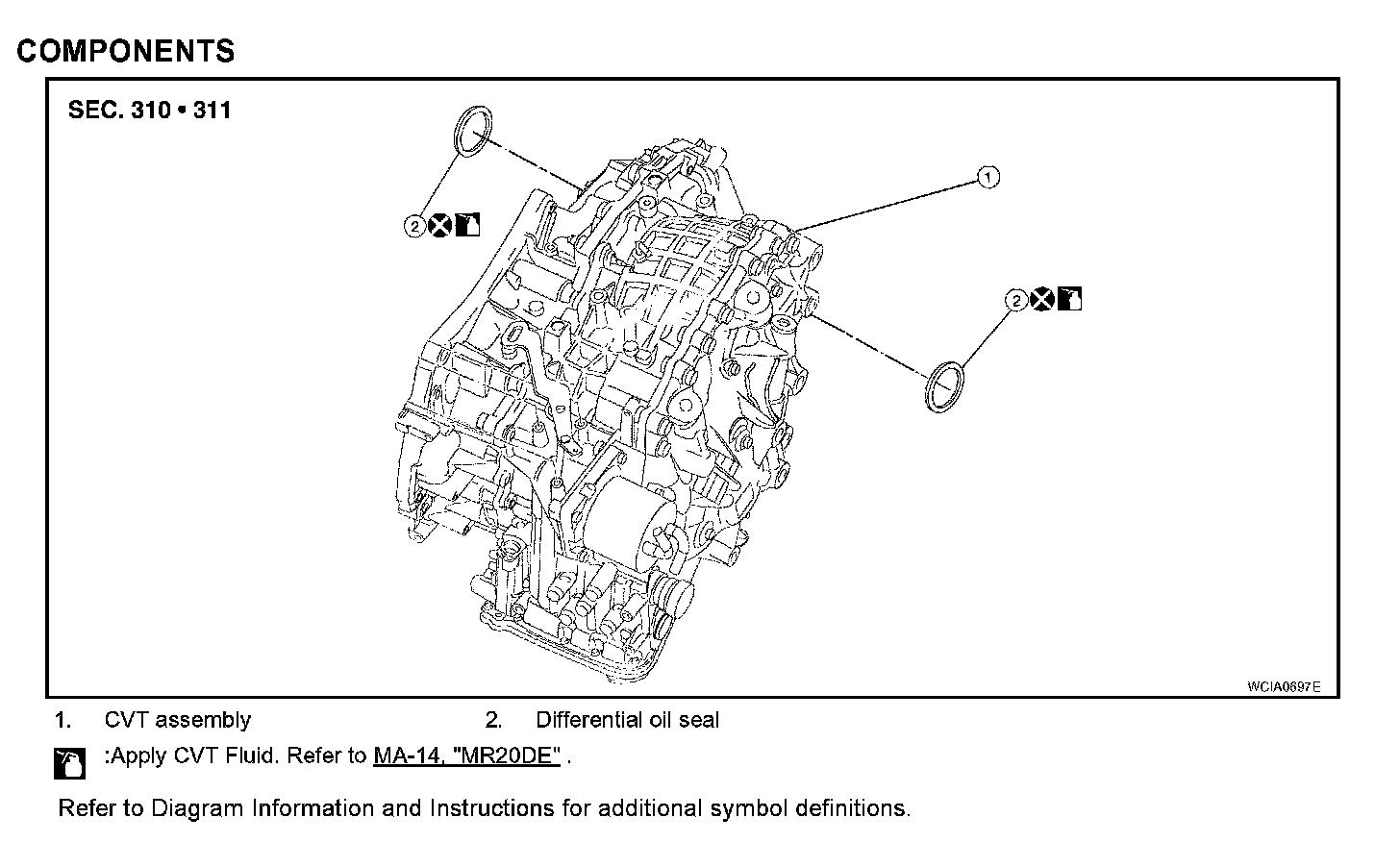

Exploded View CVT-198:

REMOVAL
1. Remove front drive shaft from CVT assembly.

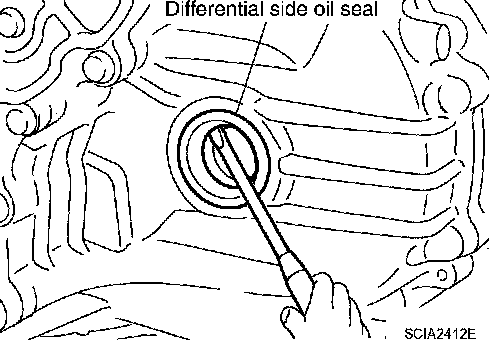

2. Remove differential side oil seal using suitable tool.

CAUTION: Do not scratch CVT case or converter housing.

INSTALLATION
1. Drive the new differential side oil seal in until it is flush using tool.
Tool number: KV38100300 ( - )

CAUTION:
^ Do not reuse differential side oil seals.
^ Apply CVT fluid to the new differential side oil seals.

2. Install drive shaft assembly.
3. Check for CVT fluid leakage and CVT fluid level.
