Fluid Pump: Service and Repair

Oil Pump Fitting Bolt

NOTE: Replace the oil pump fitting bolt and the O-ring if oil leaks or exudes from the oil pump fitting bolt.

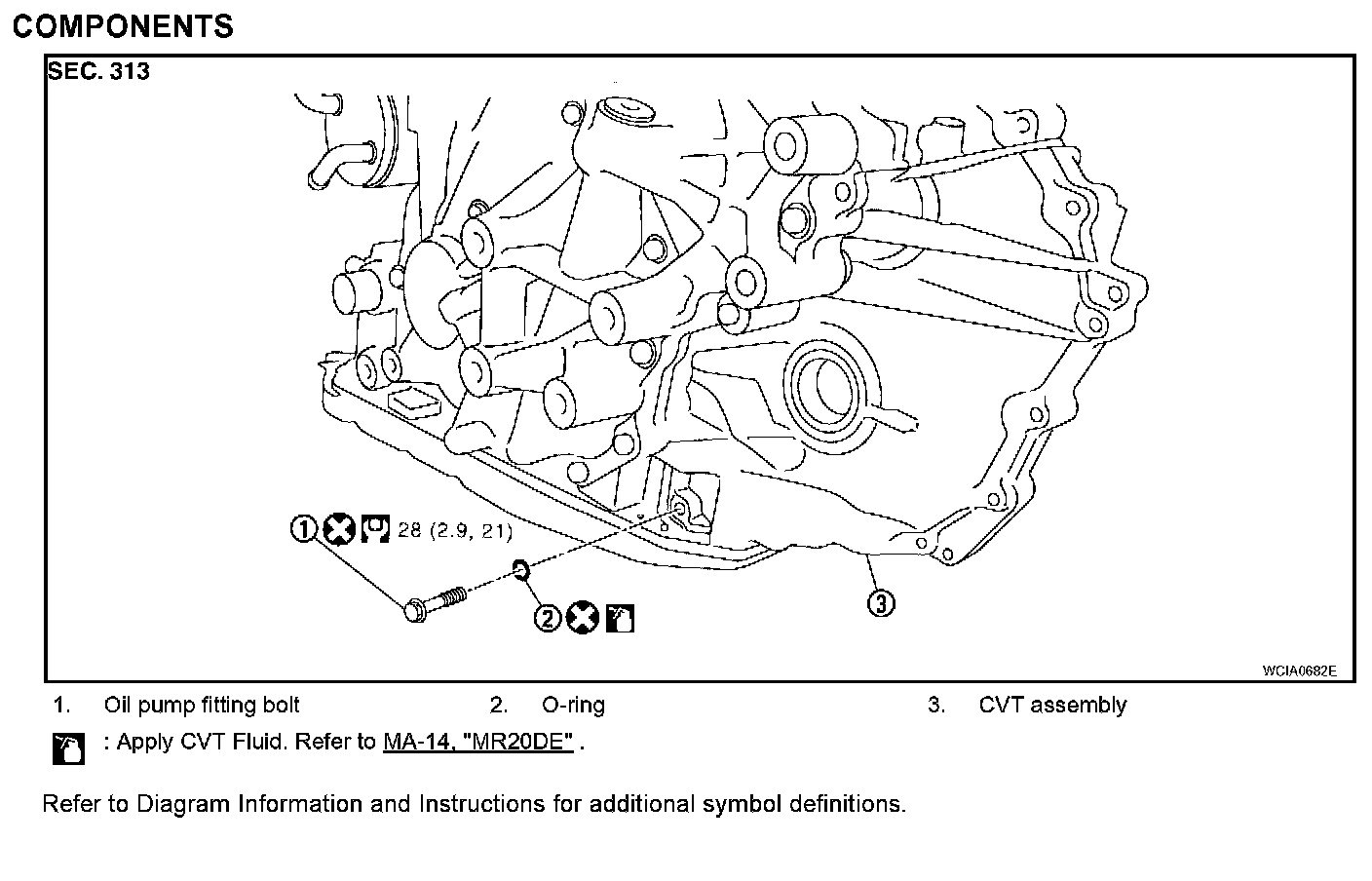

Exploded View CVT-199:

CAUTION:
^ Do not reuse O-ring.
^ Apply CVT fluid to O-ring.
^ After installation is complete, check for CVT fluid leakage and CVT fluid level.
