Removal and Installation

Removal and Installation

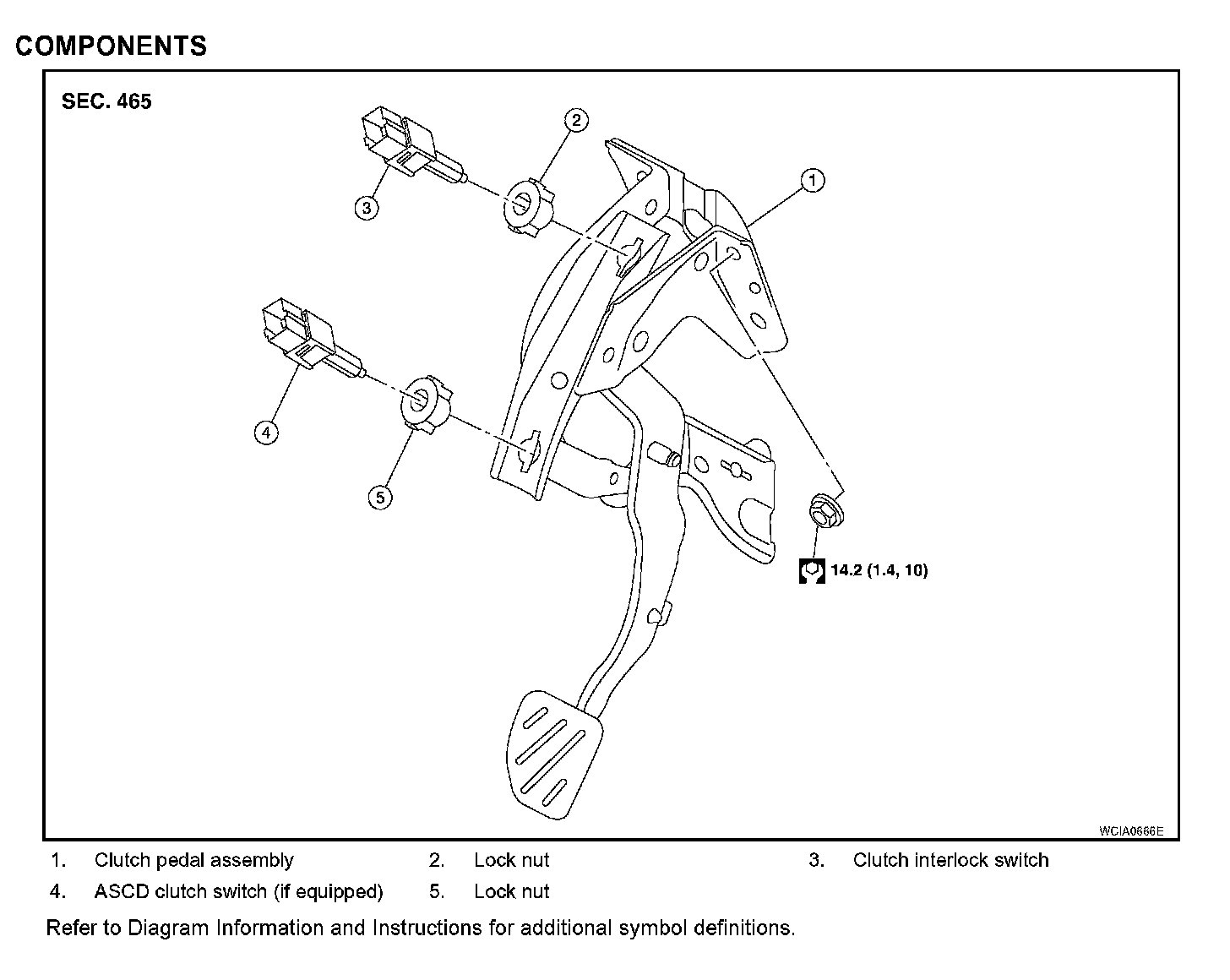

Exploded View CL-7:

REMOVAL
1. Remove instrument panel lower finisher.
2. Remove front upper floor duct.
3. Disconnect ASCD clutch switch harness connector (if equipped).

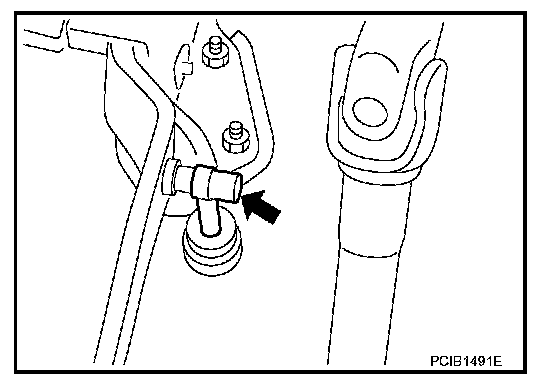

4. Disconnect master cylinder rod end from clutch pedal lever.
5. Remove clutch pedal assembly nuts, and then remove clutch pedal assembly.
6. Disconnect clutch interlock switch harness connector.

INSTALLATION
Installation is in the reverse order of removal.
^ After installing the clutch switches, adjust the switch positions.
