Hydraulic Hose: Service and Repair

CLUTCH PIPING

Removal and Installation

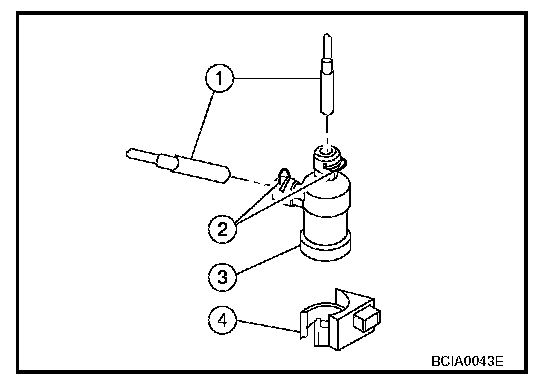

Exploded View CL-12:

Carefully observe the following steps during clutch tube removal and installation.

CAUTION: Do not spill clutch fluid onto painted surfaces. If it spills, wipe up immediately and wash the affected area with water.

REMOVAL
1. Remove the battery.
2. Remove the air cleaner and air duct.
3. Remove clutch tube lock pin from clutch master cylinder, if necessary.
4. Remove clutch tube lock pin at clutch housing, if necessary.





5. Remove clutch tube lock pins (2) from clutch damper (3).
6. Remove clutch tubes (1) from clutch damper (3).
7. Remove clutch damper (3) from bracket (4).

INSTALLATION
Installation is in the reverse order of removal.
^ Make sure that all tubes are fully installed into connectors.
^ Make sure that all connector lock pins are fully installed.
^ After installation, bleed the air from the clutch hydraulic system.
