Removal and Installation

CLUTCH DISC, CLUTCH COVER AND FLYWHEEL

Removal and Installation

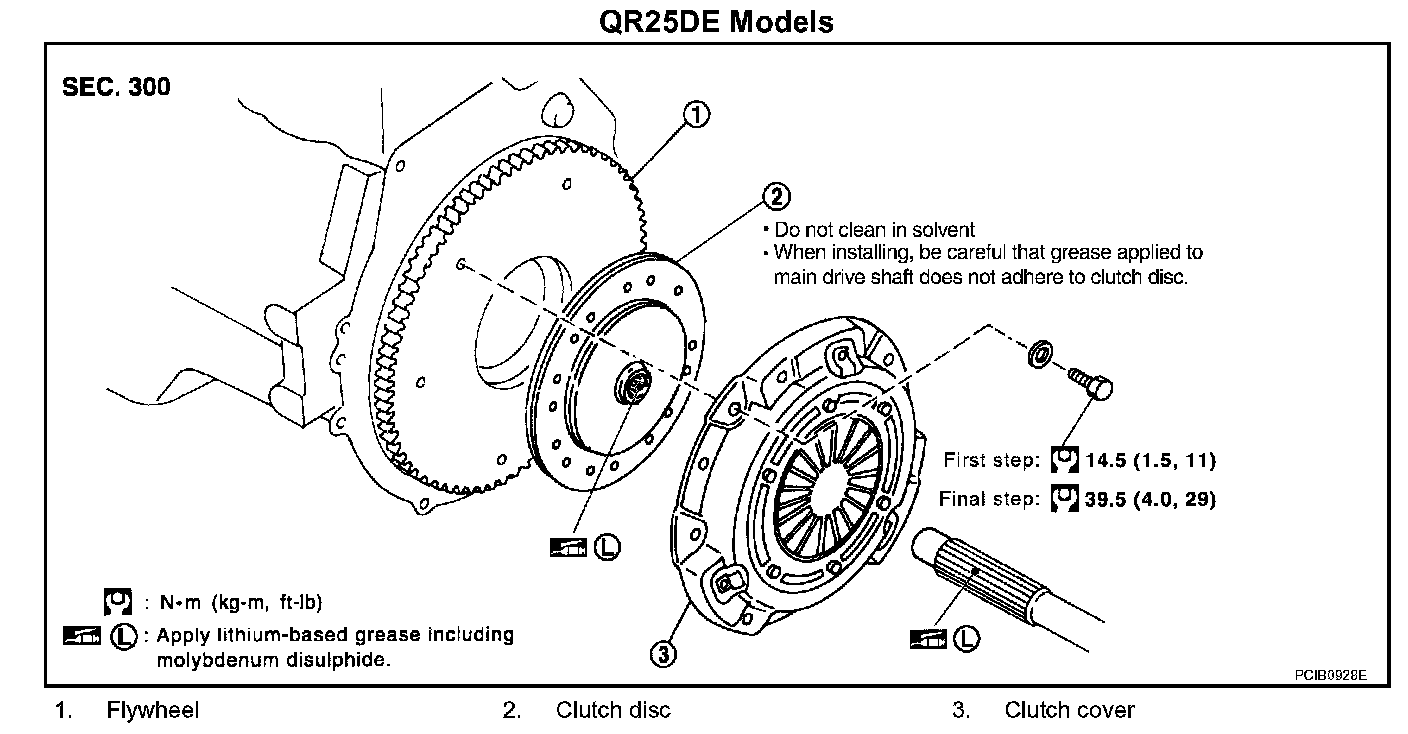

Exploded View CL-13 (Part 1):

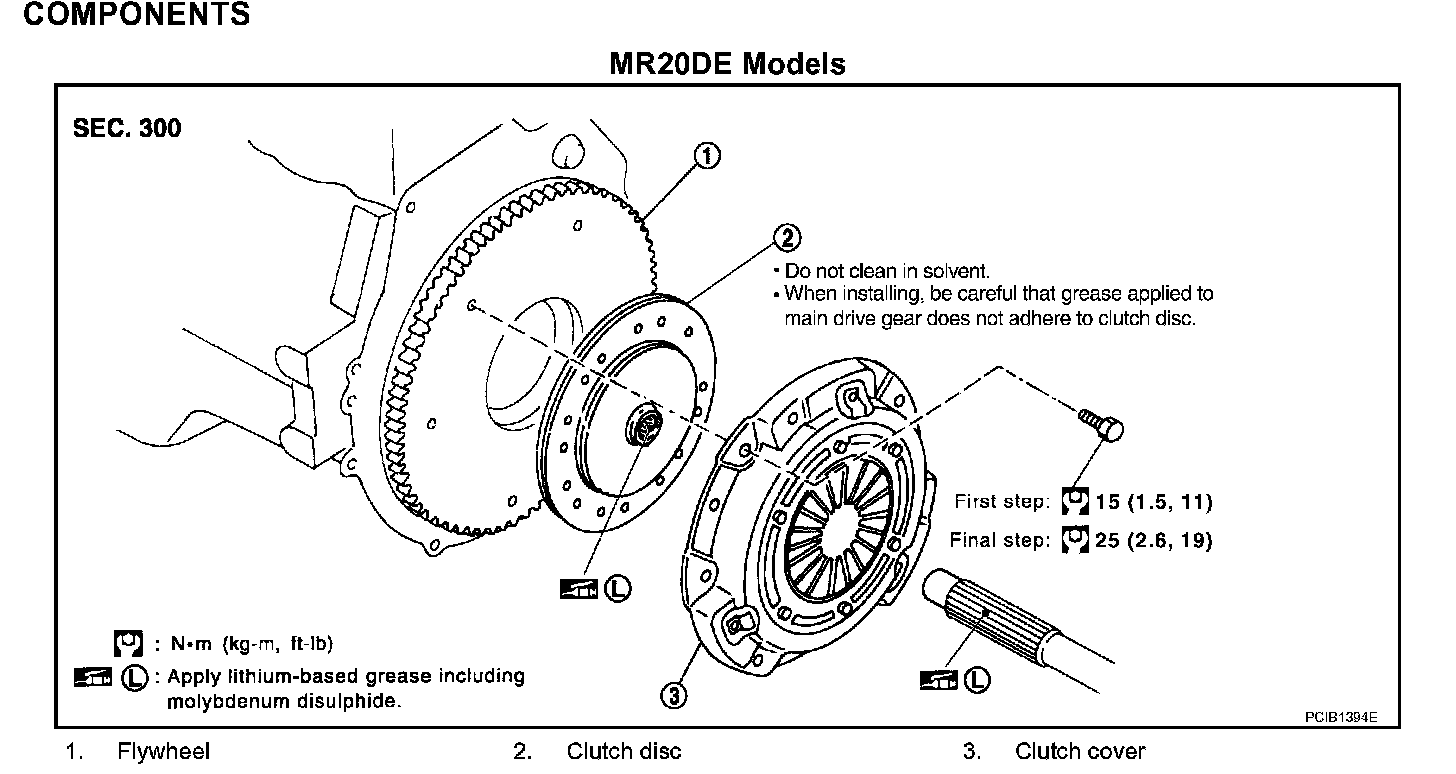

Exploded View CL-13 (Part 2):

CAUTION:
^ If transaxle assembly is removed from the vehicle, always replace CSC (Concentric slave cylinder). Return CSC insert to original position to remove transaxle assembly. Dust on clutch disc sliding parts may damage CSC seal and may cause clutch fluid leakage.
^ Be careful not to apply any grease to the clutch disc facing, pressure plate surface and flywheel surface.

REMOVAL
1. Remove transaxle assembly from the vehicle.
2. Loosen clutch cover bolts evenly. Then remove clutch cover and clutch disc.

INSTALLATION
1. Clean clutch disc and input shaft splines to remove grease and dust caused by abrasion.
2. Apply recommended grease to clutch disc and input shaft splines.

CAUTION: Be sure to apply grease to the points specified. Otherwise, noise, poor disengagement, or damage to the clutch may result. Excessive grease may cause slip or shudder. If it adheres to CSC seal, it will cause clutch fluid leakage. Wipe off excess grease.

3. Install clutch disc using tool.
Tool number: KV30101000 ( - )
4. Install clutch cover. Pre-tighten clutch cover bolts.

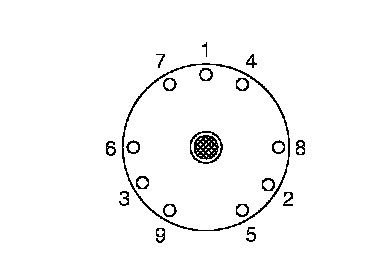

5. Tighten clutch cover bolts evenly in two steps in the order shown. Refer to Exploded View CL-13.
6. Install transaxle assembly.
