With Manufacturer's Scan Tool

CONSULT-III CHECKING SYSTEM

Description
- When the CONSULT-III is connected with a data link connector equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.
- Refer to "CONSULT-III Software Operation Manual" for more information.

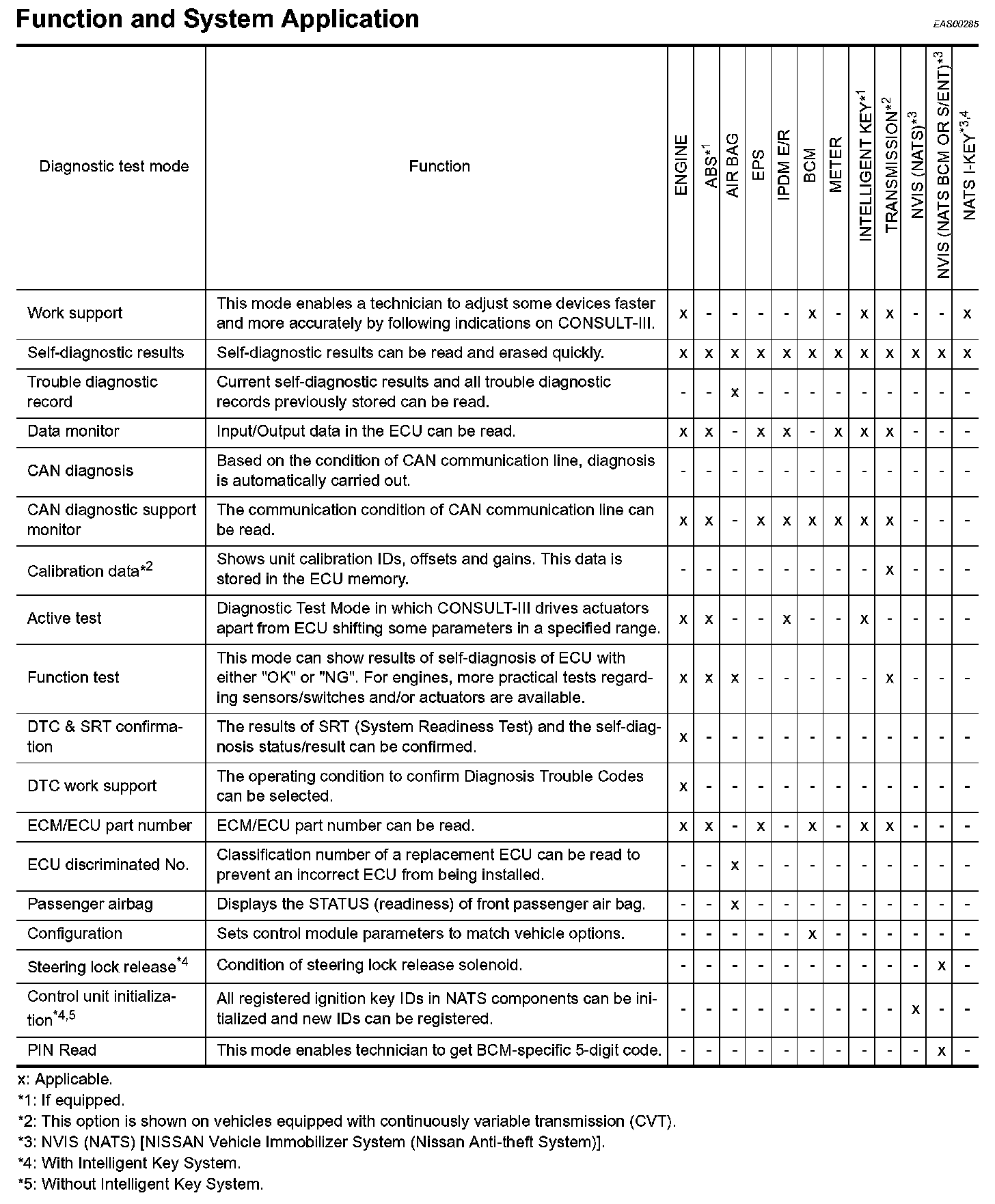

Function and System Application

CONSULT-III Data Link Connector (DLC) Circuit:

CONSULT-III Data Link Connector (DLC) Circuit

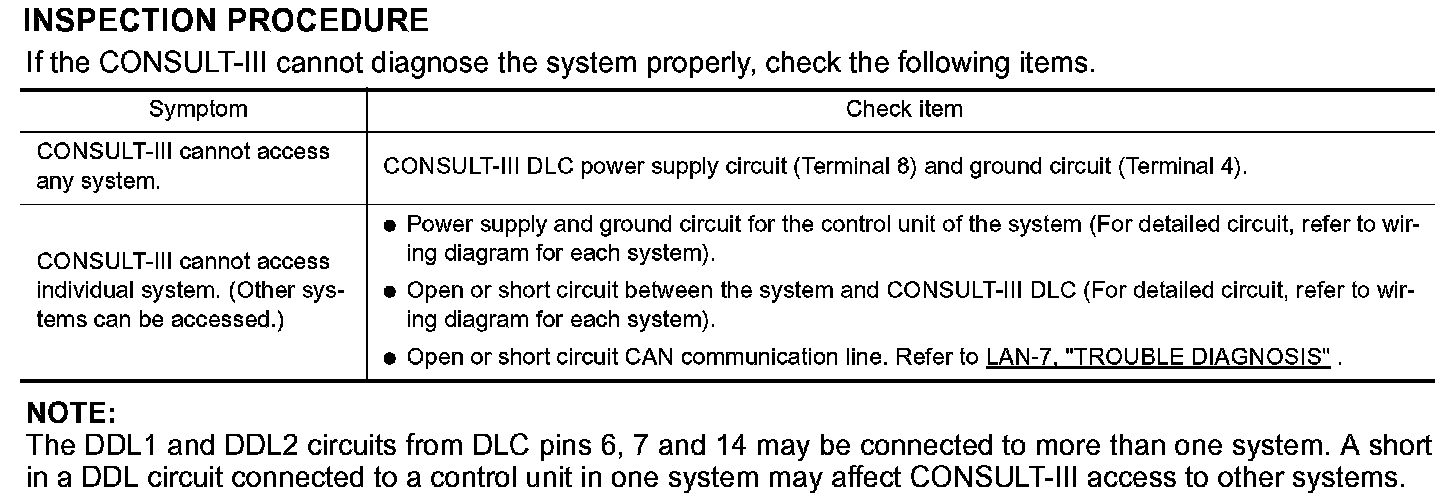

INSPECTION PROCEDURE
